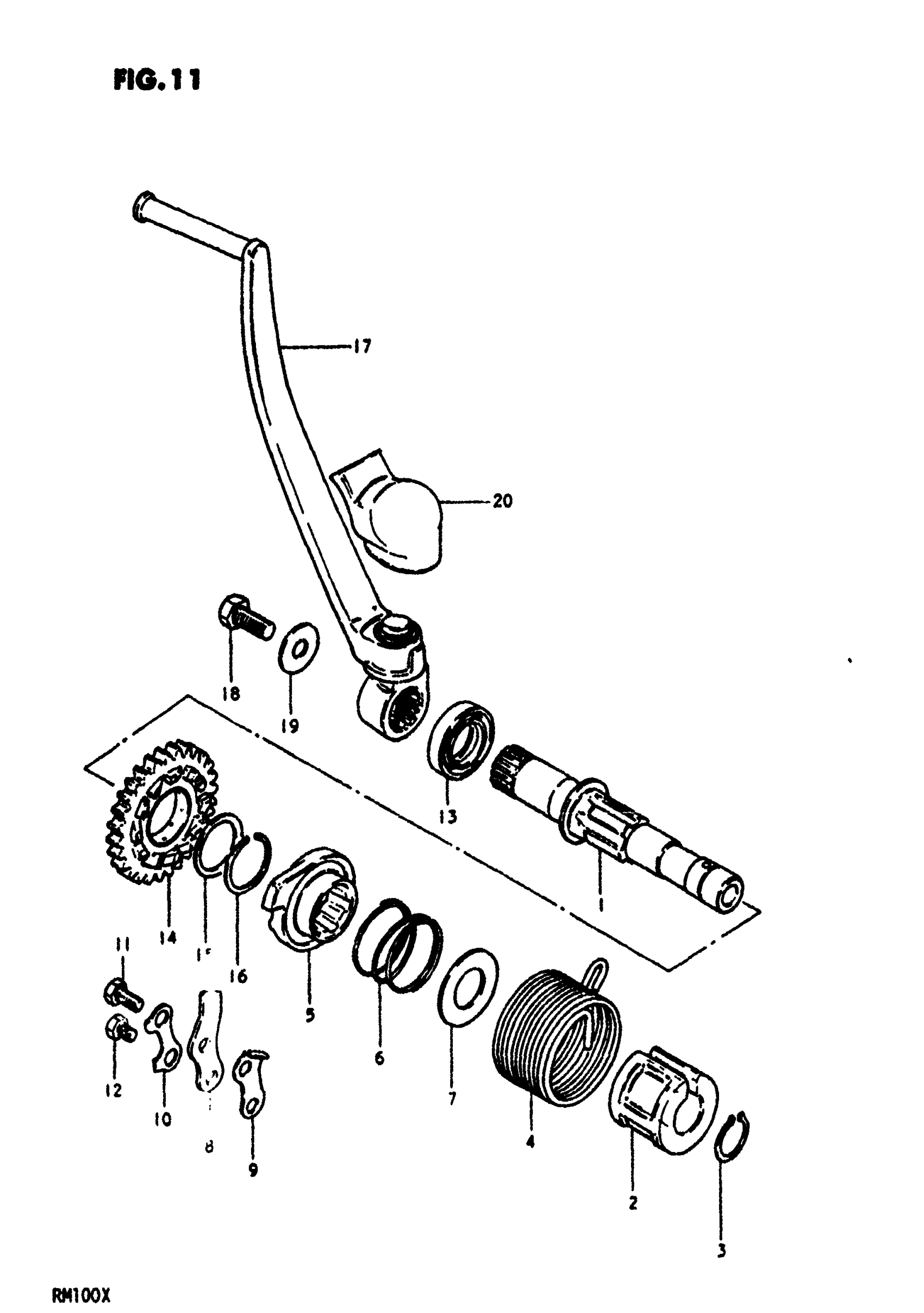

Suzuki RM100 (1981) KICK STARTER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 26211-40200.

26211-40202

Unavailable

2

GUIDE, SPRING

26221-41100

$8.28

3

CIRCLIP

09380-17001

$1.98

4

SPRING

09448-45008

$6.99

5

STARTER, KICK | MODEL N,T This part replaces 26231-30001.

26231-22A10

$63.88

5

STARTER, KICK | MODEL X This part replaces 26231-30002.

26231-22A10

$63.88

6

SPRING

09440-32002

$2.27

7

PLATE

08211-17342

$2.72

8

GUIDE, STARTER

26232-40200

$7.08

9

STOPPER, KICK STARTER This part replaces 26233-40200.

26233-40201

$5.52

10

WASHER

09169-06003

$1.78

11

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

12

BOLT This part replaces 01107-06108.

01500-06107

$2.06

13

OIL SEAL

09283-20031

$5.24

14

GEAR, KICK DRIVE (NT:28) | MODEL N,T This part replaces 26240-40200.

26240-40201

Unavailable

14

GEAR, KICK DRIVE (NT:28) | MODEL X

26240-40201

Unavailable

15

WASHER (22X28X1.0) This part replaces 08211-22281.

09181-22139

$3.48

16

CIRCLIP

09380-22006

$3.10

17

LEVER ASSY,KICK This part replaces 26300-40203.

26300-28E21

$263.67

18

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

19

WASHER

09160-08048

Unavailable

20

COVER,KICK STAR This part replaces 26341-41100.

26341-41102

$7.54
