Partiron

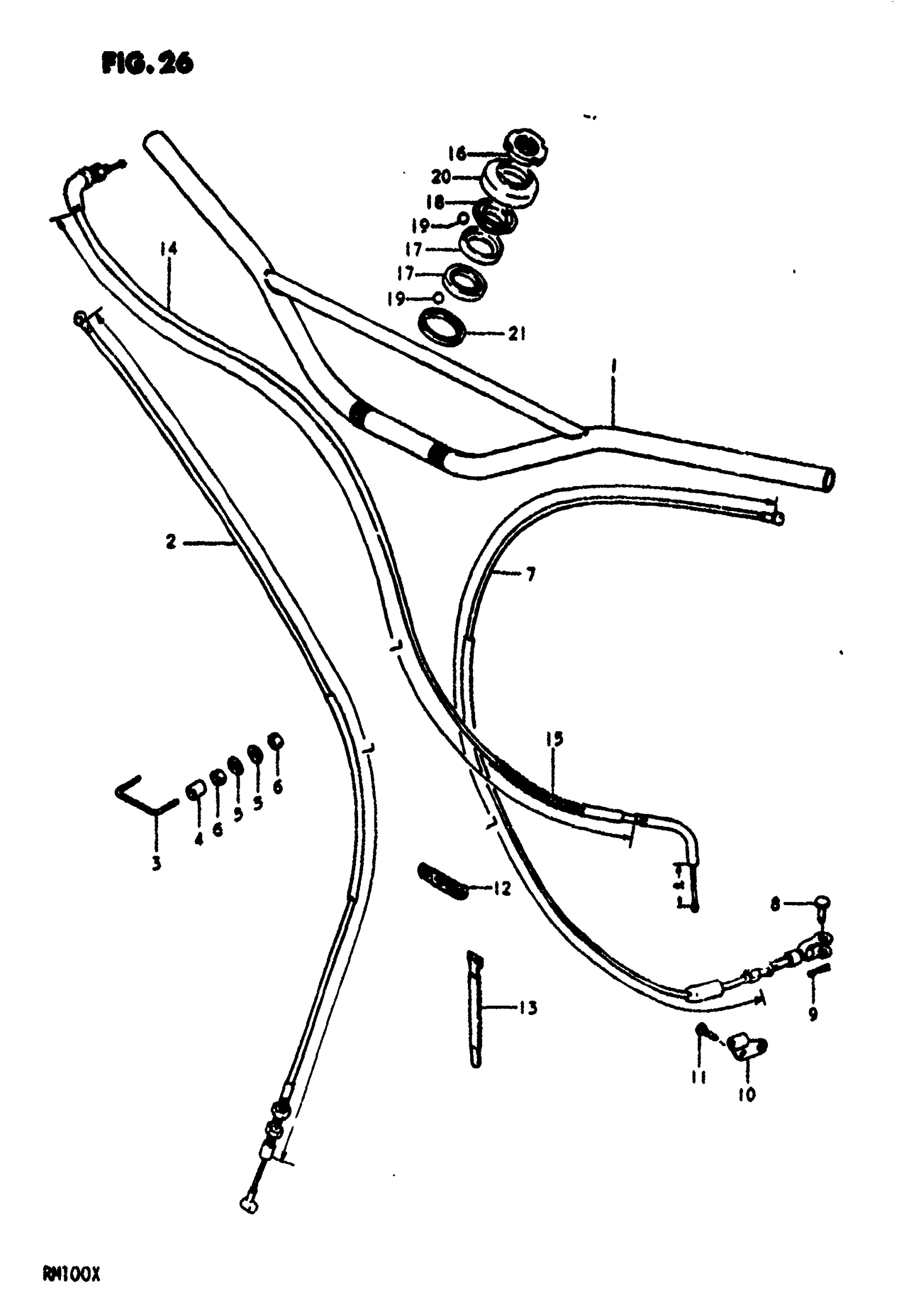

Suzuki RM100 (1981) HANDLEBAR (RM100N Diagram

#

Description
Price

1

HANDLEBAR (GOLD)

56110-40210-08C

Unavailable

2

CABLE, FRONT BRAKE (L:1250)

58110-40210

Unavailable

3

GUIDE, CABLE

58626-41000

Unavailable

4

ROLLER

09306-04002

Unavailable

5

WASHER This part replaces 08322-21038.

08322-01037

$1.93

6

NUT This part replaces 08310-11038.

08310-0003B

$2.83

7

CABLE, CLUTCH (L:1050)

58200-41301

Unavailable

8

PIN

09200-06004

$2.20

9

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

10

STOPPER, CLUTCH CABLE

58634-41300

Unavailable

11

SCREW This part replaces 02112-06108.

02112-06107

$1.49

12

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

13

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

14

CABLE,THROTTLE | RM100N This part replaces 58300-40201.

58300-40X00

Unavailable

14

CABLE,THROTTLE | RM100T This part replaces 58300-40202.

58300-40X00

Unavailable

15

PROTECTOR

58399-27100

$3.78

16

NUT, STEERING STEM

51631-40200

Unavailable

17

RACE, INNER This part replaces 51611-40200.

51611-40201

Unavailable

18

RACE,STEERING O This part replaces 51621-40200.

51621-08D00

Unavailable

19

STEEL BALL

06111-08003

$1.49

20

DUST SEAL, UPPER

51643-40200

$7.96

21

DUST SEAL, INNER

51651-40010

Unavailable
