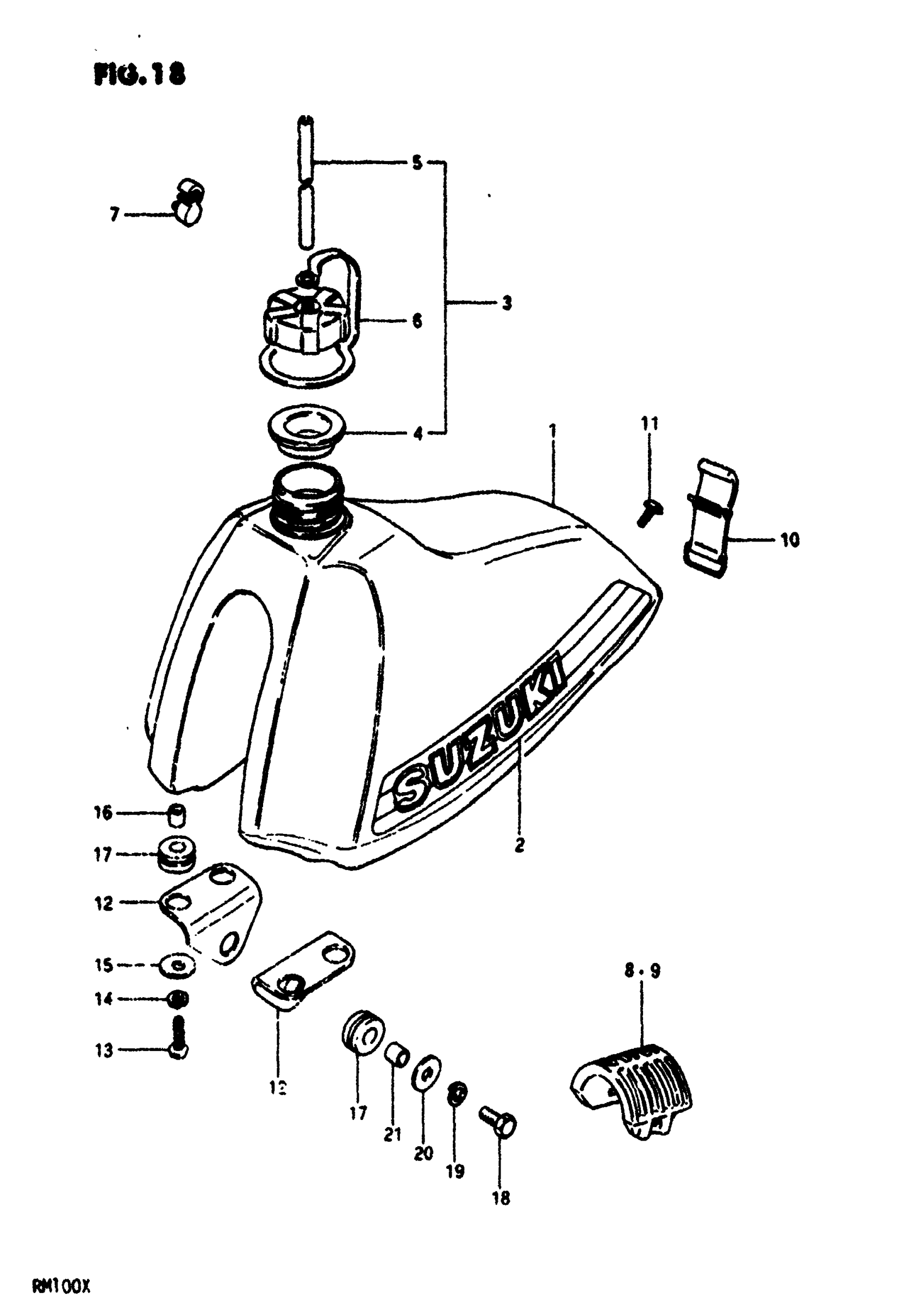

Suzuki RM100 (1981) FUEL TANK (RM100X) Diagram

#

Description
Price

1

TANK, FUEL (YELLOW) | Includes Item(s) 2 - 3

44100-40220-163

Unavailable

2

TAPE SET

68110-40220-67H

Unavailable

3

EMBLEM This part replaces 68111-40200-019.

68111-40210-64D

Unavailable

4

CAP SET,FUEL TA | Includes Item(s) 5 - 8 This part replaces 44200-40400.

44200-40822

$14.76

5

GASKET This part replaces 44248-40400.

44248-05211

$3.76

6

HOSE,5X10X600 This part replaces 09343-05129.

44421-13ER0

$10.06

7

BAND

44487-40400

Unavailable

8

CLAMP

44486-40200

$4.88

9

CUSHION, UPPER FRONT

44541-41300

Unavailable

10

CUSHION, UPPER REAR

44541-41310

Unavailable

11

BAND, REAR

44560-41300

Unavailable

12

SCREW

09125-06029

$1.72

13

BRACKET, LOWER

44521-40401

Unavailable

14

SCREW This part replaces 02112-06258.

02112-06257

$1.78

15

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

16

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.91

17

SPACER

09180-06076

$2.68

18

CUSHION

09320-11008

$2.60

19

BOLT This part replaces 01304-08308.

01500-08307

$3.04

20

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

21

WASHER This part replaces 09160-08021.

09160-08130

$2.03

22

SPACER (8.5X12X11) This part replaces 09180-08001.

09180-08189

$2.58
