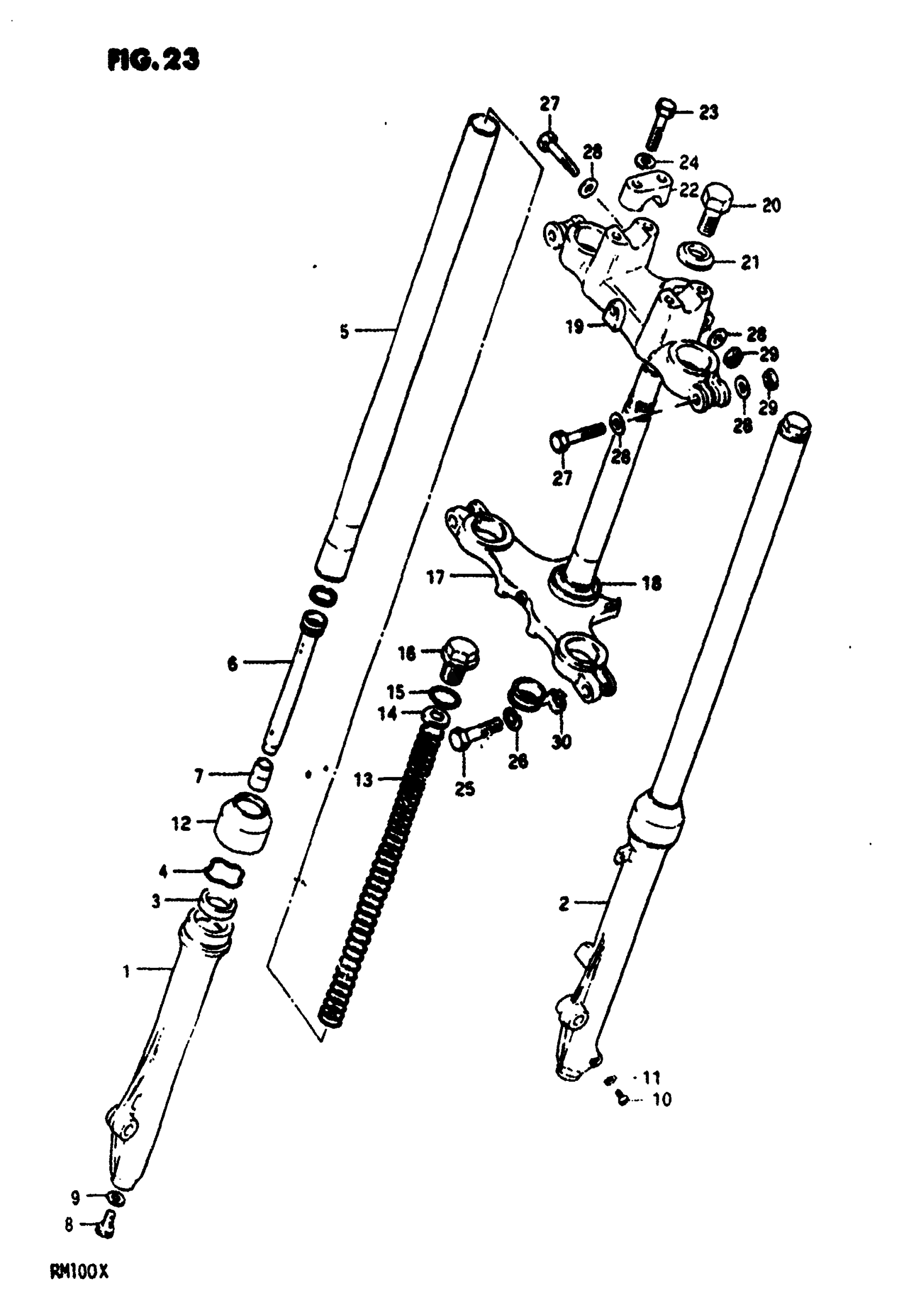

Suzuki RM100 (1981) FRONT FORK (RM100T Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE | RM100T This part replaces 51100-40212-08C.

51100-40211-08C

Unavailable

0

FORK ASSY, FRONT (GOLD) | RM100X; Includes Item(s) 1 - 30

51100-40213-08C

Unavailable

1

OUTER TUBE, RH

51130-40212

Unavailable

2

OUTER TUBE, LH

51140-40212

Unavailable

3

OIL SEAL

51153-34010

Unavailable

4

SNAP RING

51156-30400

Unavailable

5

INNER TUBE

51110-40210

Unavailable

6

CYLINDER | RM100T

51146-40211

Unavailable

6

CYLINDER | RM100X

51146-40213

Unavailable

7

PIECE, OIL LOCK This part replaces 51195-41210.

51195-49071

$21.43

8

BOLT

51147-16510

$4.34

9

GASKET

51148-41310

$2.26

10

SCREW This part replaces 02111-04087.

02112-04087

$1.49

11

GASKET

51183-03010

$2.07

12

DUST SEAL

51173-41310

Unavailable

13

SPRING | RM100T

51171-40211

Unavailable

13

SPRING | RM100X

51171-40213

Unavailable

14

GUIDE, SPRING

51172-38010

Unavailable

15

O RING

51117-16310

Unavailable

16

CAP

51351-40210

Unavailable

17

STEM, STEERING (GOLD)

51410-40210-08C

Unavailable

18

NO DESCRIPTION AVAILABLE This part replaces 51621-40030.

51621-40X00

Unavailable

19

HEAD, STEERING STEM (GOLD)

51311-40210-08C

Unavailable

20

BOLT

51351-41320

Unavailable

21

WASHER

51356-41310

Unavailable

22

HOLDER, HANDLE (GOLD)

56211-40300-08C

Unavailable

23

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

24

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

25

NO DESCRIPTION AVAILABLE This part replaces 01104-12408.

01500-12403

Unavailable

26

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

27

BOLT This part replaces 01107-08558.

01500-08557

$3.16

28

WASHER This part replaces 08322-21088.

08322-01087

$2.13

29

NUT This part replaces 08310-22088.

08310-00087

$2.13

30

CLAMP

58621-40210

Unavailable
