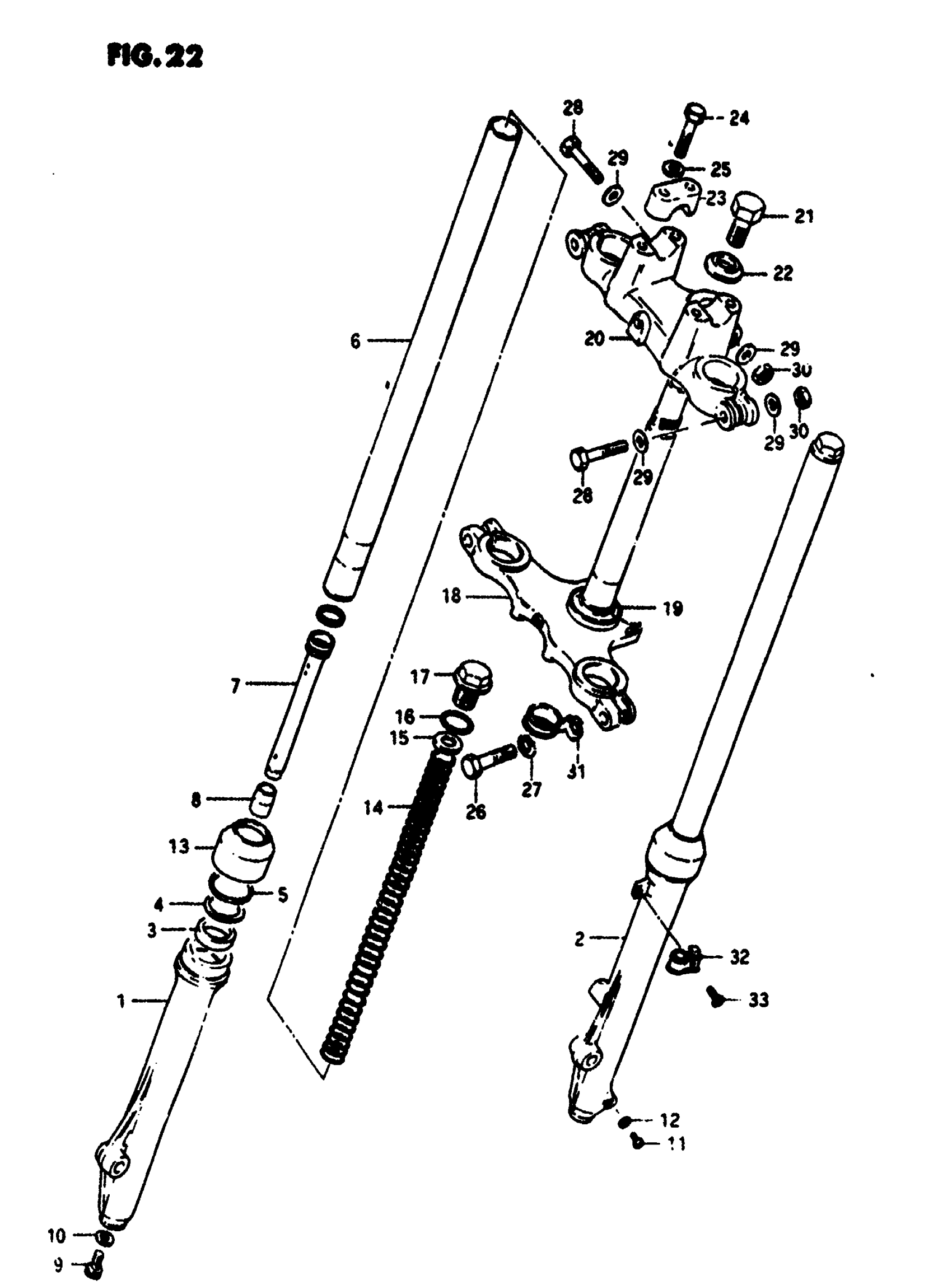

Suzuki RM100 (1981) FRONT FORK (RM100N) Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 33 This part replaces 51100-40210-08C.

51100-40211-08C

Unavailable

1

OUTER TUBE, RH This part replaces 51130-40210.

51130-40212

Unavailable

2

OUTER TUBE, LH This part replaces 51140-40210.

51140-40212

Unavailable

3

OIL SEAL

51153-34010

Unavailable

4

WASHER

51158-32110

Unavailable

5

SNAP RING

51156-32110

Unavailable

6

INNER TUBE

51110-40210

Unavailable

7

CYLINDER

51146-40210

Unavailable

8

PIECE, OIL LOCK This part replaces 51195-41210.

51195-49071

$21.43

9

BOLT

51147-16510

$4.34

10

GASKET

51148-41310

$2.26

11

SCREW This part replaces 02111-04087.

02112-04087

$1.49

12

GASKET

51183-03010

$2.07

13

DUST SEAL

51173-41310

Unavailable

14

SPRING

51171-40210

Unavailable

15

GUIDE, SPRING

51172-38010

Unavailable

16

O RING

51117-16310

Unavailable

17

CAP

51351-40210

Unavailable

18

STEM, STEERING (GOLD)

51410-40210-08C

Unavailable

19

NO DESCRIPTION AVAILABLE This part replaces 51621-40030.

51621-40X00

Unavailable

20

HEAD, STEERING STEM (GOLD)

51311-40210-08C

Unavailable

21

BOLT

51351-41320

Unavailable

22

WASHER

51356-41310

Unavailable

23

HOLDER, HANDLE (GOLD)

56211-40300-08C

Unavailable

24

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

25

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

26

NO DESCRIPTION AVAILABLE This part replaces 01104-12408.

01500-12403

Unavailable

27

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

28

BOLT This part replaces 01107-08558.

01500-08557

$3.16

29

WASHER This part replaces 08322-21088.

08322-01087

$2.13

30

NUT This part replaces 08310-22088.

08310-00087

$2.13

31

CLAMP

58621-40210

Unavailable

32

CLAMP, BRAKE CABLE This part replaces 51452-41600.

58621-14201

$5.50

33

SCREW This part replaces 02112-06168.

02112-06167

$1.49
