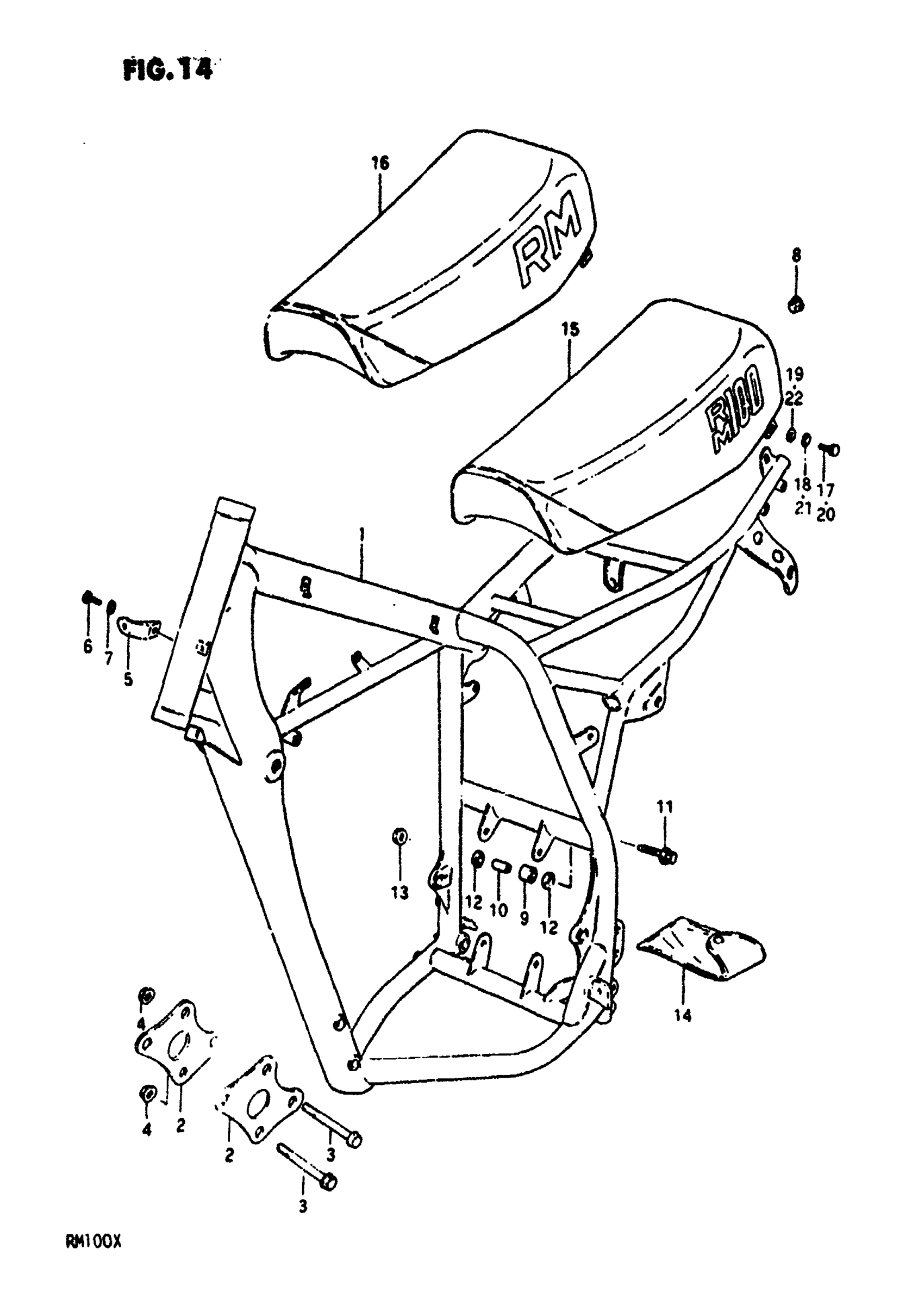

Suzuki RM100 (1981) FRAME - SEAT Diagram

#

Description
Price

1

FRAME (BLACK) | MODEL N

41100-40210-019

Unavailable

1

FRAME (BLACK) | MODEL T,X

41100-40211-019

Unavailable

2

PLATE, ENGINE MOUNTING

41991-40200

Unavailable

3

BOLT

09103-08037

$5.57

4

NUT This part replaces 08319-31088.

08319-3108A

$2.32

5

BRACKET, CDI UNIT

41890-41300

Unavailable

6

BOLT This part replaces 01107-06128.

01500-06127

$1.97

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

8

PLUG

09250-14005

$2.06

9

ROLLER, CHAIN LOWER | MODEL T This part replaces 43911-40400.

43911-14200

Unavailable

9

ROLLER, CHAIN CONTROL | MODEL X

43911-14200

Unavailable

10

SPACER, CHAIN ROLLER | MODEL T,X

43913-40400

Unavailable

11

BOLT | MODEL T,X

09103-08043

$3.18

12

WASHER | MODEL T,X This part replaces 09160-08035.

09160-08130

$2.03

13

NUT (CHROME) | MODEL T,X This part replaces 08316-16088.

08316-10087

$2.26

14

TOOL SET | MODEL N This part replaces 09800-00170.

09800-08800

Unavailable

14

TOOL SET | MODEL T, X This part replaces 09800-00218.

09800-08800

Unavailable

15

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 45100-40210-865.

45100-40301-865

Unavailable

16

NO DESCRIPTION AVAILABLE | MODEL T, X This part replaces 45100-40220-865.

45100-40221-48F

Unavailable

17

BOLT, CANISTER | MODEL N,T This part replaces 01107-06168.

01500-06167

$1.97

18

LOCK WASHER | MODEL N, T This part replaces 08321-21068.

08321-01067

$2.13

19

WASHER (6.5X18X1.0) | MODEL N,T

09160-06028

$1.49

20

BOLT This part replaces 01107-06208.

01500-06207

$2.28

21

LOCK WASHER | MODEL X This part replaces 08321-21068.

08321-01067

$2.13

22

WASHER This part replaces 09160-06007.

09160-06084

$1.78
