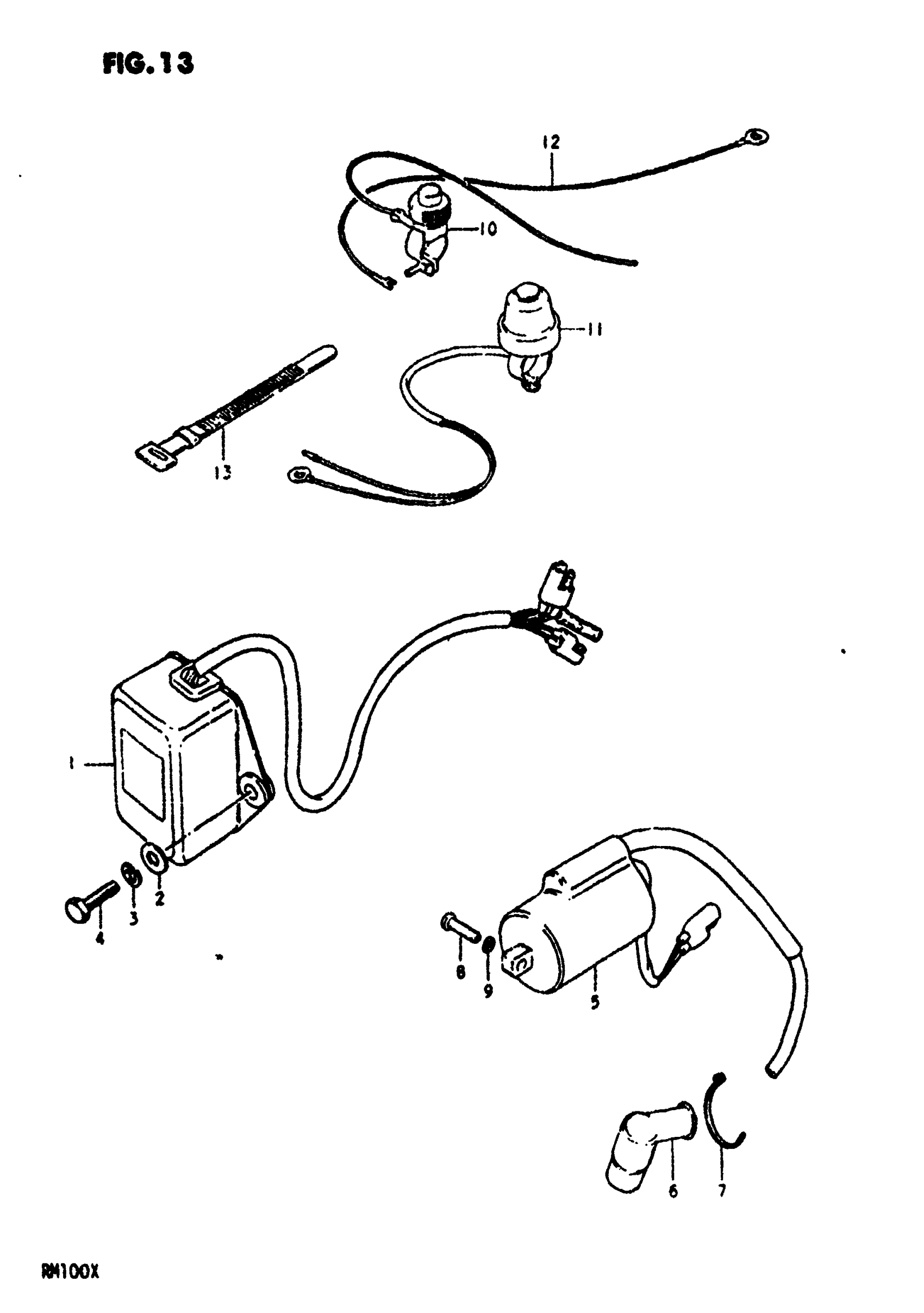

Suzuki RM100 (1981) ELECTRICAL Diagram

#

Description
Price

1

CDI UNIT ASSY | MODEL T

32900-40420

Unavailable

1

CDI UNIT ASSY | MODEL N, X

32900-40220

Unavailable

2

WASHER (6.5X16X1.2)

09160-06019

$1.49

3

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

4

BOLT This part replaces 01107-06208.

01500-06207

$2.28

5

COIL ASSY, IGNITION This part replaces 33410-41320.

33410-14120

$115.17

6

CAP, SPARK PLUG This part replaces 33510-41111.

33510-20A02

$24.39

7

BELT

09407-09402

$2.45

8

SCREW This part replaces 02112-05206.

02112-0520B

$1.84

9

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

10

SWITCH ASSY, ENGINE STOP | MODEL N This part replaces 37820-04430.

37820-14X50

$48.54

11

SWITCH ASSY, ENGINE STOP | MODEL T, X This part replaces 37820-40400.

37820-14X50

$48.54

12

LEAD WIRE | MODEL N

36851-41200

Unavailable

13

CLAMP | MODEL T, X

09407-12402

$3.04
