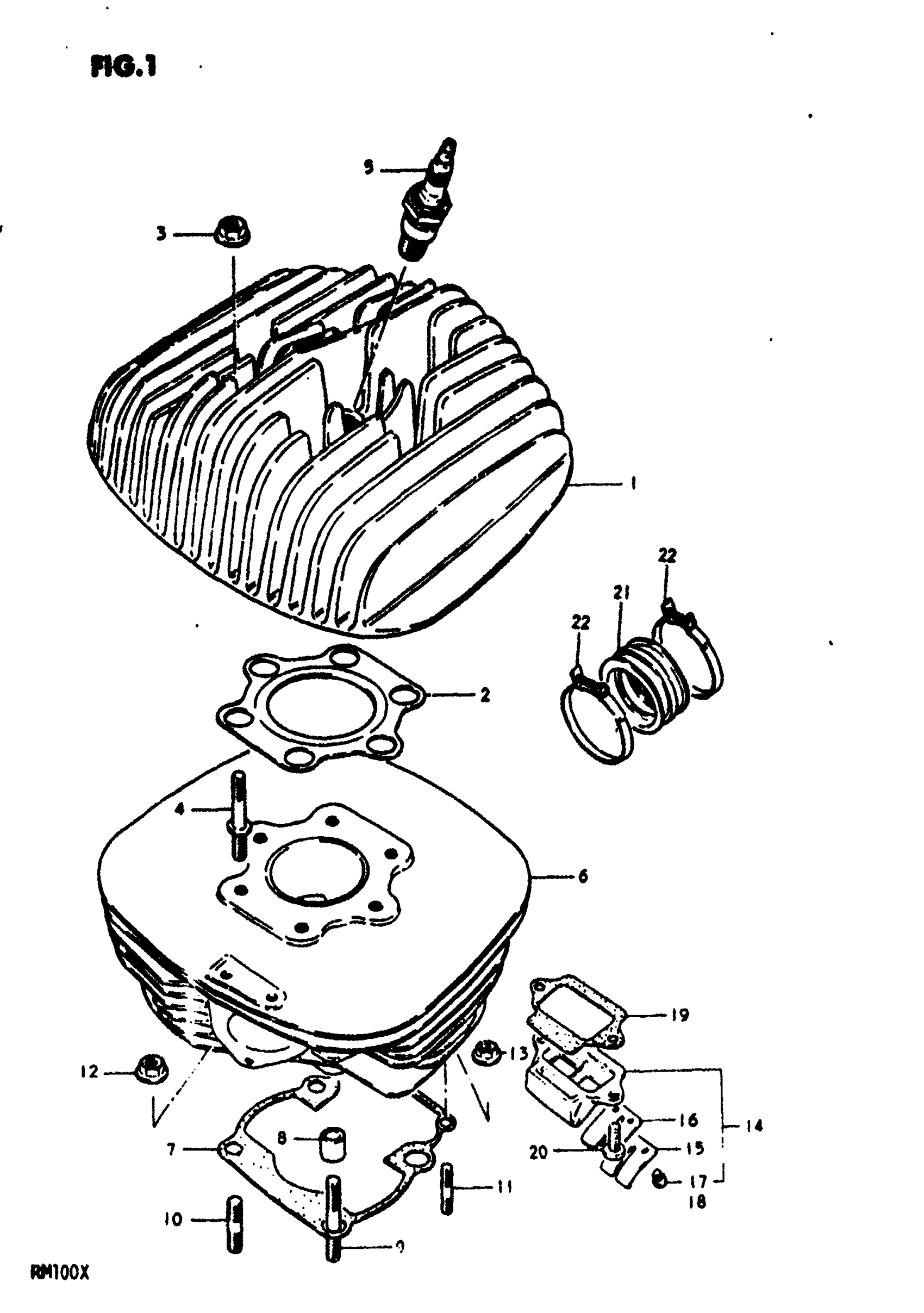

Suzuki RM100 (1981) CYLINDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL NMODEL T, X This part replaces 11111-40212.

11111-40213

Unavailable

2

GASKET (T:1.0) This part replaces 11141-40211.

11141-40201

Unavailable

2

GASKET (T:0.5) | OPT

11141-40700

Unavailable

3

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

4

STUD BOLT

09108-08018

$3.18

5

SPARK PLUG BR9E | MODEL N This part replaces 09482-00097.

09482-00349

$7.22

5

SPARK PLUG BR9E This part replaces 09482-00209.

09482-00349

$7.22

5

SPARK PLUG (ND,W27ES-ZU) | MODEL N This part replaces 09482-00099.

09482-00396-111

Unavailable

6

CYLINDER | MODEL N, T This part replaces 11210-40212.

11210-40213

Unavailable

6

CYLINDER | MODEL X

11210-40213

Unavailable

7

GASKET,CYLINDER | MODEL N, T This part replaces 11241-40200.

11241-40201-H17

Unavailable

7

GASKET,CYLINDER | MODEL X This part replaces 11241-40201.

11241-40201-H17

Unavailable

8

PIN This part replaces 09206-13001.

04211-13189

$2.19

9

STUD BOLT This part replaces 01421-08408.

09108-08144

$3.20

10

BOLT,STUD This part replaces 01421-08258.

01421-0825A

$2.03

11

STUD BOLT This part replaces 01421-06208.

01421-0620A

$1.91

12

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

13

NUT This part replaces 08316-16068.

08319-31067

$2.03

14

REED VALVE ASSY | Includes Item(s) 15 - 18

13150-40200

Unavailable

15

REED VALVE ASSY This part replaces 13152-40200.

13150-40200

Unavailable

16

REED VALVE

13153-40200

Unavailable

17

SCREW This part replaces 02111-03087.

02112-0308A

$1.80

18

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

19

GASKET,REED VAL This part replaces 13156-40200.

13156-40200-H17

Unavailable

20

SCREW This part replaces 02112-06168.

02112-06167

$1.49

21

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 13111-40200.

13111-40201

Unavailable

21

PIPE, INTAKE | MODEL T, X

13111-40210

Unavailable

22

CLAMP | MODEL N This part replaces 09402-48306.

09402-48208

$4.64

22

CLAMP | MODEL T, X

09402-50306

$4.77
