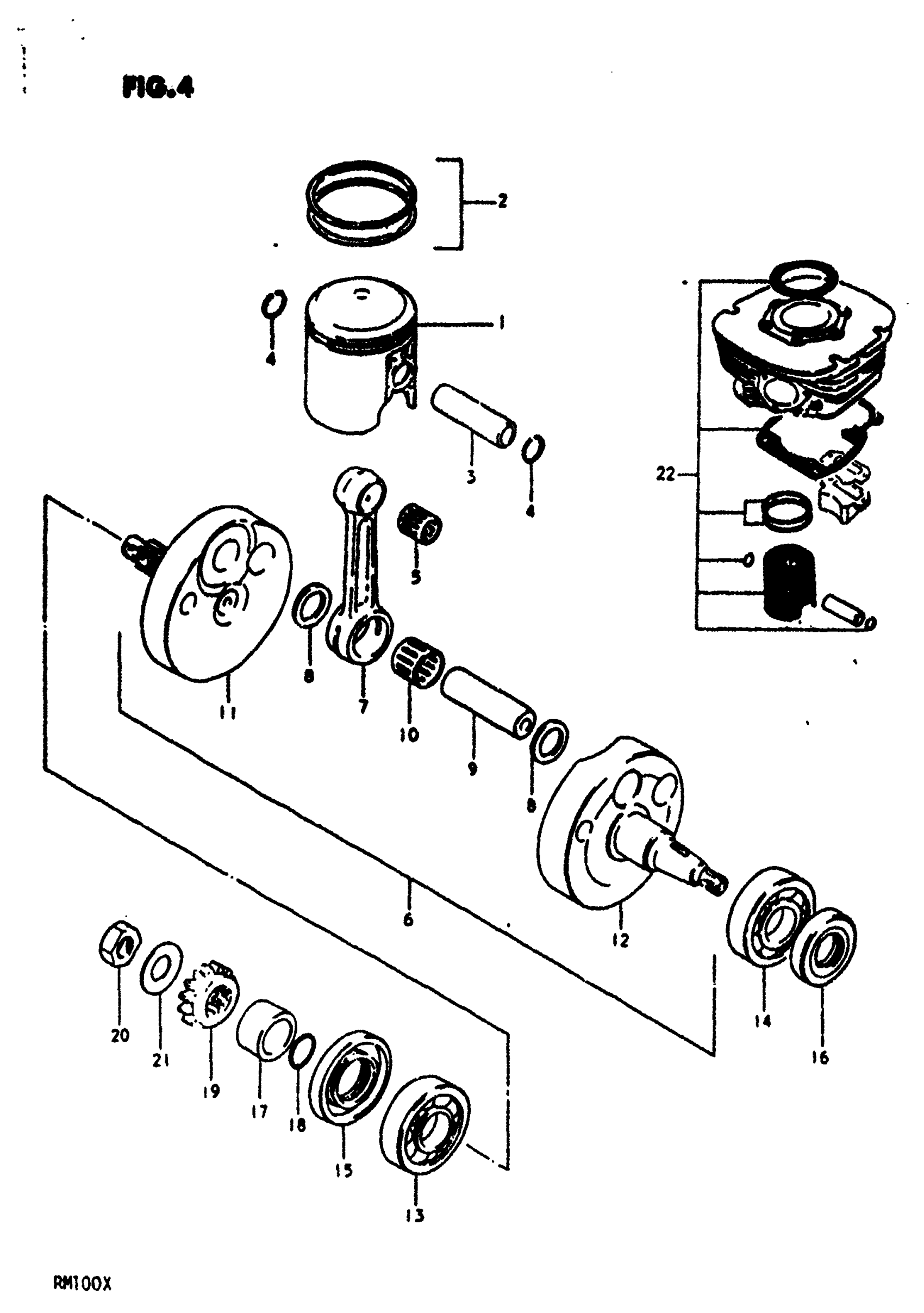

Suzuki RM100 (1981) CRANKSHAFT Diagram

#

Description
Price

1

PISTON (STD)

12110-40200

Unavailable

1

PISTON (OS:0.25)

12110-40200-025

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 12110-40200-050.

12103-40860-050

Unavailable

2

RING SET, PISTON (STD)

12140-41610

Unavailable

2

RING SET, PISTON (OS:0.25)

12140-41610-025

Unavailable

2

RING SET, PISTON (OS:0.5)

12140-41610-050

Unavailable

3

PIN,PISTON This part replaces 12151-07000.

12151-23400-0A0

$8.67

4

RING

09381-14001

$1.49

5

ROLLR BRG,14X18 This part replaces 09263-14006.

09263-14022

$11.97

6

CRANKSHAFT ASSY | MODEL N

12200-40210

Unavailable

6

CRANKSHAFT ASSY | MODEL T,X; Includes Item(s) 7 - 12

12200-40230

Unavailable

7

CONNECTING ROD This part replaces 12161-12002.

12161-39300

$69.47

8

WASHER

09160-19001

$3.27

9

PIN CRANK | MODEL N This part replaces 12211-03001.

12211-03020

$31.08

9

PIN CRANK | MODEL T,X This part replaces 12211-10301.

12211-03020

$31.08

10

BEARING

09263-19009

$16.75

11

CRANKSHAFT, RH | MODEL N

12221-40210

Unavailable

11

CRANKSHAFT, RH | MODEL T,X

12221-40230

Unavailable

12

CRANKSHAFT, LH | MODEL N

12261-40210

Unavailable

12

CRANKSHAFT, LH | MODEL T,X

12261-40230

Unavailable

13

BEARING, RH (22X56X16) This part replaces 09262-22012.

09262-22025

$57.67

14

BEARING, LH This part replaces 09262-25052.

09262-25070-0A0

$37.33

15

OIL SEAL, RH

09289-29002

Unavailable

16

OIL SEAL, LH This part replaces 09283-25037.

09283-25066

$7.50

17

SPRING

09180-20064

Unavailable

18

O RING

09280-20004

$1.58

19

GEAR, PRIMARY DRIVE (NT:18)

21111-41301

Unavailable

20

NUT

09140-16002

$3.16

21

WASHER

09164-16002

$3.16

22

ENGINE TOP END KIT | STD

12100-40810

Unavailable

22

ENGINE TOP END KIT | OS:0.25

12100-40810-025

Unavailable
