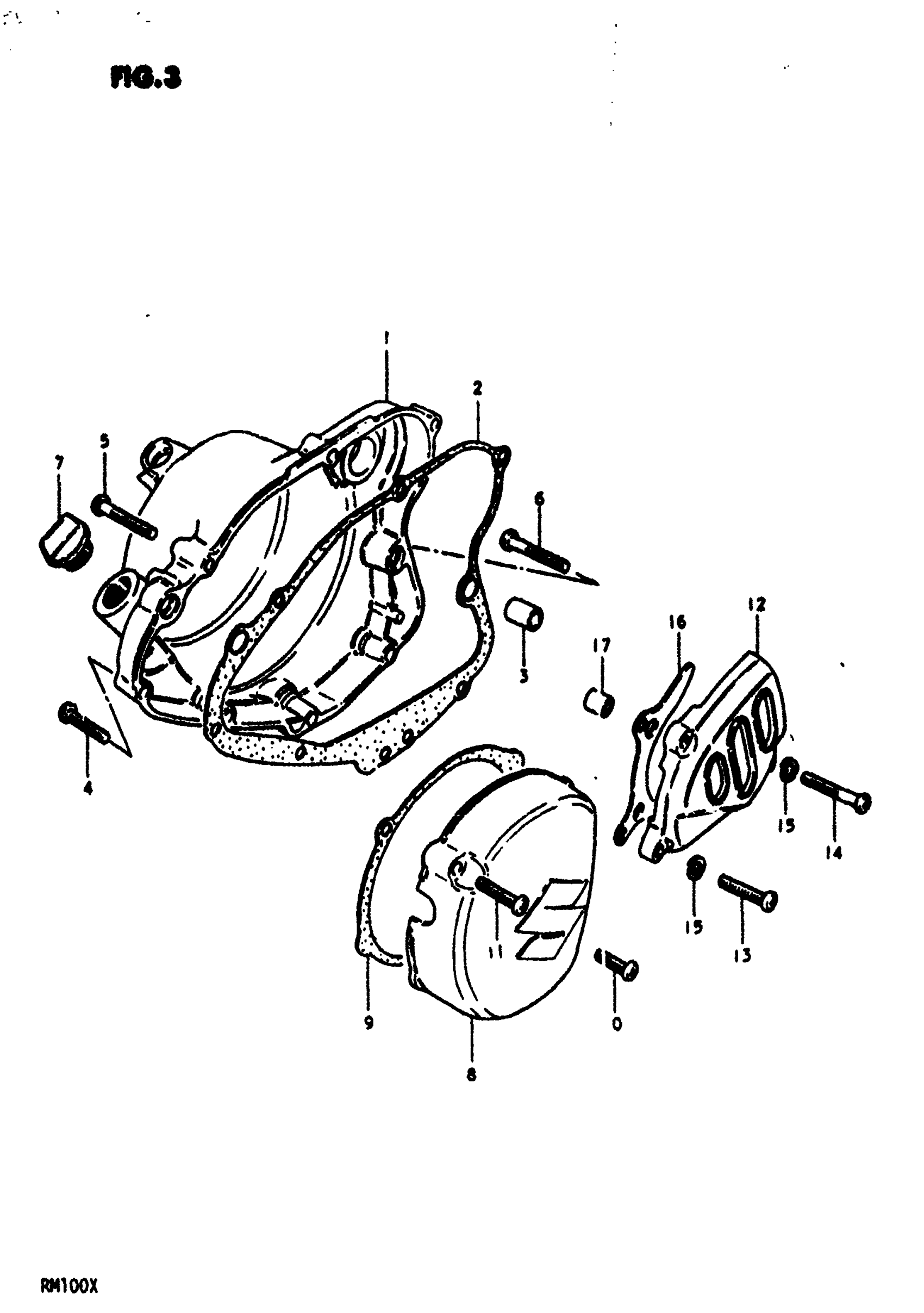

Suzuki RM100 (1981) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | MODEL N, T This part replaces 11341-40200.

11341-40201

Unavailable

1

COVER, CLUTCH | MODEL X

11341-40201

Unavailable

2

GASKET,CL COVER This part replaces 11482-40200.

11482-40200-H17

$12.69

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW This part replaces 02112-06308.

02112-06307

$1.97

5

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

6

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

7

PLUG SET This part replaces 09259-20003.

09200-20811

$4.02

8

COVER, MAGNETO | MODEL N, T This part replaces 11351-40400.

11351-40402

Unavailable

8

COVER, MAGNETO | MODEL X This part replaces 11351-40401.

11351-40402

Unavailable

9

GASKET,MAGNETO | MODEL N,T This part replaces 11483-41301.

11483-41312-H17

Unavailable

9

GASKET,MAGNETO | MODEL X This part replaces 11483-41310.

11483-41312-H17

Unavailable

10

SCREW This part replaces 02112-06206.

02112-0620A

$1.49

11

SCREW, SEAT SUPPORT BRK This part replaces 02112-06306.

02112-0630A

$1.78

12

COVER, SPROCKET

11360-40200

Unavailable

13

BOLT This part replaces 01517-06358.

01550-06357

$2.77

14

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

15

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

16

NO DESCRIPTION AVAILABLE This part replaces 27641-40210.

27641-40211

Unavailable

17

SPACER

09180-07004

$2.30
