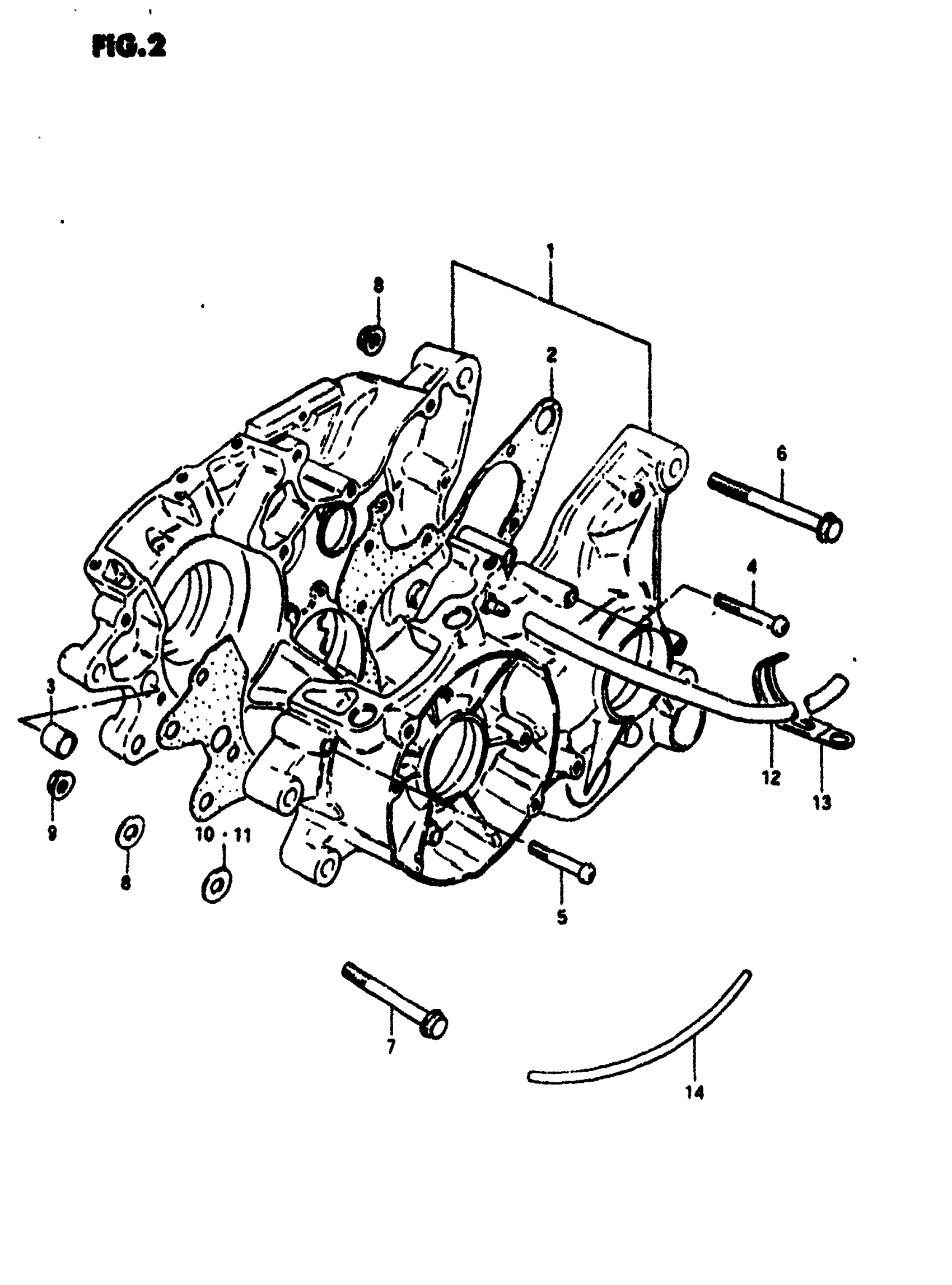

Suzuki RM100 (1981) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 11300-40810.

11300-40811

Unavailable

1

CRANKCASE SET | MODEL T, X; Includes Item(s) 2 - 5

11300-40840

Unavailable

2

GASKET, CRANKCA | MODEL N This part replaces 11481-40200.

11481-40220

Unavailable

2

GASKET,CRANKCAS | MODEL T This part replaces 11481-40210.

11481-40210-H17

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW

02112-06557

$2.53

5

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

6

BOLT | MODEL N, T This part replaces 01517-08908.

01550-08907

$5.18

6

BOLT (8X95) | MODEL X This part replaces 09103-08052.

09103-08066

$3.93

7

BOLT (8X67)

09103-08037

$5.57

8

WASHER | MODEL X This part replaces 08322-21088.

08322-01087

$2.13

9

NUT This part replaces 08319-31088.

08319-3108A

$2.32

10

WASHER (1) | (0~1)

09169-08022

Unavailable

11

WASHER (2) | (0~1)

09169-08023

Unavailable

12

HOSE This part replaces 09343-05021.

09352-50005-00B

$13.93

13

CLAMP This part replaces 09404-06402.

09404-06039

$1.74

14

HOSE 4X7X600 This part replaces 09343-04010.

09352-40706-600

$5.11
