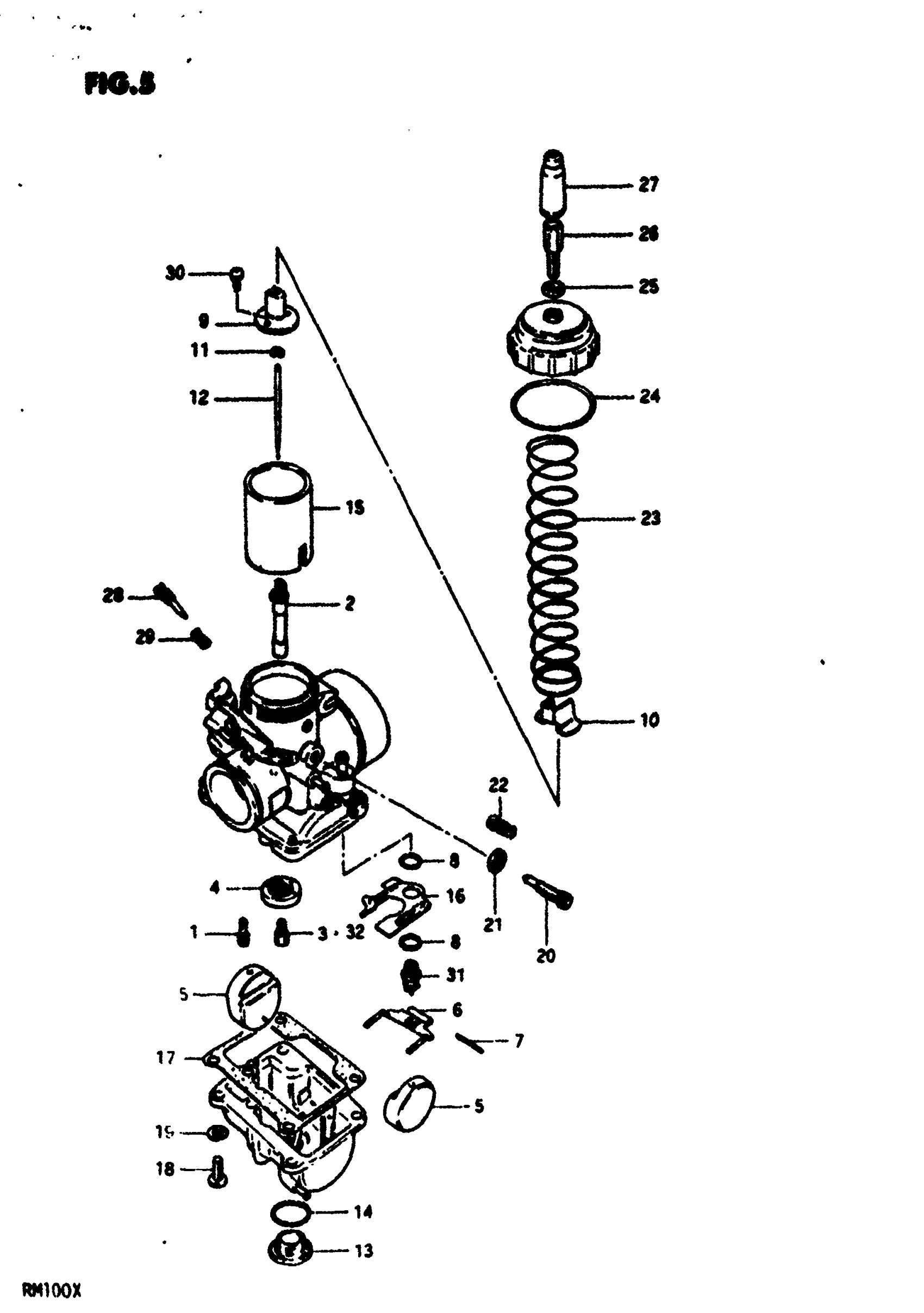

Suzuki RM100 (1981) CARBURETOR Diagram

#

Description
Price

0

CARBURETOR ASSY | MODEL N

13200-40210

Unavailable

0

CARBURETOR ASSY | MODEL T

13200-40230

Unavailable

0

CARBURETOR ASSY | MODEL X; Includes Item(s) 1 - 10

13200-41540

Unavailable

1

JET, PILOT (30) This part replaces 09492-30003.

09492-30006

$9.55

2

JET, NEEDLE (R-4) | MODEL N

09494-00226

Unavailable

2

JET, NEEDLE (S-0) | MODEL T

09494-00249

Unavailable

2

JET, NEEDLE (R-4) | MODEL X

09494-00296

Unavailable

3

JET, MAIN (190) | MODEL N This part replaces 09491-38003.

09491-38009

Unavailable

3

JET, MAIN (250) | MODEL T This part replaces 09491-50003.

09491-50008

Unavailable

3

JET, MAIN (200) | MODEL X This part replaces 09491-40004.

09491-40006

Unavailable

4

RING

13331-40200

Unavailable

5

FLOAT

13252-16600

$27.77

6

ARM, FLOAT

13253-40200

Unavailable

7

.PIN, FLOAT

13254-01010

$3.62

8

GASKET, VALVE SEAT

13392-16600

$1.94

9

HOLDER, JET NEEDLE

13581-40200

Unavailable

10

COVER, HOLDER

13629-40200

Unavailable

11

~CLIP, NEEDLE | Includes Item(s) 12 - 31

13394-10010

$5.45

12

NEEDLE, JET (5DP11-2) | MODEL N

13383-41620

Unavailable

12

NEEDLE,JET | MODEL T This part replaces 13383-41500.

13383-41510

Unavailable

12

NEEDLE, JET (5DP74-2) | MODEL X

13383-41530

Unavailable

13

PLUG, DRAIN

13247-40200

Unavailable

14

O RING This part replaces 13249-41320.

13249-41310

$4.40

15

VALVE, THROTTLE (CA:2.5)

13551-40200

Unavailable

16

PLATE

13259-40200

Unavailable

17

GASKET

13251-30110

Unavailable

18

SCREW This part replaces 02112-05168.

02112-05167

$1.97

19

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

20

SCREW, THROTTLE STOP This part replaces 13267-15110.

13267-40230

$9.85

21

NUT | MODEL N,T

13661-16600

$4.64

22

SPRING | MODEL X

13268-03110

$5.45

23

SPRING

13573-41610

Unavailable

24

O RING

13266-40200

Unavailable

25

NUT

13661-16600

$4.64

26

ADJUSTER | MODEL N,T This part replaces 13577-03010.

13577-48110

$8.30

26

ADJUSTER, CABLE | MODEL X

13577-15010

Unavailable

27

CAP

13681-16601

$8.26

28

SCREW, PILOT AIR

13269-15010

Unavailable

29

SPRING

13268-01010

$5.28

30

SCREW This part replaces 02112-03088.

02112-0308A

$1.80

31

VALVE, NEEDLE

13370-16600

Unavailable

32

JET, MAIN (180) | OPT This part replaces 09491-36003.

09491-36006

Unavailable

32

JET, MAIN (210) | OPT This part replaces 09491-42001.

09491-42005

Unavailable

32

JET. MAIN (240) | OPT This part replaces 09491-48001.

09491-48003

Unavailable

32

JET, MAIN | OPT This part replaces 09491-52001.

09491-52006

$10.38

32

JET, MAIN (270) | OPT This part replaces 09491-54001.

09491-54002

Unavailable
