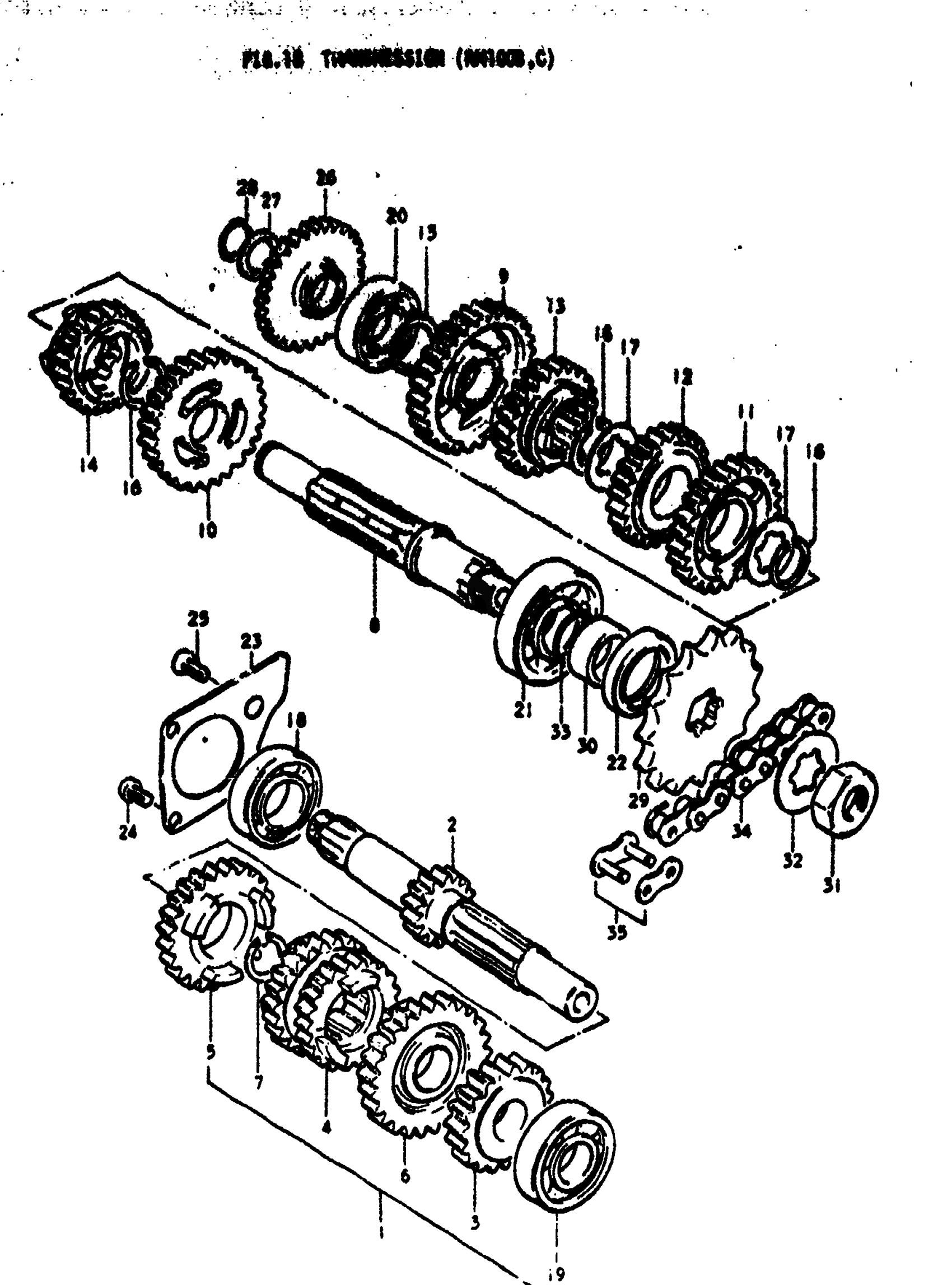

Suzuki RM100 (1978) TRANSMISSION (RM100B Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | B,C; Includes Item(s) 2 - 7 This part replaces 24120-41300.

24120-41301

Unavailable

2

COUNTERSHAFT | B,C; NT:12

24121-41300

Unavailable

3

GEAR,2ND DRIVE | B,C; NT:16 This part replaces 24221-41300.

24221-41304

Unavailable

4

GEAR, 3/4 DRIVE (NT:17/21) | B,C; NT:17/21 This part replaces 24231-41300.

24231-14110

Unavailable

5

GEAR, 5TH DRIVE (NT:22) | B,C; NT:22 This part replaces 24251-41300.

24251-14101

Unavailable

6

NO DESCRIPTION AVAILABLE | B,C; NT:23 This part replaces 24260-41300.

24260-40210

Unavailable

7

CIRCLIP | B,C

09380-20007

$2.43

8

DRIVESHAFT | B,C This part replaces 24131-41300.

24131-41303

Unavailable

9

GEAR, 1ST DRIVEN | B,C; NT:28

24310-41300

Unavailable

10

NO DESCRIPTION AVAILABLE | B,C; NT:28 This part replaces 24321-41300.

24321-41310

Unavailable

11

GEAR, 3RD DRIVEN (NT:24) | B,C; NT:24 This part replaces 24331-41300.

24331-41302

Unavailable

12

GEAR, 4TH DRIVEN (NT:25) | B; NT:25 TO 24341-41302C; NT:25 This part replaces 24341-41301.

24341-41303

Unavailable

13

GEAR, 5TH DRIVEN (NT:23) | B,C; NT:23 This part replaces 24351-41300.

24351-41301

Unavailable

14

GEAR, 6TH DRIVEN | B,C; NT:22

24361-41300

Unavailable

15

SHIM, CAM CHAIN IDLER,T:1.0 | B,C; 15x24x1 This part replaces 08211-15241.

09181-15166

$2.85

16

CIRCLIP | B,C

09380-20007

$2.43

17

WASHER | B,C

09167-20011

$2.31

18

BEARING, DRIVE SHAFT LH | B,C This part replaces 08113-62040.

09262-20069

$23.28

19

BEARING, LH | B,C

08113-60020

$16.01

20

BEARING (15X35X11) | B,C This part replaces 08113-62020.

08113-62027

$14.40

21

BEARING, LH | B,C

09262-20043

Unavailable

22

OIL SEAL | B,C

09283-25035

$6.51

23

HOLDER, BEARING | B,C

24741-41300

Unavailable

24

SCREW | B,C This part replaces 02112-06128.

02112-06127

$1.84

25

SCREW | B,C This part replaces 02122-06128.

02122-06127

$1.84

26

GEAR, KICK STARTER IDLE | B,C; NT:28

26260-41300

Unavailable

27

SHIM, CAM CHAIN IDLER,T:1.0 | B,C This part replaces 08211-15241.

09181-15166

$2.85

28

CIRCLIP | B,C This part replaces 08331-11159.

08331-3115A

$2.25

29

SPROCKET (NT:14) | B,C; NT:14 OPTB,C; NT:13 OPT This part replaces 27511-41300.

27511-41310

$23.98

29

SPROCKET, ENGINE | B,C; NT:15

27511-41710

Unavailable

30

SPACER | B,C; 20x25x12.5

09180-20039

$7.31

31

NUT | B,C

09140-16013

Unavailable

32

WASHER | B,C

09167-20012

$2.44

33

O RING | B,C

09280-20001

$1.65

34

CHAIN, DRIVE (428x132L) | B,C; #428x132%; Includes Item(s) 35 This part replaces 27600-41311.

27600-40220

Unavailable

35

JOINT, CHAIN | B,C

27620-28310

Unavailable
