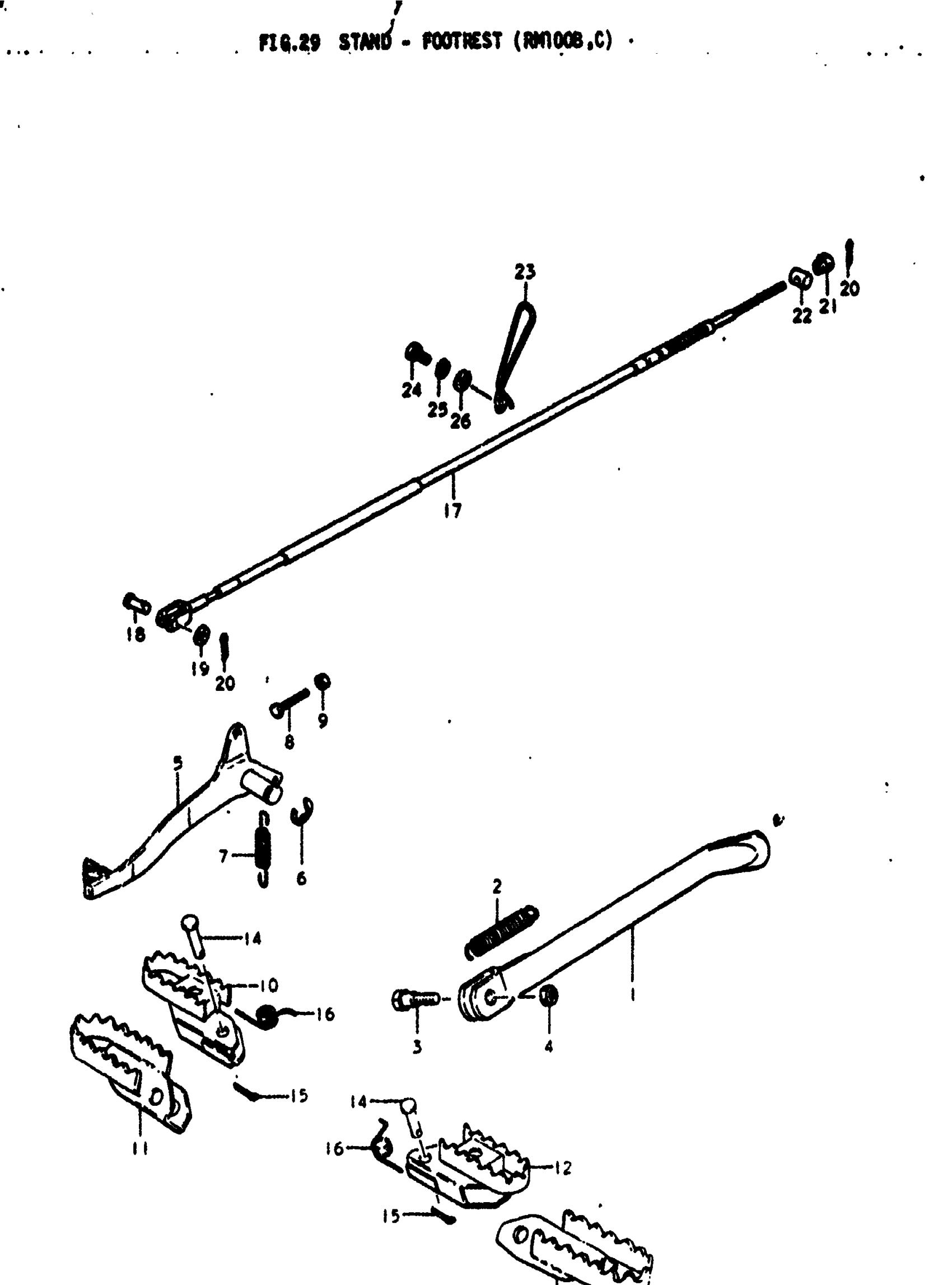

Suzuki RM100 (1978) STAND - FOOTREST (RM100B Diagram

#

Description
Price

1

STAND, PROP | B,C

42310-25000

Unavailable

2

SPRING | B,C This part replaces 09443-14005.

09443-14017

$3.04

3

BOLT | B,C; 10x30

09100-10067

$2.61

4

NUT | B,C This part replaces 08310-22108.

08310-00107

$2.19

5

PEDAL, BRAKE | B

43110-41300

Unavailable

5

PEDAL, BRAKE | C

43110-41301

Unavailable

6

E-RING, BUSH | B,C This part replaces 08332-11098.

08332-1109A

$1.80

7

SPRING | B,C This part replaces 09443-11006.

09443-11006-XC0

Unavailable

8

BOLT | B,C; 6x25

09100-06055

$2.38

9

.NUT | B,C This part replaces 08310-11068.

08310-00067

$2.13

10

FOOTREST, RH | B

43550-41100

Unavailable

11

FOOTREST, RH | C

43550-29300

$22.22

12

FOOTREST, LH | B

43560-41100

Unavailable

13

FOOTREST, LH | C

43560-29300

$19.25

14

PIN | B

09200-08002

$2.05

14

PIN | C

09200-10008

$2.62

15

COTTER PIN | B,C This part replaces 04111-20208.

04111-2020A

$1.49

16

SPRING | B

09448-14012

$3.04

16

SPRING | C

09448-15004

$2.34

17

CABLE, REAR BRAKE | B,C; FROM 58510-41300

58510-41301

Unavailable

18

PIN | B,C

09200-05001

$1.65

19

WASHER | B,C This part replaces 08322-21068.

08322-01067

$2.13

20

.COTTER PIN | B,C This part replaces 04111-20158.

04111-2015A

$1.49

21

.NUT | B,C This part replaces 09150-06001.

09150-06010

$3.10

22

PIN | B,C

09209-11002

$2.19

23

GUIDE, REAR BRAKE CABLE | B,C

58621-40001

Unavailable

24

BOLT | B,C This part replaces 01107-06128.

01500-06127

$1.97

25

LOCK WASHER | B This part replaces 08321-21068.

08321-01067

$2.13

26

WASHER | B,C This part replaces 08322-21068.

08322-01067

$2.13
