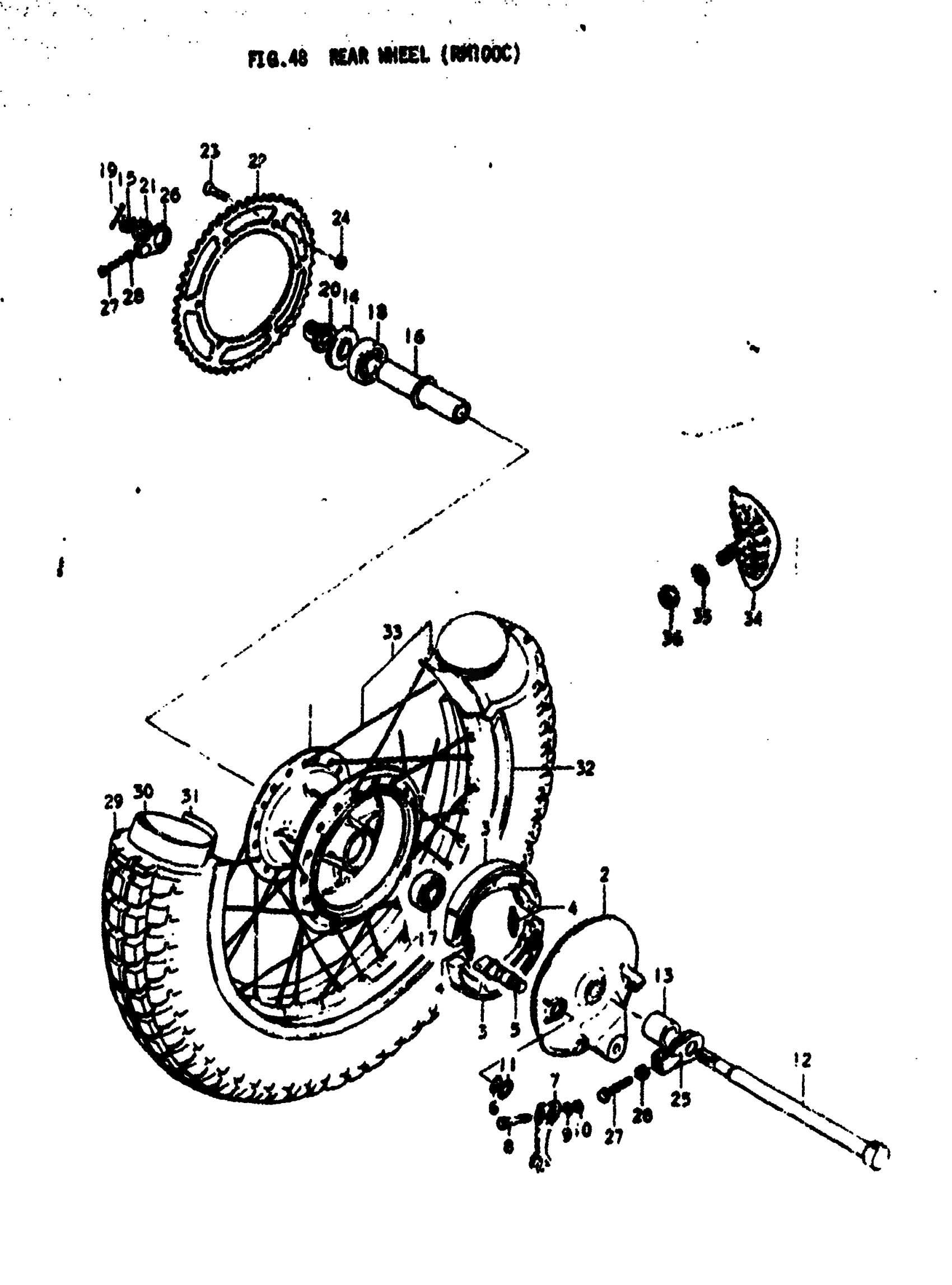

Suzuki RM100 (1978) REAR WHEEL (RM100C) Diagram

#

Description
Price

1

DRUM, REAR HUB

64110-41320

Unavailable

2

PANEL, HUB This part replaces 64210-28305.

64210-28004

Unavailable

3

SHOE SET, BRAKE This part replaces 54410-07002.

54401-07810

Unavailable

4

SPRING This part replaces 09443-07001.

09443-07025

$2.08

5

CAM, BRAKE

54441-01002

$18.80

6

DUST SEAL

09280-12001

$2.90

7

LEVER, BRAKE CAM

64451-28600

Unavailable

8

BOLT, ADJUSTER | 6x31 This part replaces 09100-06050.

09100-06150

$2.30

9

WASHER This part replaces 08322-21068.

08322-01067

$2.13

10

.NUT This part replaces 08310-11068.

08310-00067

$2.13

11

WASHER | 12.5x20x1

09160-12011

$1.54

12

NO DESCRIPTION AVAILABLE This part replaces 64711-28001.

64711-4130V

Unavailable

13

SPACER

09180-15038

$7.77

14

SPACER, AXLE LH

64750-28000

Unavailable

15

NUT This part replaces 08314-41128.

08314-4012A

$2.50

16

SPACER, HUB BEARING

64730-28001

Unavailable

17

BEARING, LH This part replaces 08143-62020.

08143-62027

$16.01

18

BEARING This part replaces 08123-63020.

08123-6302B

$22.74

19

PIN This part replaces 04111-30308.

04111-3030A

$1.49

20

SPACER, CHAIN ADJUSTER

64791-28001

$23.32

21

NUT This part replaces 09140-18005.

09140-18501

$2.93

22

NO DESCRIPTION AVAILABLE | NT:57 This part replaces 64511-41010.

64511-41011

Unavailable

22

NO DESCRIPTION AVAILABLE | NT:55 OPT This part replaces 64511-41060.

64511-41061

Unavailable

23

SCREW This part replaces 09120-08003.

09120-08004

$2.40

22

NO DESCRIPTION AVAILABLE | NT:60 OPT This part replaces 64511-41040.

64511-41041

Unavailable

24

NUT

09159-08021

Unavailable

25

ADJUSTER,CHAIN, This part replaces 61410-28004.

61410-28005

$10.09

26

LH CHAIN ADJUST This part replaces 61420-28003.

61420-28004

$11.48

27

BOLT | 8x40

09100-08146

$2.82

28

NUT This part replaces 08310-12088.

08310-00087

$2.13

29

TIRE (41018) | 4.10-18 This part replaces 65100-41311.

65100-14130

Unavailable

30

TUBE ASSY, WHEEL INNER | 4.10-18 This part replaces 65200-41310.

65200-42AA1

$65.62

31

PROTECTOR, INNER TUBE | 25x18 This part replaces 65261-16510.

65261-33030

$5.50

32

RIM, WHEEL (185x18) | 1.85x18 This part replaces 65311-41320.

65311-40200

Unavailable

33

NO DESCRIPTION AVAILABLE This part replaces 65300-41871.

65300-41872

Unavailable

34

STOPPER, BEAD This part replaces 65270-30001.

65270-43D00

$58.75

35

WASHER This part replaces 08322-11088.

08322-01087

$2.13

36

NUT This part replaces 08310-12085.

08310-0008A

$1.84
