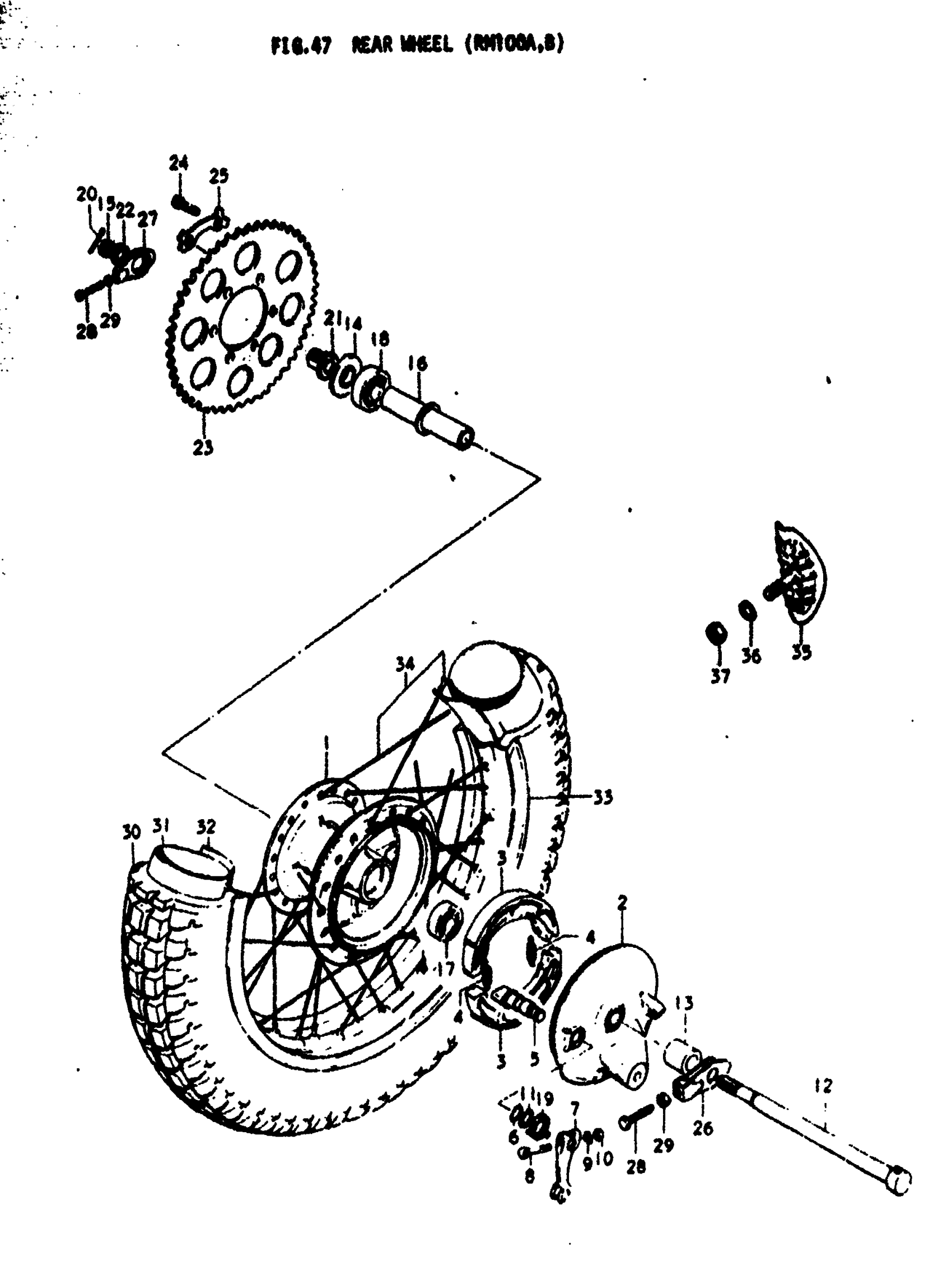

Suzuki RM100 (1978) REAR WHEEL (RM100A Diagram

#

Description
Price

1

DRUM, REAR HUB | A

64110-38000

Unavailable

1

NO DESCRIPTION AVAILABLE | B; FROM 64110-38000 This part replaces 64110-38001.

64110-38002

Unavailable

2

PANEL, HUB | A; TO 64210-28305 This part replaces 64210-28304.

64210-28004

Unavailable

2

PANEL, HUB | B This part replaces 64210-28305.

64210-28004

Unavailable

3

SHOE SET, BRAKE | A,B This part replaces 54410-07002.

54401-07810

Unavailable

4

SPRING | A,B This part replaces 09443-07001.

09443-07025

$2.08

5

CAM, BRAKE | A,B

54441-01002

$18.80

6

DUST SEAL | A,B

09280-12001

$2.90

7

LEVER, BRAKE CAM | A,B

64451-28600

Unavailable

8

BOLT, ADJUSTER | A,B; 6x31 This part replaces 09100-06050.

09100-06150

$2.30

9

WASHER | A,B This part replaces 08322-21068.

08322-01067

$2.13

10

.NUT | A,B This part replaces 08310-11068.

08310-00067

$2.13

11

WASHER | A,B; 12.5x20x1

09160-12011

$1.54

12

NO DESCRIPTION AVAILABLE | A,B This part replaces 64711-28001.

64711-4130V

Unavailable

13

SPACER | A,B

09180-15038

$7.77

14

SPACER, AXLE LH | A,B

64750-28000

Unavailable

15

NUT | A,B This part replaces 08314-31128.

08314-3112A

$2.41

16

SPACER, HUB BEARING | A,B

64730-28001

Unavailable

17

BEARING, LH | A,B This part replaces 08143-62020.

08143-62027

$16.01

18

BEARING | A,B This part replaces 08123-63020.

08123-6302B

$22.74

19

SPRING | A,B

09448-27003

Unavailable

20

PIN | A,B This part replaces 04111-30308.

04111-3030A

$1.49

21

SPACER, CHAIN ADJUSTER | A,B

64791-28001

$23.32

22

NUT | A,B This part replaces 09140-18001.

09140-18501

$2.93

23

NO DESCRIPTION AVAILABLE | A,B; NT:55 OPT This part replaces 64511-41320.

64511-41321

Unavailable

23

NO DESCRIPTION AVAILABLE | ,B; NT:57 :OPT This part replaces 64511-41601.

64511-41311

Unavailable

23

NO DESCRIPTION AVAILABLE | A,B; NT:57 OPT This part replaces 64511-41310.

64511-41311

Unavailable

23

SPROCKET, REAR | A,B; NT:58 OPT

64511-28721

Unavailable

23

NO DESCRIPTION AVAILABLE | A,B; NT:60 OPT This part replaces 64511-41000.

64511-41001

Unavailable

23

SPROCKET, REAR | ,B; NT:64 OPT

64511-28741

Unavailable

23

SPROCKET, REAR | A,B; NT:67 OPT

64511-28751

Unavailable

24

BOLT | A,B; 8x40

09100-08094

$2.71

25

WASHER | A,B

09169-08013

$2.23

26

ADJUSTER,CHAIN, | A,B This part replaces 61410-28002.

61410-28005

$10.09

27

LH CHAIN ADJUST | A,B This part replaces 61420-28002.

61420-28004

$11.48

28

BOLT | A,B; 8x40 TO 09100-08145 This part replaces 09100-08099.

09100-08146

$2.82

29

NUT | A,B This part replaces 08312-11088.

08310-00087

$2.13

30

TIRE | B; 3,50-18

65100-28310

Unavailable

30

TIRE (41018) | B; 4,10-18 This part replaces 65100-41310.

65100-14110

Unavailable

31

TUBE ASSY, WHEEL INNER | A; 3,50-18 This part replaces 65200-18010.

65200-44AA0

$53.43

31

TUBE ASSY, WHEEL INNER | B; 4.10-18 This part replaces 65200-41310.

65200-42AA1

$65.62

32

PROTECTOR, INNER TUBE | A,B; 25x18 This part replaces 65261-16510.

65261-33030

$5.50

33

RIM, WHEEL | A,B; :.85x18 This part replaces 65311-41020.

65311-28322

Unavailable

34

SPOKE SET | A,B

65300-28860

Unavailable

35

STOPPER, BEAD | A,B This part replaces 65270-30000.

65270-43D00

$58.75

36

WASHER | A,B This part replaces 08322-11088.

08322-01087

$2.13

37

NUT | A,B

09159-08016

Unavailable
