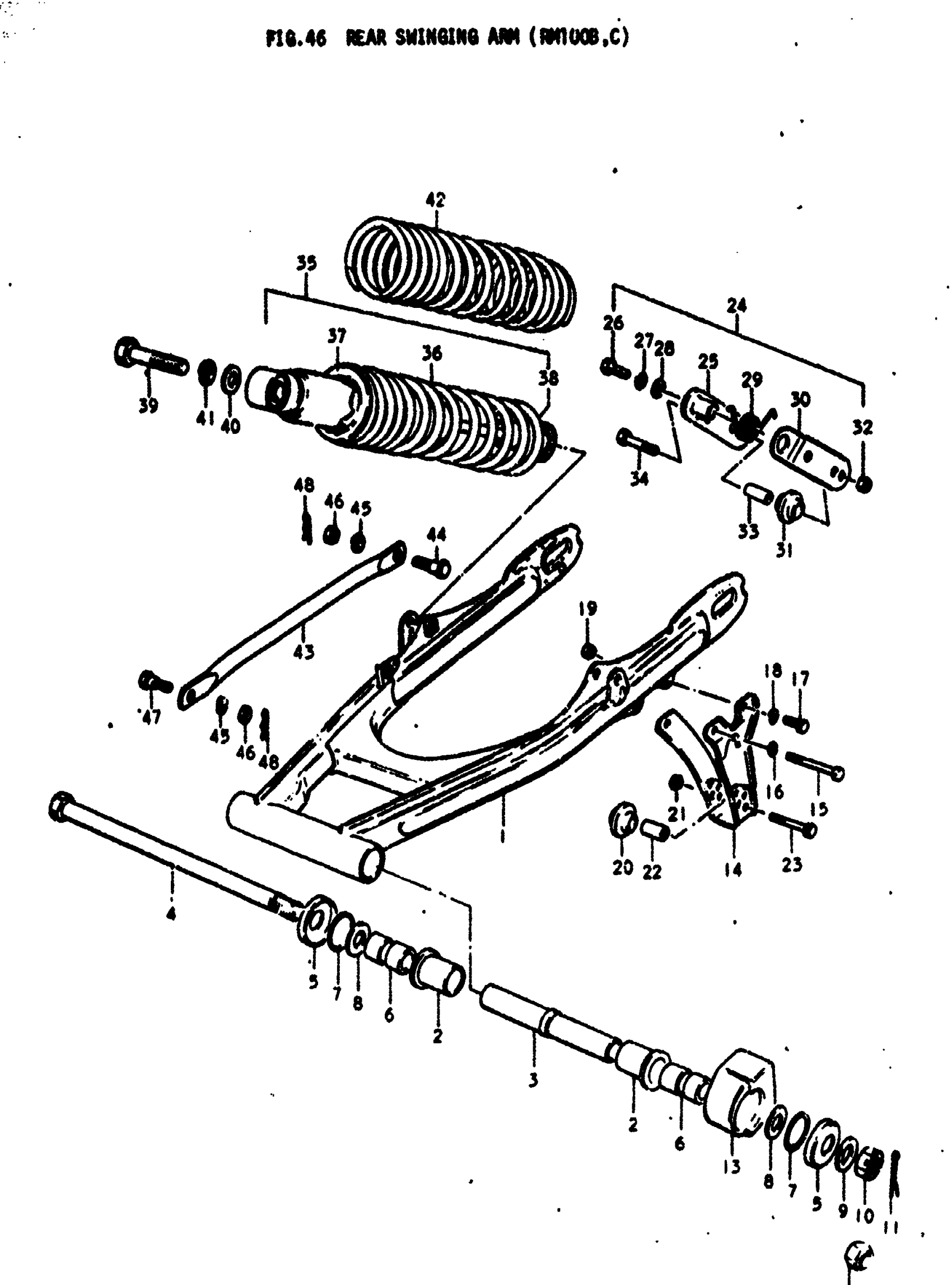

Find the part on the Rear Swinging ARM (RM100B diagram for your 1978 Suzuki RM100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Suzuki RM100 Rear Swinging ARM (RM100B Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR SWINGING ARM SET | B This part replaces 61100-41831-019.

61100-41832-019

1
Out of stock

1

REAR SWINGING ARM SET | C; Includes Item(s) 2 - 3

61100-41860-019

1
Out of stock

2

BUSHING | B,C

09307-18002

2
Out of stock

3

SPACER, CENTER | B,C

61280-28000

1
Out of stock

4

SHAFT, PIVOT | B; TO 6:211-41301 USED WITH 08319-21128 This part replaces 61211-41300.

61211-41301

1
Out of stock

4

SHAFT, PIVOT | B,C

61211-41301

1
Out of stock

5

COVER | B,C

61262-09200

2
Out of stock

6

SPACER | B,C

61251-28000

2
Out of stock

7

.O-RING (D:3,ID:24.5) | B,C This part replaces 09280-24001.

09280-24003

2
Out of stock

8

THRUST WASHER | B,C; 12.5x24x2.3

09160-12005

2
Out of stock

9

WASHER | B,C This part replaces 08322-11128.

08322-01127

1
Out of stock

10

NUT | B This part replaces 08314-41128.

08314-4012A

1
Out of stock

11

PIN | B This part replaces 04111-30208.

04111-3020A

1
Out of stock

12

NUT | B,C This part replaces 08319-21128.

08319-2112A

1
Out of stock

13

BUFFER, CHAIN DEFENSE | B; TO 61273-41301 This part replaces 61273-41300.

61273-41301

1
Out of stock

13

BUFFER, CHAIN DEFENSE | C

61273-41301

1
Out of stock

14

GUIDE, CHAIN | B This part replaces 61340-41101.

61340-41400

1
Out of stock

15

BOLT | B This part replaces 01107-06508.

01500-06507

1
Out of stock

16

1

$2.28

In stock

17

BOLT | B This part replaces 01107-06128.

01500-06127

1
Out of stock

18

1

$2.28

In stock

19

.NUT | B This part replaces 08310-11068.

08310-00067

1
Out of stock

20

ROLLER | B This part replaces 61345-41100.

61345-41101

1
Out of stock

21

NUT | B

09159-06018

1
Out of stock

22

SPACER | B; 6.5x10.5x22.5

09180-06067

1
Out of stock

23

BOLT | B This part replaces 01107-06358.

64455-07L00

1
Out of stock

24

NO DESCRIPTION AVAILABLE | C; Includes Item(s) 25 - 34 This part replaces 61300-41810.

61300-41811

—
Out of stock

25

CHAIN TENSIONER | C This part replaces 61350-41300.

61350-41301

1
Out of stock

26

BOLT | C This part replaces 01107-06128.

01500-06127

1
Out of stock

27

1

$2.28

In stock

28

WASHER | C; 6.5x18x1.6 This part replaces 09160-06007.

09160-06084

1
Out of stock

29

SPRING | C

09448-25003

1
Out of stock

30

TENSIONER OUT P | C This part replaces 61352-41300.

61352-41301

1
Out of stock

31

ROLLER | C This part replaces 61345-41100.

61345-41101

2
Out of stock

32

.NUT | C This part replaces 08319-21068.

08319-2106A

2
Out of stock

33

SPACER | C; 6.5x10.5x22.5

09180-06067

2
Out of stock

34

BOLT | C This part replaces 01107-06358.

64455-07L00

2
Out of stock

35

SHOCK ABSORBER ASSY, REAR | B

62100-41430

2
Out of stock

35

SHOCK ABSORBER ASSY, REAR | B; F.NO.17781~

62100-41431

2
Out of stock

35

SHOCK ABSORBER ASSY, REAR | C; Includes Item(s) 36 - 38

62100-41440

2
Out of stock

36

SPRING | B

62211-41430

—
Out of stock

36

SPRING | B; F.NO.17781~

62211-41431

—
Out of stock

36

SPRING | C

62211-41440

—
Out of stock

37

SEAT, UPPER | B

62249-41430

—
Out of stock

37

SEAT, UPPER | C

62191-41650

2
Out of stock

38

SEAT, LOWER | B

62225-41430

—
Out of stock

38

SEAT, LOWER | C

62225-40600

2
Out of stock

39

BOLT 10X 40 | B,C; 10x40.5 This part replaces 09100-10096.

09100-10184

4
Out of stock

40

WASHER | B,C This part replaces 08322-11108.

08322-01107

4
Out of stock

41

LOCK WASHER | B,C This part replaces 08321-21108.

08321-01107

4
Out of stock

42

SPRING, SHOCK ABSORBER | B; OPT

62211-41730

—
Out of stock

43

TORQUE LINK REA | B,C This part replaces 64311-28000.

64311-28000-019

1
Out of stock

44

BOLT | B,C

09111-08013

1
Out of stock

45

2

$2.28

In stock

46

NUT | B,C

09140-08008

2
Out of stock

47

BOLT | B,C

09111-08015

1
Out of stock

48

CLIP | B,C This part replaces 09385-10001.

09385-10005

2
Out of stock
