Partiron

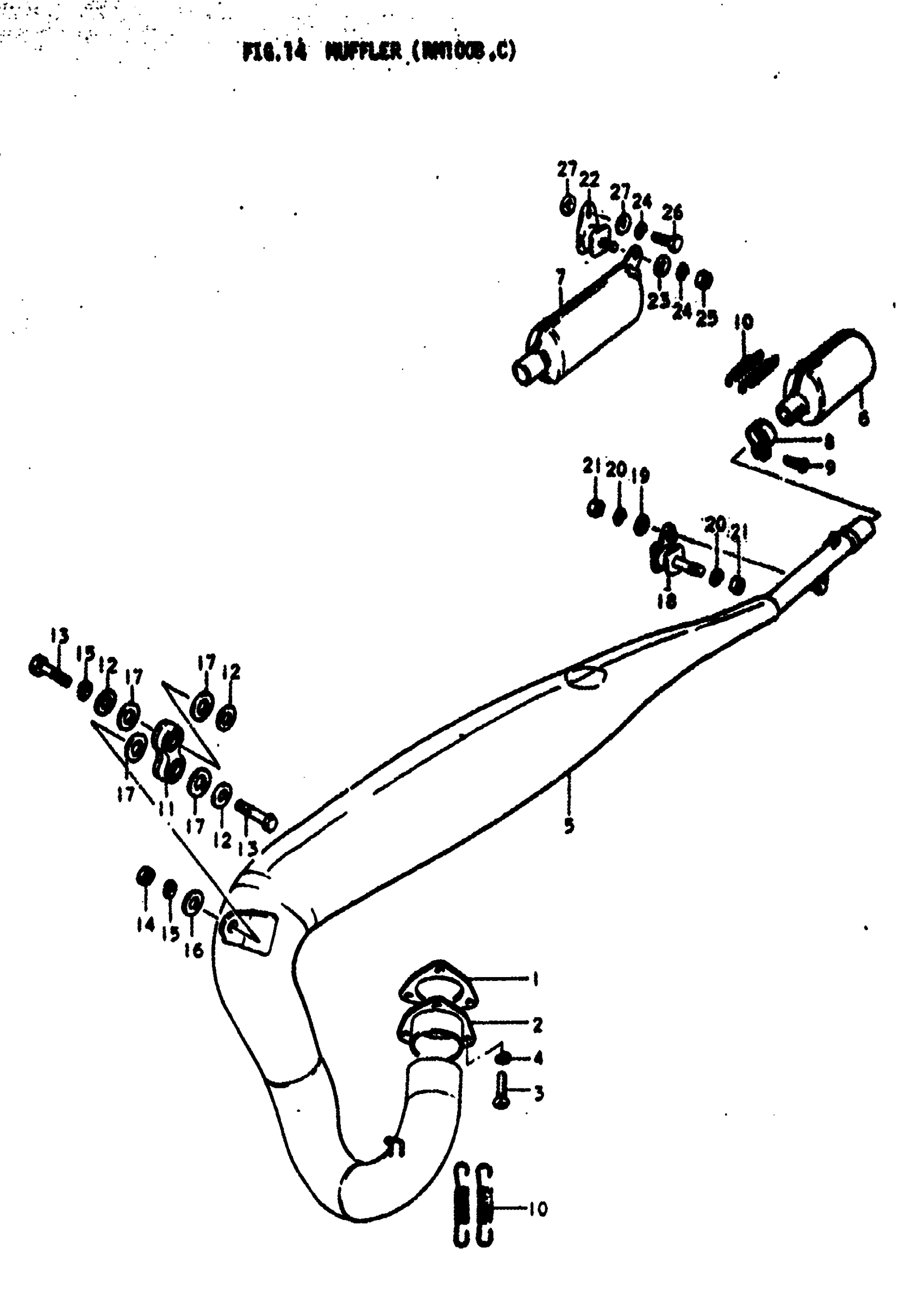

Suzuki RM100 (1978) MUFFLER (RM100B Diagram

#

Description
Price

1

GASKET,EXH FLAN | B,C This part replaces 14181-41300.

14181-40200-H17

Unavailable

2

FLANGE, EXHAUST PIPE | B,C

14170-41300

Unavailable

3

SCREW | B,C This part replaces 02112-06168.

02112-06167

$1.49

4

LOCK WASHER | B,C This part replaces 08321-21068.

08321-01067

$2.13

5

MUFFLER, 1ST | B

14310-41300

Unavailable

5

MUFFLER, 1ST | C

14310-41600

Unavailable

6

NO DESCRIPTION AVAILABLE | B; TO 14330-41760 This part replaces 14330-41300.

14330-41760-H01

Unavailable

7

NO DESCRIPTION AVAILABLE | C This part replaces 14330-41601.

14330-41601-H01

Unavailable

8

CLAMP | B

09402-25601

Unavailable

9

BOLT | B This part replaces 09128-06006.

09128-06057

$1.65

10

SPRING | B,C

09443-11002

$3.10

11

DAMPER, MUFFLER | B,C

14770-40000

Unavailable

12

WASHER | B,C; 8.5x23x1.2 This part replaces 09160-08035.

09160-08130

$2.03

13

BOLT | B,C This part replaces 01107-08358.

01500-0835B

$3.04

14

NUT | B,C This part replaces 08310-12088.

08310-00087

$2.13

15

.LOCK WASHER | B,C This part replaces 08321-21088.

08321-01087

$2.13

16

WASHER | BC This part replaces 08322-11088.

08322-01087

$2.13

17

WASHER | B,C

09161-13001

Unavailable

18

DAMPER, MUFFLER SUPPORT REAR | B

14770-41320

Unavailable

19

WASHER | B This part replaces 08322-21088.

08322-01087

$2.13

20

.LOCK WASHER | B This part replaces 08321-21088.

08321-01087

$2.13

21

NUT | B This part replaces 08310-12088.

08310-00087

$2.13

22

DAMPER, MUFFLER SUPPORT REAR | C

14770-41101

$17.14

23

WASHER | C This part replaces 08322-11088.

08322-01087

$2.13

24

.LOCK WASHER | C This part replaces 08321-21088.

08321-01087

$2.13

25

NUT | C This part replaces 08310-12088.

08310-00087

$2.13

26

BOLT, REAR | C This part replaces 01107-08208.

01500-08207

$2.53

27

WASHER (8.5X20X1.6) | C; 8.5x20x1.6 This part replaces 09160-08010.

09160-08054

$1.49
