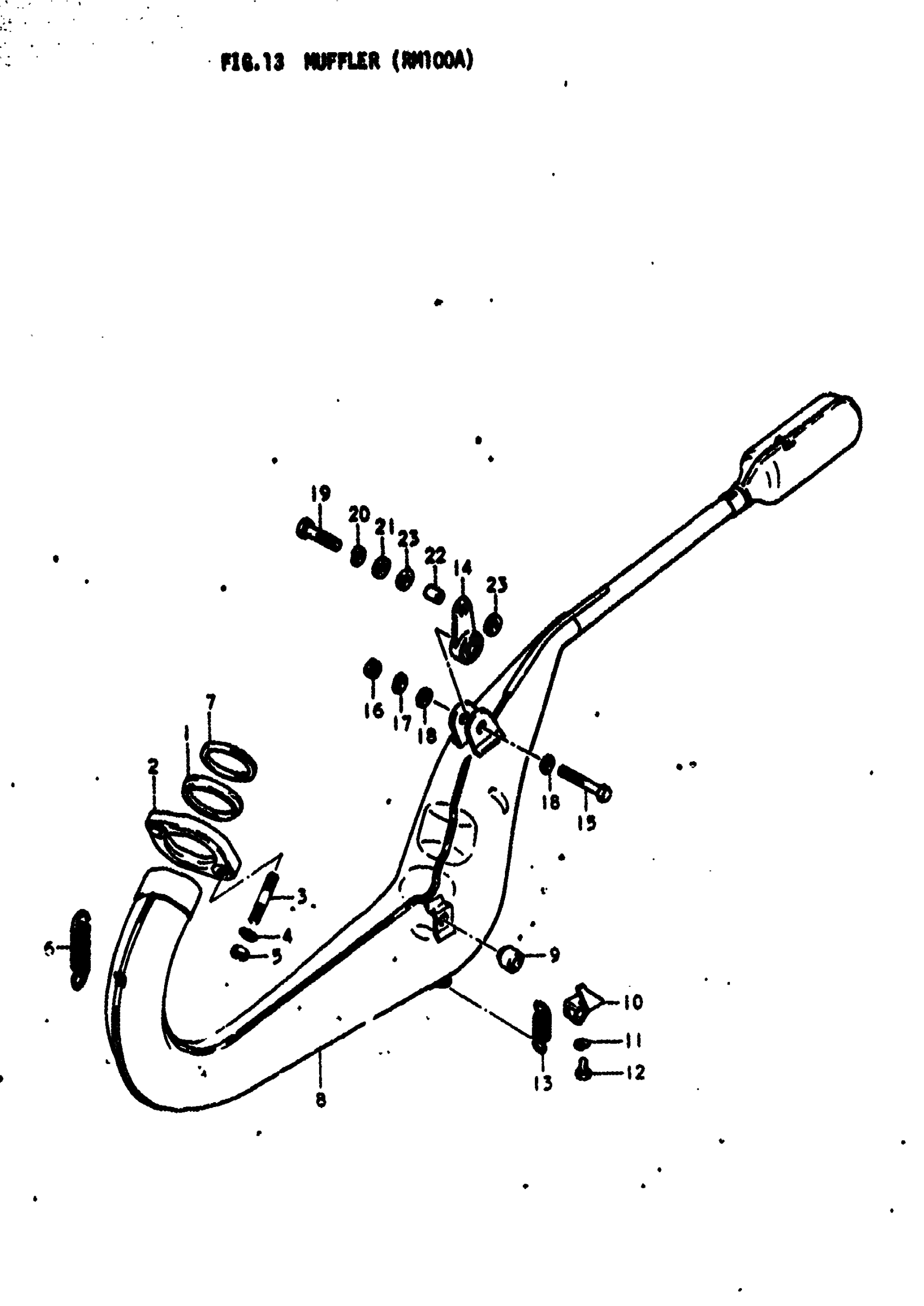

Suzuki RM100 (1978) MUFFLER (RM100A) Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE

14181-28080

$10.11

2

CLAMP, EXHAUST PIPE

14182-28000

$16.49

3

STUD BOLT This part replaces 01421-06208.

01421-0620A

$1.91

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

.NUT This part replaces 08311-11068.

08310-00067

$2.13

6

SPRING

09443-11002

$3.10

7

CUSHION,EXH PIP This part replaces 14184-28010.

14184-28011

$4.62

8

MUFFLER

14310-41001

Unavailable

9

CUSHION

09321-10002

$2.22

10

BRACKET, MUFFLER STOPPER

14476-28000

Unavailable

11

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

12

BOLT This part replaces 01112-06108.

01500-06107

$2.06

13

SPRING

09443-14002

$2.12

14

DAMPER, MUFFLER SUPPORT

14770-41000

Unavailable

15

BOLT This part replaces 01122-08358.

01500-0835B

$3.04

16

NUT This part replaces 08312-11088.

08310-00087

$2.13

17

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

18

WASHER This part replaces 08322-11088.

08322-01087

$2.13

19

BOLT This part replaces 01122-08258.

01500-08257

$2.50

20

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

21

WASHER (8.5X26X1.6) | 8.2x20x1 This part replaces 09160-08005.

09160-08134

$2.03

22

SPACER, TAIL COVER RR RR | 8.6x13.9x9 This part replaces 09180-08050.

09180-08199

$2.12

23

CUSHION This part replaces 09320-14006.

14761-03450

$1.80
