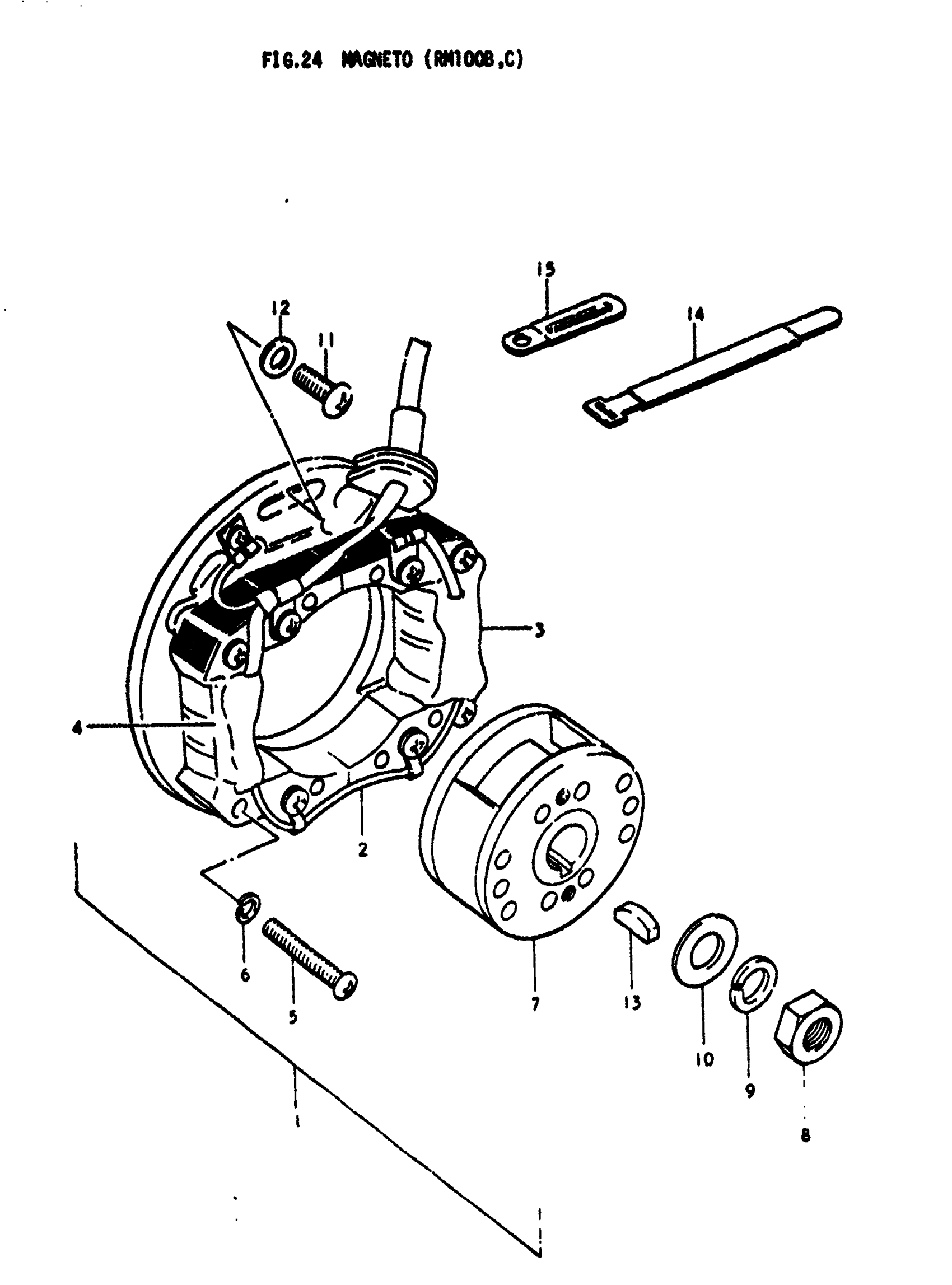

Suzuki RM100 (1978) MAGNETO (RM100B Diagram

#

Description
Price

1

STATOR ASSY | B This part replaces 32100-41311.

32101-41111

Unavailable

1

MAGNETO ASSY | C; Includes Item(s) 2 - 7

32100-41610

Unavailable

2

STATOR ASSY | B,C This part replaces 32101-41110.

32101-41111

Unavailable

3

COIL, PRIMARY | B,C

32140-28601

Unavailable

4

COIL, PULSER | B,C

32150-41110

Unavailable

5

SCREW | B,C This part replaces 02112-05308.

02112-0530A

$2.05

6

LOCK WASHER | B,C This part replaces 08321-21058.

08321-0105A

$1.84

7

ROTOR | B

32102-41311

Unavailable

7

ROTOR | C

32102-41610

Unavailable

8

NUT | B,C This part replaces 09140-10003.

09140-10041

$2.38

9

LOCK WASHER | B,C This part replaces 08321-21108.

08321-01107

$1.84

10

WASHER | B,C This part replaces 08322-21108.

08322-01107

$2.15

11

SCREW | B,C This part replaces 02112-06208.

02112-06207

$1.78

12

WASHER | B,C This part replaces 08322-21068.

08322-01067

$2.13

13

KEY | B,C This part replaces 08341-31049.

09420-04008

$3.42

14

CLAMP | B,C; L:110 This part replaces 09407-11302.

09407-18302

$2.28

15

CLAMP | B,C This part replaces 09404-06402.

09404-06039

$1.74
