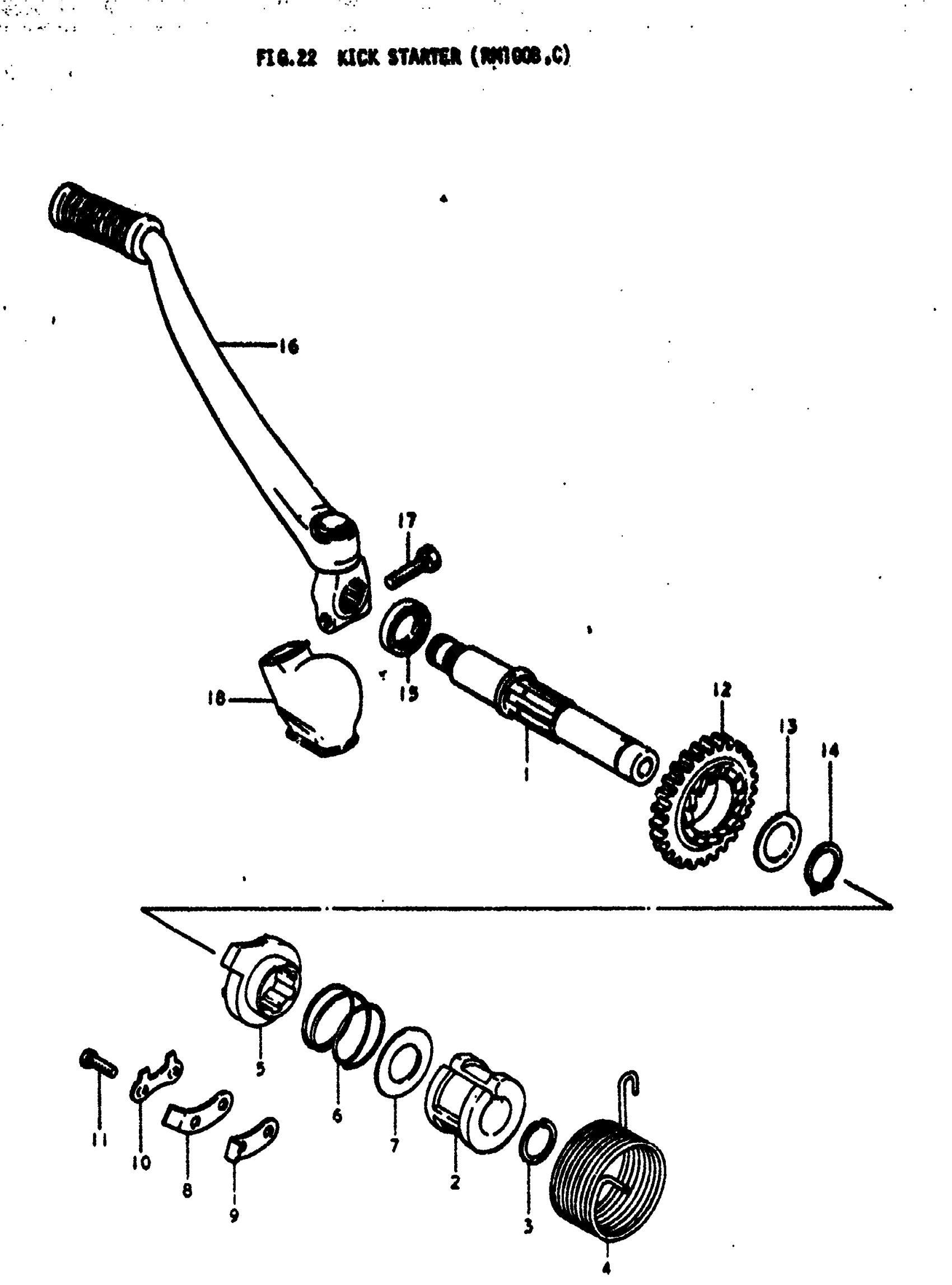

Suzuki RM100 (1978) KICK STARTER (RM100B Diagram

#

Description
Price

1

SHAFT, KICK STARTER | B,C

26211-41300

Unavailable

2

GUIDE, SHAFT SPRING | B,C

26221-41100

$8.28

3

CIRCLIP | B,C

09380-17001

$1.98

4

SPRING | B,C

09448-45008

$6.99

5

STARTER, KICK | B,C This part replaces 26231-30000.

26231-22A10

$63.88

6

SPRING | B,C

09440-32002

$2.27

7

PLATE | B,C

08211-17342

$2.72

8

GUIDE, KICK STARTER | B,C

26232-30000

Unavailable

9

STOPPER, KICK STARTER | B,C

26233-30000

Unavailable

10

WASHER | B,C

09169-06003

$1.78

11

BOLT | B,C This part replaces 01107-06128.

01500-06127

$1.97

12

GEAR, KICK DRIVE (NT:28) | B,C; NT:26 This part replaces 26240-41300.

26240-40201

Unavailable

13

WASHER (22X28X1.0) | B,C; 22x28x1 This part replaces 08211-22281.

09181-22139

$3.48

14

CIRCLIP | B,C

09380-22006

$3.10

15

OIL SEAL (16X24X5) | B,C

09285-16003

$3.42

16

LEVER ASSY,KICK | B; TO 26300-41101 This part replaces 26300-41100.

26300-12B05

Unavailable

16

LEVER ASSY,KICK | C This part replaces 26300-41101.

26300-12B05

Unavailable

17

BOLT, FRONT | B; TO 09100-08134 This part replaces 09100-08114.

09101-08003

Unavailable

17

BOLT | C; 8x25

09100-08134

$2.46

18

COVER,KICK STAR | B,C This part replaces 26341-41100.

26341-41102

$7.54
