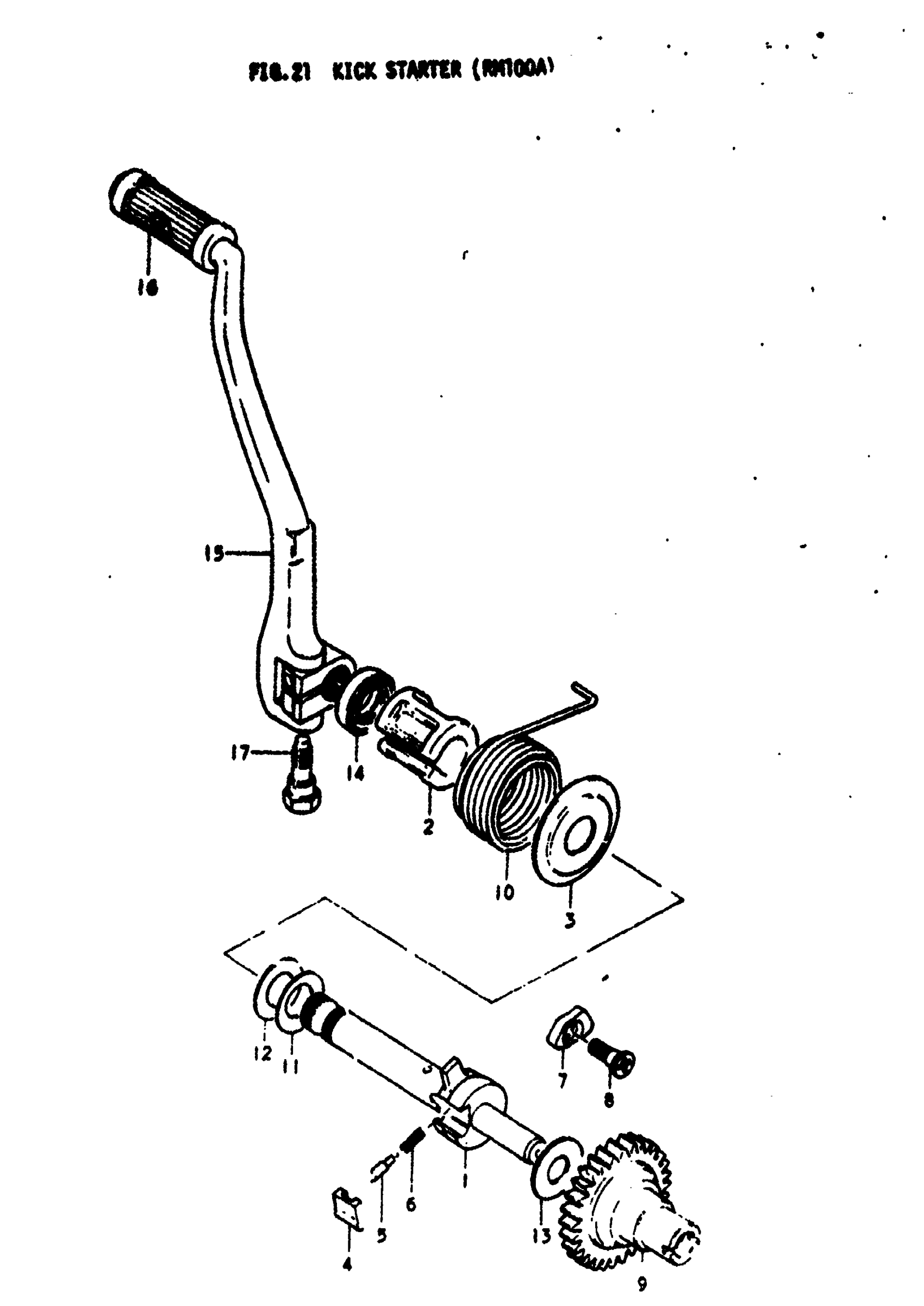

Suzuki RM100 (1978) KICK STARTER (RM100A) Diagram

NO DESCRIPTION AVAILABLE This part replaces 26211-28300.

26211-28301

Unavailable

GUIDE, KICK STARTER

26221-23030

$10.07

HOLDER, SPRING

26222-28300

$6.38

PAWL, KICK STARTER

26231-20000

$7.74

PIN

09209-05011

$2.20

SPRING

09440-04010

$1.54

LIFTER, PAWL

26232-01000

$6.38

SCREW

09139-06002

$2.38

GEAR, KICK STARTER DRIVE | NT:31

26241-28302

Unavailable

SPRING

09448-45004

$7.31

WASHER | 16x30.5x0.5

09160-16016

$2.04

WASHER | 16x30.5x0.3

09164-16001

$2.12

WASHER | 12x30x1.5

08211-12302

$2.16

SEAL,OIL(16X30X | 16x30x8 This part replaces 09285-16002.

09285-16005

$2.75

LEVER ASSY, KICK STARTER | Includes Item(s) 16 - 17

26300-28303

Unavailable

RUBBER,KICK STA This part replaces 26352-01000.

26352-01020

$3.25

BOLT

09119-08010

Unavailable
