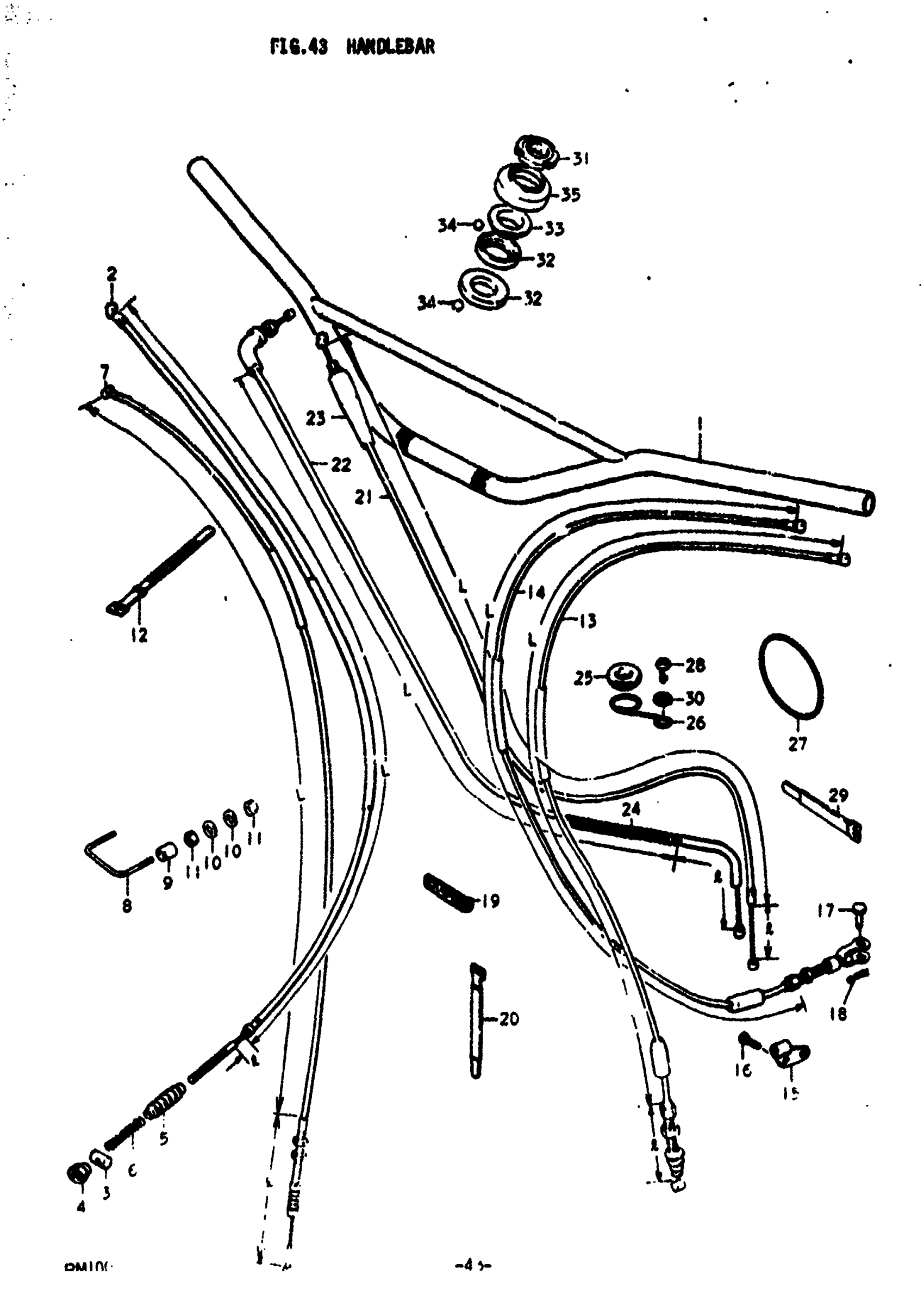

Suzuki RM100 (1978) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR | A

56110-41000

Unavailable

1

NO DESCRIPTION AVAILABLE | B This part replaces 56110-41301.

56110-41311

Unavailable

1

NO DESCRIPTION AVAILABLE | C This part replaces 56110-41310.

56110-41311

Unavailable

2

CABLE ASSY, FRONT BRAKE | A,B; L:1130, l:69; Includes Item(s) 3 - 6

58100-28600

Unavailable

3

PIN | A,B

09209-10001

$1.49

4

NUT | A,B

09150-05101

$3.04

5

DUST SEAL | A,B

09287-07001

$2.00

6

SPRING | A,B

09440-06003

$2.44

7

CABLE ASSY, FRONT BRAKE | C; L:1140, l:64

58110-41620

Unavailable

8

GUIDE, BRAKE CABLE | C

58626-41000

Unavailable

9

ROLLER | C

09306-04002

Unavailable

10

WASHER | C This part replaces 08322-21038.

08322-01037

$1.93

11

NUT | C This part replaces 08310-11038.

08310-0003B

$2.83

12

CLAMP | A

09410-00032

Unavailable

13

CABLE ASSY, CLUTCH | A; L:980, l:110

58200-28301

Unavailable

14

CABLE ASSY, CLUTCH | B,C; L;1050

58200-41301

Unavailable

15

STOPPER, CLUTCH CABLE | B,C

58634-41300

Unavailable

16

SCREW | B,C This part replaces 02112-06108.

02112-06107

$1.49

17

PIN, CLUTCH CABLE | B,C

09200-06004

$2.20

18

.COTTER PIN | B,C This part replaces 04111-20158.

04111-2015A

$1.49

19

CLAMP | B,C This part replaces 09404-06401.

09404-06039

$1.74

20

CLAMP | B,C This part replaces 09407-18301.

09407-18302

$2.28

21

CABLE ASSY, THROTTLE | A; L:1150, l:117

58310-41000

Unavailable

22

CABLE,THROTTLE | B,C; L:1130, l:138 This part replaces 58300-41612.

58300-41X02

Unavailable

23

DUST SEAL | A

58333-40000

Unavailable

24

PROTECTOR, THROTTLE CABLE | B,C

58399-27100

$3.78

25

GROMMET | A

09308-12002

$1.99

26

GUIDE, CLUTCH CABLE | A

09403-13401

$2.30

27

O RING, CLUTCH CABLE GUIDE | A

09280-76001

Unavailable

28

SCREW | A This part replaces 02112-06128.

02112-06127

$1.84

29

CLAMP | A This part replaces 09407-11302.

09407-18302

$2.28

30

LOCK WASHER | A This part replaces 08321-21068.

08321-01067

$2.13

31

NUT, STEERING STEM | A,B,C

51631-28000

$17.37

32

INNER PACE, STEERING LOWER | A,B,C

51611-33002

$13.81

33

OUTER RACE, STEERING UPPER | A,B,C

51621-30001

Unavailable

34

STEEL BALL | A,B,C

06111-08003

$1.49

35

DUST SEAL | A,B,C

51643-30000

Unavailable
