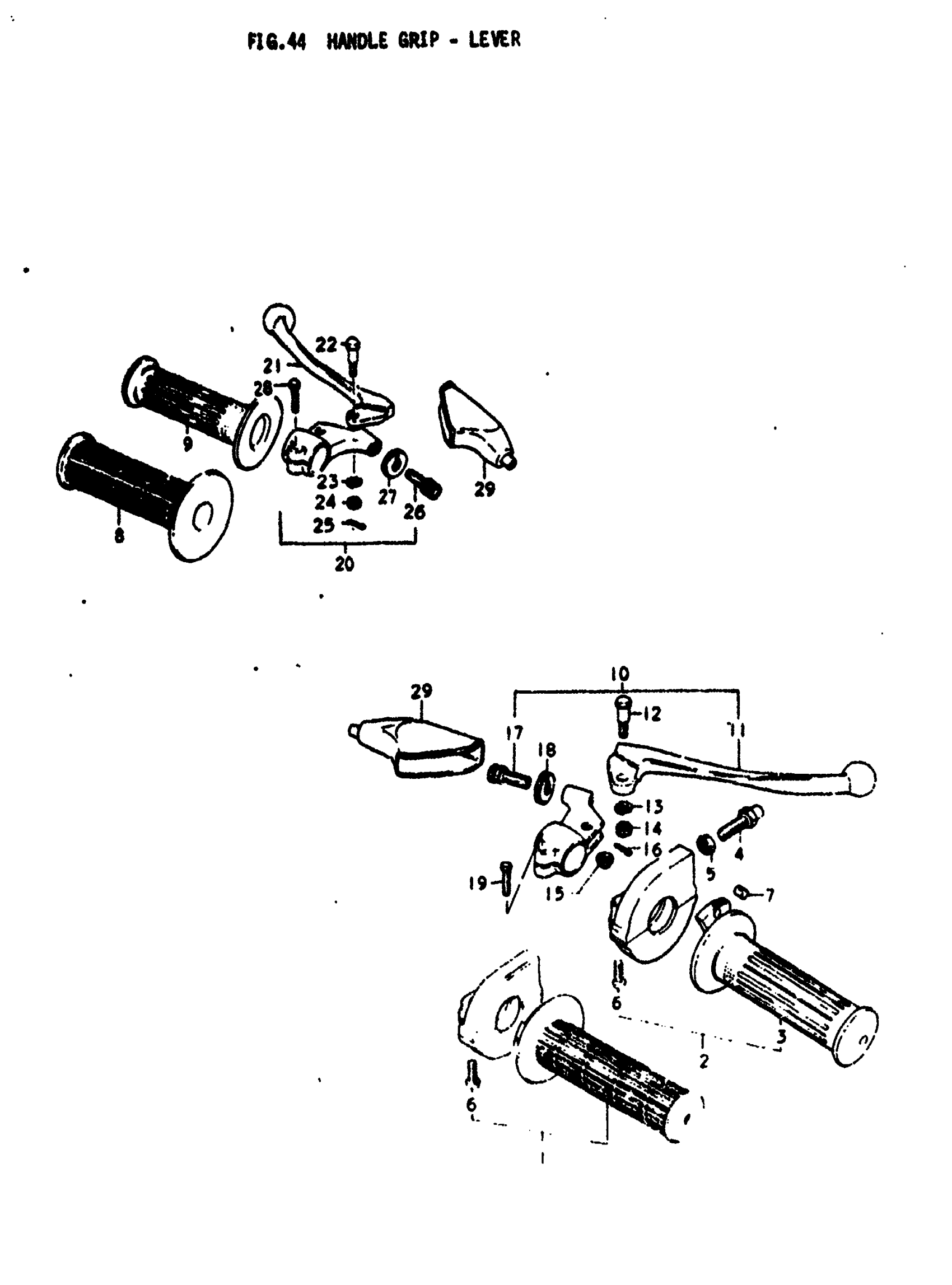

Suzuki RM100 (1978) HANDLE GRIP - LEVER Diagram

#

Description
Price

1

GRIP ASSY, THROTTLE | A

57100-40011

Unavailable

2

GRIP ASSY, THROTTLE | B,C; Includes Item(s) 3 - 6

57100-41601

Unavailable

3

GRIP, THROTTLE | B,C This part replaces 57110-41110.

57110-40200

Unavailable

4

ADJUSTER, THROTTLE CABLE | A

57116-40011

Unavailable

5

NUT | A This part replaces 08312-32088.

08310-00087

$2.13

6

SCREW | A,B,C This part replaces 02112-05168.

02112-05167

$1.97

7

PIECE, THROTTLE AND | A,B,C

58631-07010

$3.56

8

GRIP LH | A This part replaces 57211-25701.

57211-27C00

$12.28

9

GRIP LH | B,C This part replaces 57211-41110.

57211-27C00

$12.28

10

LEVER ASSY, BRAKE | A; FROM 57300-11011 This part replaces 57300-11012.

57300-32500

Unavailable

10

LEVER ASSY, BRAKE | B; FROM 57300-28310 This part replaces 57300-28311.

57300-32500

Unavailable

10

LEVER ASSY, BRAKE | C; Includes Item(s) 11 - 19

57300-32500

Unavailable

11

LEVER, BRAKE | A,B; FROM 57420-18011 This part replaces 57420-11012.

57420-29400

Unavailable

11

LEVER, BRAKE | C

57420-29400

Unavailable

12

BOLT | A,B,C This part replaces 57431-11010.

57431-11013

$6.31

13

LOCK WASHER | A,B This part replaces 08321-21068.

08321-01067

$2.13

14

NUT | A,B

57433-11010

$5.64

15

.NUT | C This part replaces 08319-21068.

08319-2106A

$1.91

16

PIN | A,B This part replaces 04111-16158.

04111-1620A

$1.49

17

ADJUSTER, CABLE | A,C

57441-11010

$5.62

17

ADJUSTER, CABLE | B

57441-26010

$4.48

18

NUT | A,B,C

57442-11010

$2.79

19

SCREW | A,B,C This part replaces 02112-06206.

02112-0620A

$1.49

20

NO DESCRIPTION AVAILABLE | A,B; FROM 57500-28310 This part replaces 57500-28311.

57500-11012

Unavailable

20

LEVER ASSY, CLUTCH | C; Includes Item(s) 21 - 28 This part replaces 57500-29400.

57500-29401

Unavailable

21

LEVER, CLUTCH | A,B; FROM 57620-31010

57620-45010

Unavailable

21

LEVER, CLUTCH | C This part replaces 57620-29400.

57620-45010

Unavailable

22

BOLT | A,B,C This part replaces 57431-11010.

57431-11013

$6.31

23

LOCK WASHER | A,B,C This part replaces 08321-21068.

08321-01067

$2.13

24

NUT | A,B,C

57433-11010

$5.64

25

PIN | A,B,C This part replaces 04111-16158.

04111-1620A

$1.49

26

ADJUSTER, CABLE | A,B,C

57441-26010

$4.48

27

NUT | A,B,C

57442-11010

$2.79

28

SCREW | A,B,C This part replaces 02112-06208.

02112-06207

$1.78

29

COVER, CLUTCH LEVER | A,B,C; FROM 57341-40000 This part replaces 57341-40001.

57341-40003

$5.56
