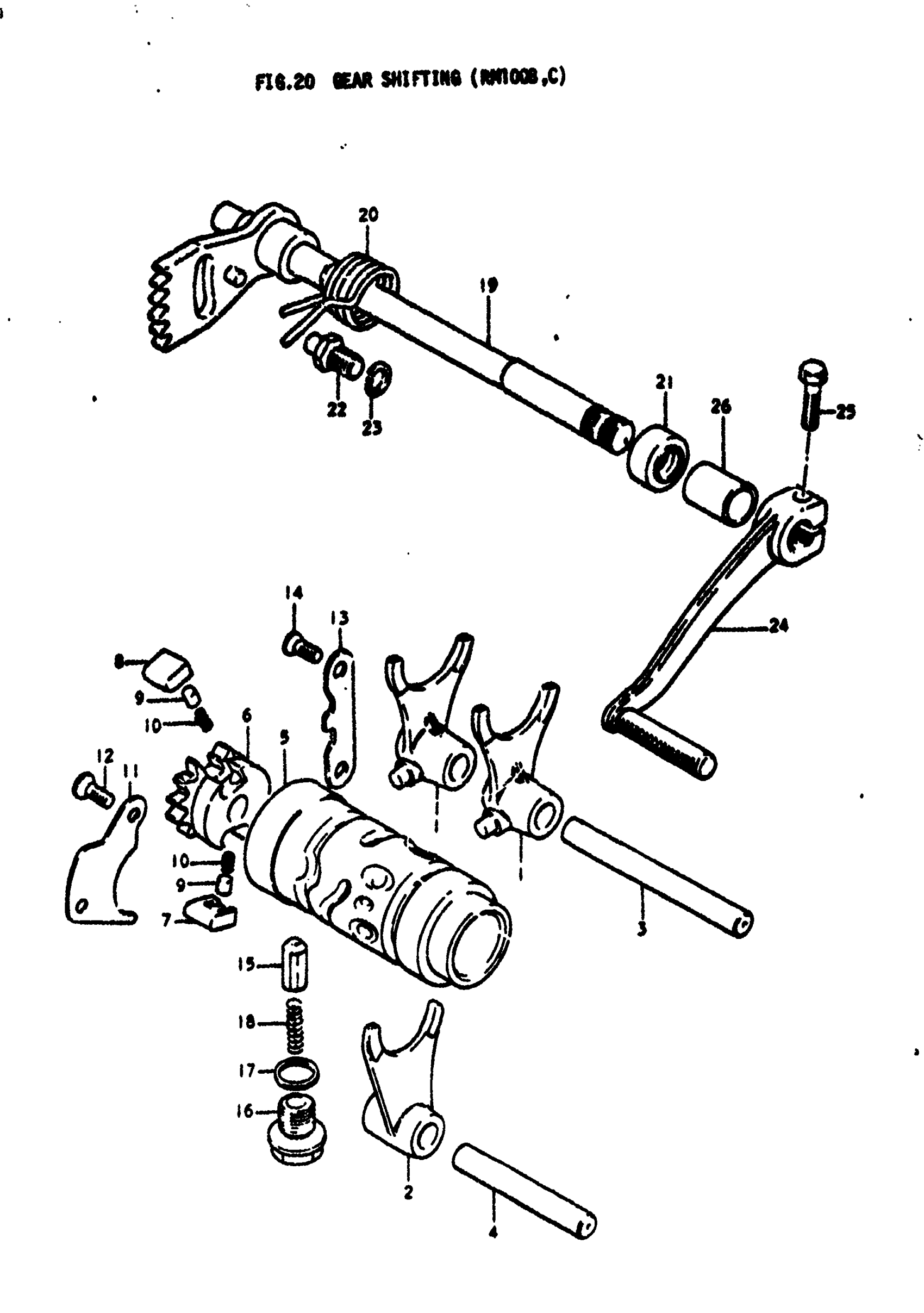

Suzuki RM100 (1978) GEAR SHIFTING (RM100B Diagram

#

Description
Price

1

FORK, NO.1 | B,C This part replaces 25211-41300.

25211-41301

$87.70

2

NO DESCRIPTION AVAILABLE | B; TO 25221-41301 This part replaces 25221-41300.

25221-41X00

Unavailable

2

NO DESCRIPTION AVAILABLE | C This part replaces 25221-41301.

25221-41X00

Unavailable

3

SHAFT, GEAR SHI | B,C This part replaces 25411-16400.

25411-48001

Unavailable

4

SHAFT, NO.1 | B,C This part replaces 25421-40000.

25421-35410

$23.47

5

CAM | B,C This part replaces 25310-41300.

25310-14100

Unavailable

6

GEAR, GEAR SHIFT CAM DRIVEN | B,C This part replaces 25322-11000.

25322-31310

$26.93

7

PAWL, GEAR SHIFT NO.1 | B,C This part replaces 25323-11000.

25323-34201

$7.22

8

PAWL, GEAR SHIFT NO.2 | B,C This part replaces 25324-11000.

25324-34201

$7.22

9

PIN | B,C

09261-05003

$1.54

10

SPRING | B,C

09440-04003

$1.54

11

LIFTER, PAWL | B,C

25331-11001

$6.38

12

SCREW | B,C This part replaces 02122-06128.

02122-06127

$1.84

13

GUIDE, CAM | B,C

25341-40001

$12.17

14

SCREW | B,C This part replaces 02122-06128.

02122-06127

$1.84

15

STOPPER, CAM | B,C This part replaces 25351-11000.

25351-11010

$7.22

16

HOLDER, STOPPER | B,C This part replaces 25352-11000.

25352-11010

$7.22

17

GASKET | B; 14.2x20.5x1.2

09168-14006

Unavailable

18

SPRING | B,C

09440-05007

$1.82

19

GEAR SHIFT SHAF | B,C This part replaces 25510-41101.

25510-41X00

Unavailable

20

SPRING | B,C

09444-26013

$3.10

21

OIL SEAL (12X22X9) | B,C This part replaces 09285-12002.

09285-12006

$6.32

22

STOPPER, ARM | B,C This part replaces 25671-01000.

25671-01011

$4.48

23

LOCK WASHER | B,C This part replaces 08321-21068.

08321-01067

$2.13

24

LEVER, GEAR SHIFTING | B,C This part replaces 25610-41301.

25610-41102

Unavailable

25

BOLT, GEAR SHIFT LINK | B,C This part replaces 01107-06206.

01500-0620A

$1.78

26

CUSHION | B,C

09320-13001

Unavailable
