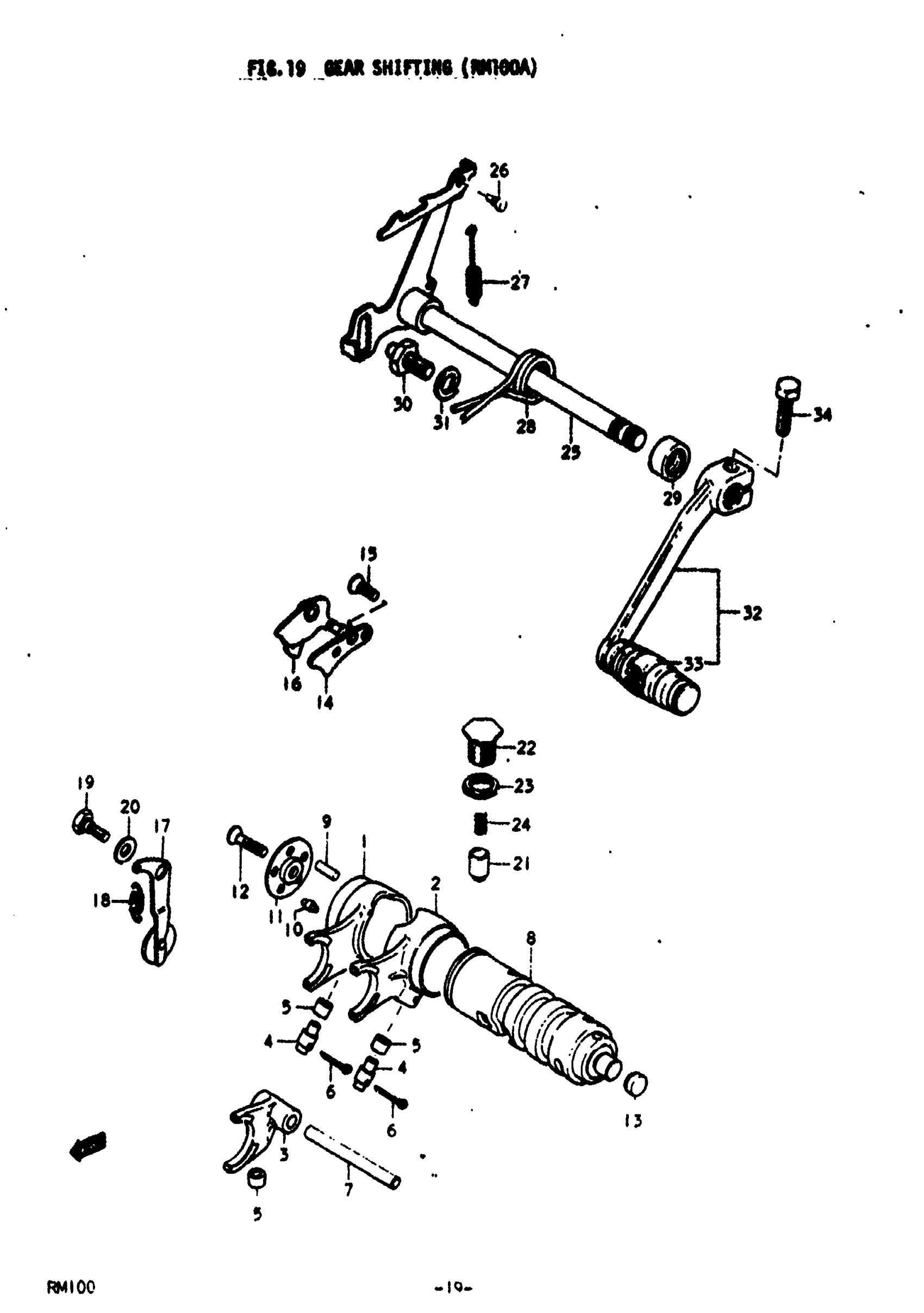

Suzuki RM100 (1978) GEAR SHIFTING (RM100A) Diagram

#

Description
Price

1

FORK, GEAR SHIFTING NO.1

25211-28300

Unavailable

2

FORK,GEAR SHIFT This part replaces 25221-28001.

25221-28002

Unavailable

3

FORK, GEAR SHIFTING NO.3

25231-28001

Unavailable

4

PIN

09209-10002

Unavailable

5

ROLLER | 6x9.8x6 This part replaces 09180-06004.

09180-06086

$2.50

6

CITTER PIN This part replaces 04111-25208.

04111-2520A

$1.49

7

SHAFT, GEAR SHIFTING

25411-05100

$5.50

8

CAM, GEAR SHIFTING

25310-28701

Unavailable

9

ROLLER (4X13.8)

09261-04002

$1.72

10

PIN

09209-04012

$2.53

11

RETAINER, DRIVE PIN

25322-28030

Unavailable

12

SCREW This part replaces 02122-06208.

02122-0620A

$1.49

13

PLUG

09243-12002

Unavailable

14

GUIDE, CAM

25340-12101

Unavailable

15

SCREW This part replaces 02122-06168.

02122-06167

$1.49

16

PAWL, CAM STOPPER

25370-12101

Unavailable

17

STOPPER, CAM NO.1

25350-28001

Unavailable

18

SPRING

09443-07014

$2.22

19

BOLT

09111-06003

Unavailable

20

WASHER | 6.5x16x2.3

09160-06022

Unavailable

21

STOPPER, CAM NO.2

25351-28700

Unavailable

22

HOUSING, CAM STOPPER

25352-28700

Unavailable

23

GASKET

09168-14004

$1.83

24

SPRING

09440-05017

Unavailable

25

NO DESCRIPTION AVAILABLE This part replaces 25510-28300.

25510-283V0

Unavailable

26

PIN

09209-07012

Unavailable

27

SPRING

09443-06008

Unavailable

28

SPRING

09444-26008

$5.12

29

OIL SEAL (12X22X9) | 12x18.3x5 This part replaces 09285-12002.

09285-12006

$6.32

30

STOPPER, ARM

25671-19000

Unavailable

31

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

32

LEVER ASSY,GEAR | TO 25600-16501; Includes Item(s) 33 This part replaces 25600-16500.

25600-16521

$49.59

33

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

$3.74

34

BOLT This part replaces 01112-06208.

01500-06207

$2.28
