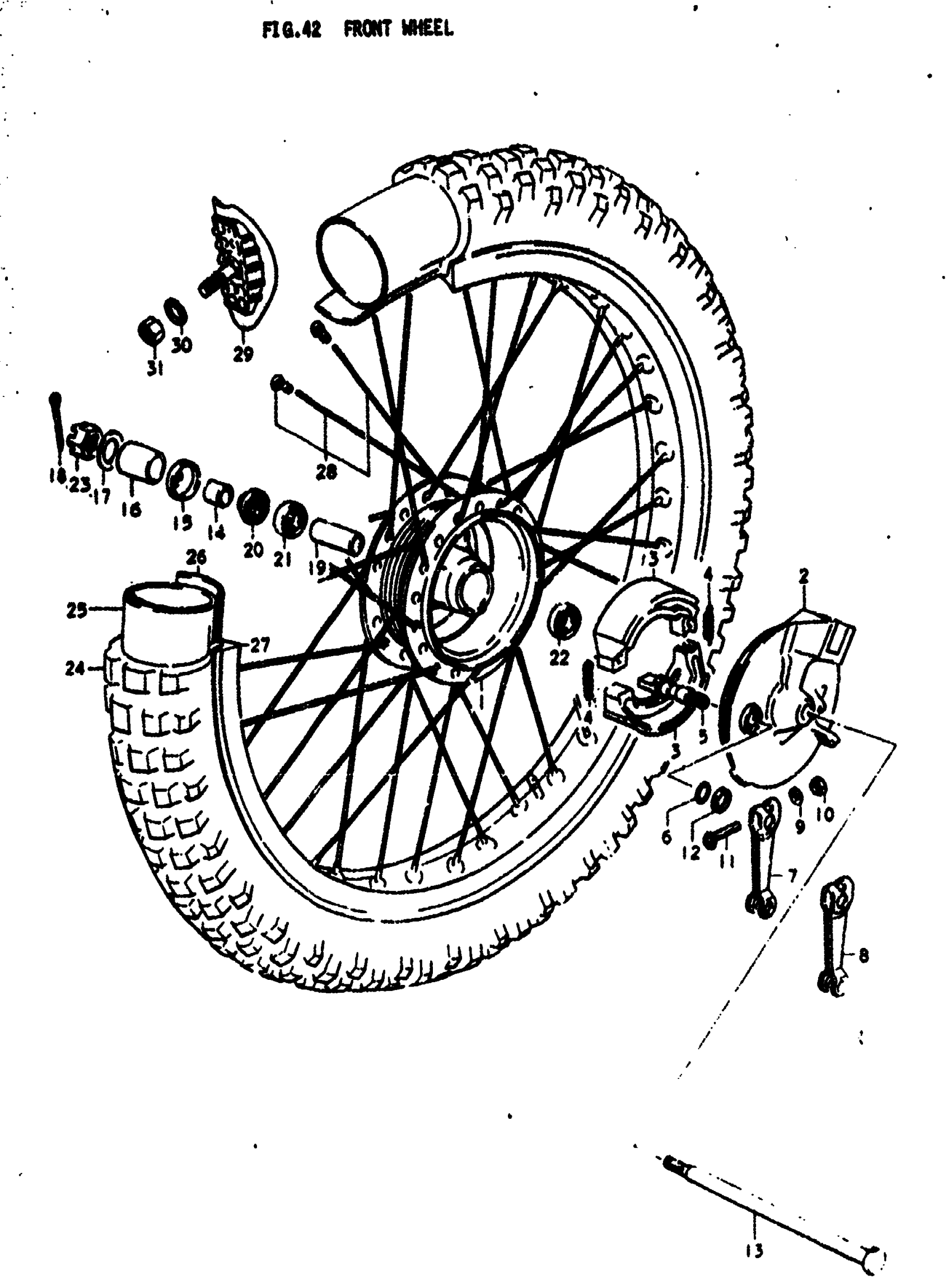

Suzuki RM100 (1978) FRONT WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | A,B,C This part replaces 54110-28301.

54110-28303

Unavailable

2

PANEL, FRONT HUB | A,B

54210-28302

Unavailable

2

PANEL, FRONT HUB | C This part replaces 54210-41610.

54210-41611

Unavailable

3

SHOE/SPRING SET | A,B,C This part replaces 54410-01005.

54400-35860

$36.32

4

SPRING | A,B,C This part replaces 09443-07001.

09443-07025

$2.08

5

CAM, BRAKE | A,B,C

54441-01002

$18.80

6

DUST SEAL | A,B,C

09280-12001

$2.90

7

LEVER, BRAKE CAM | A,B

54451-03002

$16.87

8

LEVER, BRAKE CAM | C

54451-38000

Unavailable

9

WASHER | A,B,C This part replaces 08322-21068.

08322-01067

$2.13

10

.NUT | A,B,C This part replaces 08310-11068.

08310-00067

$2.13

11

BOLT, ADJUSTER | A,B,C; 6x31 This part replaces 09100-06050.

09100-06150

$2.30

12

WASHER | A,B,C; 12.5x20x1

09160-12011

$1.54

13

AXLE, FRONT | A,B

54711-28303

Unavailable

13

AXLE,FRONT | C This part replaces 64711-43000.

64711-43001

$41.97

14

SPACER, RH | A,B,C

09180-12052

Unavailable

15

COVER | A,B,C

54892-25500

Unavailable

16

SPACER | A,B

09180-12064

Unavailable

17

WASHER | A,B,C This part replaces 08322-11128.

08322-01127

$1.84

18

PIN | A,B,C This part replaces 04111-30308.

04111-3030A

$1.49

19

SPACER | A,B,C; 12.5x19x52

09160-12041

Unavailable

20

SEAL,OIL (18X32X7) | A,B,C This part replaces 09284-18002.

09285-18002

$5.39

21

BEARING | A,B,C This part replaces 08113-62010.

08113-6201B

$10.15

22

BEARING | A,B,C This part replaces 08143-62010.

08143-6201B

$10.80

23

NUT | A,B,C This part replaces 08314-31128.

08314-3112A

$2.41

24

TIRE, FRONT (3.00-21) | A; 3.00-21 This part replaces 55100-16511.

55100-14230

Unavailable

24

TIRE, FRONT | B; 3.00-21

55100-41310

Unavailable

24

TIRE, FRONT | C; 3.00-21

55100-41311

Unavailable

25

TIRE, FRONT | A,B,C; 3.00-21 This part replaces 55200-16510.

55200-16511

$36.73

26

PROTECTOR, INNER TUBE | A,B,C; 25x21 This part replaces 55261-16510.

55261-14540

$3.83

27

RIM, WHEEL | A,B; 1.60x21 This part replaces 55311-41020.

55311-28322

Unavailable

27

RIM, WHEEL | C; 1.60x21

55311-28322

Unavailable

28

SPOKE SET | A,B,C This part replaces 55300-28850.

55320-28700

Unavailable

29

STOPPER, BEAD | A,B This part replaces 65270-30000.

65270-43D00

$58.75

29

STOPPER, BEAD | C This part replaces 65270-30001.

65270-43D00

$58.75

30

WASHER | A,B,C This part replaces 08322-11088.

08322-01087

$2.13

31

NUT | A,B

09159-08016

Unavailable

31

NUT | C This part replaces 08310-12088.

08310-00087

$2.13
