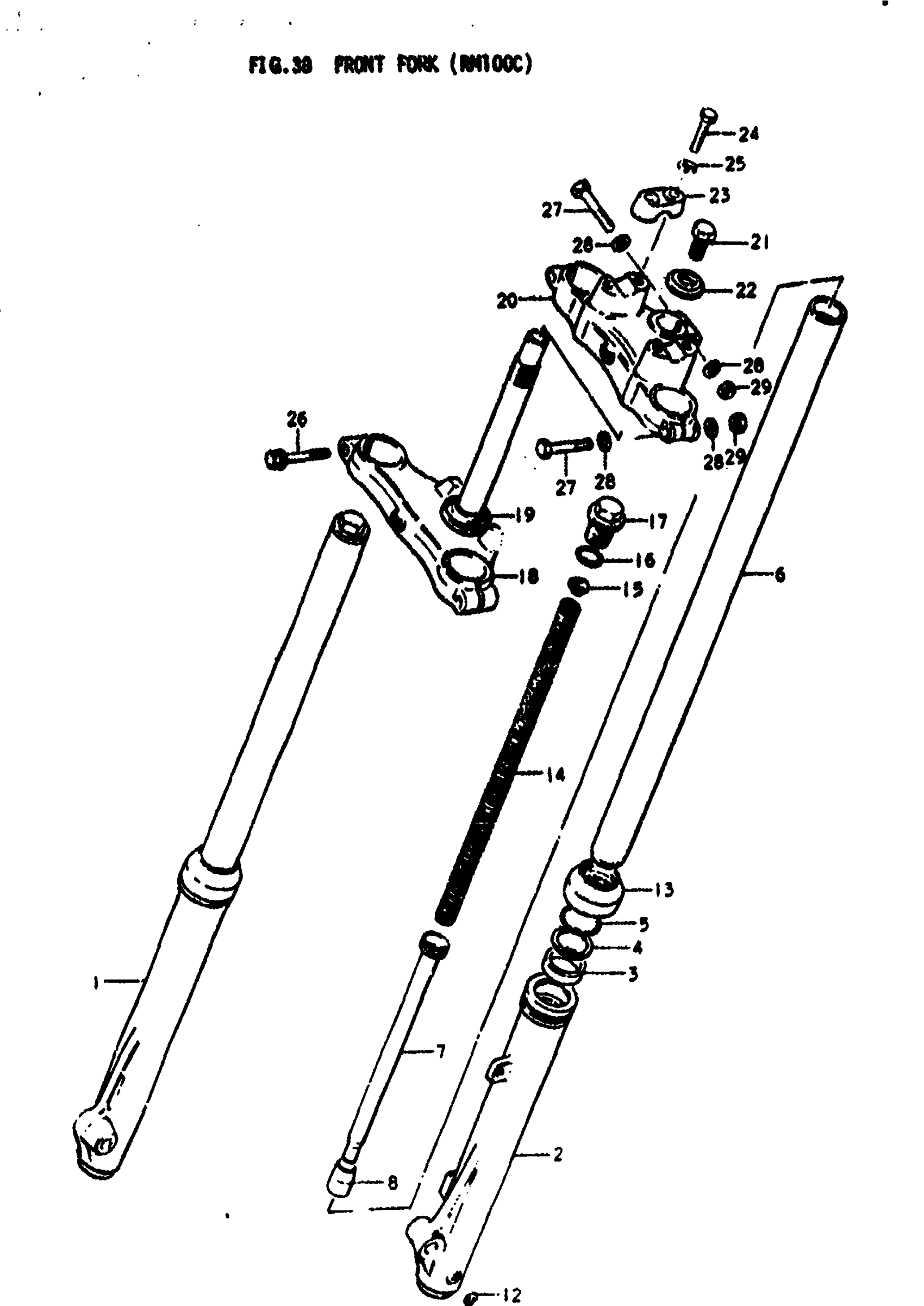

Suzuki RM100 (1978) FRONT FORK (RM100C) Diagram

#

Description
Price

0

FORK ASSY, FRONT | Includes Item(s) 0 - 29

51100-41603

Unavailable

1

OUTER TUBE, RH

51130-41603

Unavailable

2

OUTER TUBE, LH

51140-41603

Unavailable

3

OIL SEAL

51153-41603

Unavailable

4

WASHER

51158-41603

Unavailable

5

SNAP RING

51156-41603

Unavailable

6

INNER TUBE

51110-41603

Unavailable

7

CYLINDER

51146-41603

Unavailable

8

PIECE, OIL LOCK

51195-41603

Unavailable

9

BOLT

51147-16510

$4.34

10

GASKET

51148-41310

$2.26

11

SCREW This part replaces 02111-04087.

02112-04087

$1.49

12

GASKET

51183-03010

$2.07

13

DUST SEAL

51173-41603

$8.15

14

SPRING

51171-41603

Unavailable

15

GUIDE, SPRING

51172-18630

Unavailable

16

O RING This part replaces 51181-25010.

51181-29401

$3.37

17

CAP

51351-41603

Unavailable

18

STEM, STEERING

51410-41603

Unavailable

19

OUTER RACE

51621-33001

$16.25

20

HEAD, STEERING STEM

51311-41603

Unavailable

21

BOLT

51351-41320

Unavailable

22

WASHER

51356-41310

Unavailable

23

HOLDER, HANDLE

56211-27100

$15.23

24

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

25

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

26

BOLT This part replaces 51451-15113.

01104-10388

$2.72

27

BOLT This part replaces 01107-08558.

01500-08557

$3.16

28

WASHER This part replaces 08322-21088.

08322-01087

$2.13

29

NUT This part replaces 08312-21088.

08310-00087

$2.13
