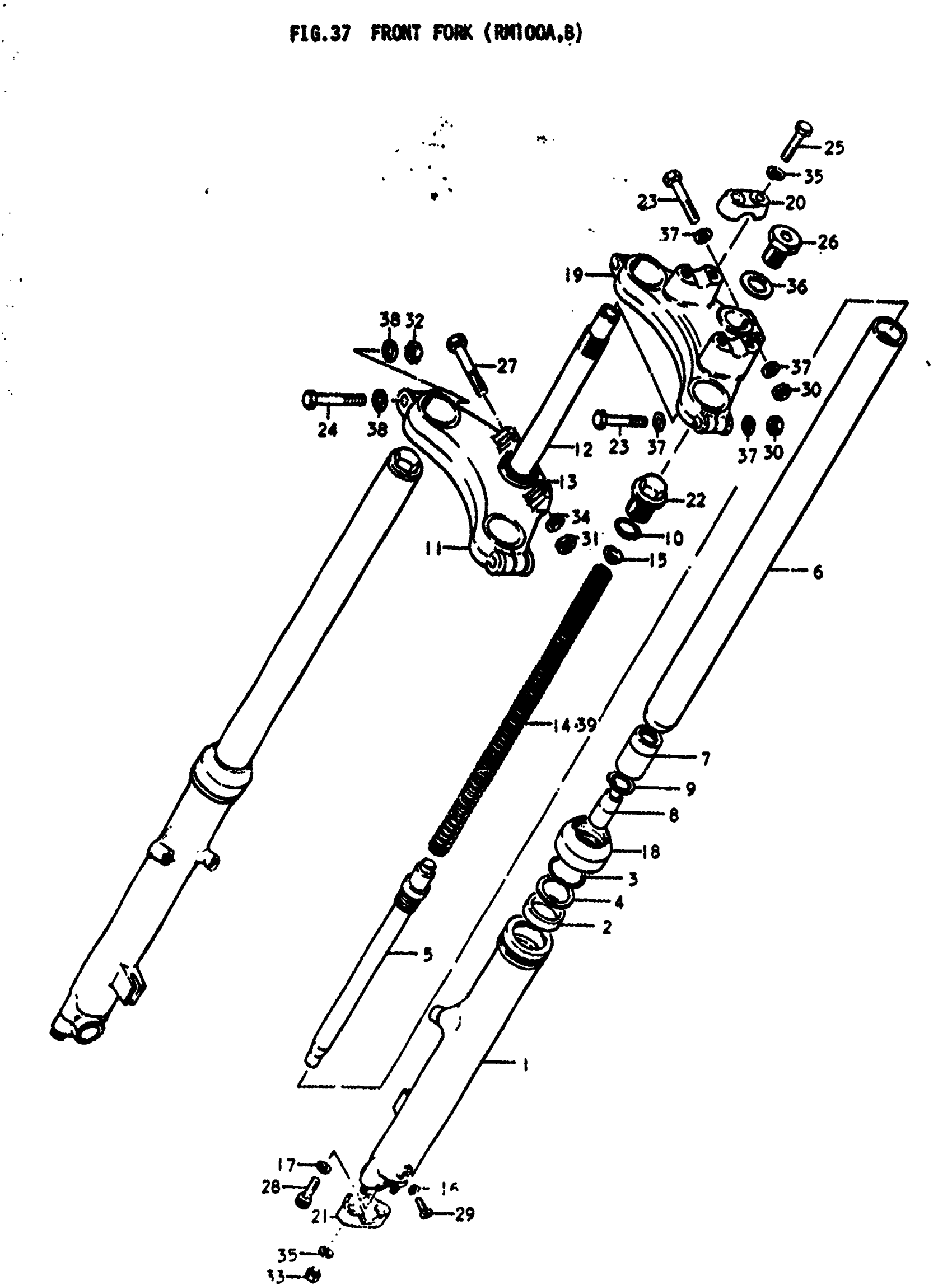

Suzuki RM100 (1978) FRONT FORK (RM100A Diagram

#

Description
Price

0

FRONT FORK ASSY | A This part replaces 51100-41600.

51100-41602

Unavailable

0

FRONT FORK ASSY | B This part replaces 51100-41601.

51100-41602

Unavailable

0

FRONT FORK ASSY | B; F.NO.17781~; Includes Item(s) 1 - 38

51100-41602

Unavailable

1

OUTER TUBE | A,B

51140-36011

Unavailable

2

OIL SEAL | A,B

51153-08011

Unavailable

3

SNAP RING | A,B

51156-36010

Unavailable

4

WASHER | A,B

51158-36010

Unavailable

5

CYLINDER | A,B

51146-28312

Unavailable

6

INNER TUBE | A,B

51111-28311

Unavailable

7

PISTON | A,B

51112-28311

Unavailable

8

PIECE, OIL LOCK | A,B

51195-28311

Unavailable

9

SNAP RING | A,B

51118-28312

Unavailable

10

O RING | A,B This part replaces 51181-25010.

51181-29401

$3.37

11

STEERING STEM | A,B

51411-41600

Unavailable

12

SHAFT, STEERING | A,B

51401-32110

Unavailable

13

OUTER RACE | A,B

51621-33001

$16.25

14

SPRING | A

51171-41600

Unavailable

14

SPRING | B

51171-41601

Unavailable

14

SPRING | B; F.NO. 17781~

51171-41602

Unavailable

15

GUIDE, SPRING | A,B

51172-25210

Unavailable

16

GASKET, DRAIN PLUG | A,B

51183-03010

$2.07

17

O RING | A This part replaces 51148-34010.

51148-36011

$3.56

17

GASKET | B

51148-36011

$3.56

18

DUST SEAL | A,B

51173-25010

$7.19

19

STEERING STEM HEAD | A,B

51311-41600

Unavailable

20

HOLDER, HANDLEBAR | A,B

56211-27100

$15.23

21

HOLDER, AXLE | A,B

51132-16511

Unavailable

22

CAP | A,B

51351-25011

$27.97

23

BOLT | A,B This part replaces 01122-08508.

01500-08507

$3.05

24

BOLT | A,B This part replaces 01121-12558.

01500-1255B

$4.77

25

BOLT | A,B This part replaces 01221-08357.

01204-08357

$2.09

26

BOLT | A,B

51351-28310

Unavailable

27

BOLT | A,B This part replaces 01122-10608.

01500-1060A

$4.41

28

BOLT | A,B

51147-31011

Unavailable

29

SCREW | A,B This part replaces 02111-04087.

02112-04087

$1.49

30

NUT | A,B This part replaces 08312-21088.

08310-00087

$2.13

31

NUT | A,B This part replaces 08312-12108.

08310-00107

$2.19

32

NUT, FIXED DRIVE FACE | A,B This part replaces 08312-11128.

09140-12039

$3.05

33

NUT, CLUTCH RELEASE NO.1 | A,B This part replaces 09140-08005.

09140-08017

$2.27

34

LOCK WASHER | A,B This part replaces 08321-21108.

08321-01107

$1.84

35

.LOCK WASHER | A,B This part replaces 08321-21088.

08321-01087

$2.13

36

WASHER | A,B

51356-28310

Unavailable

37

WASHER | A,B This part replaces 08322-21088.

08322-01087

$2.13

38

WASHER | A,B This part replaces 08322-11128.

08322-01127

$1.84

39

SPRING | B; OPTB; HARD TYPE

51171-41710

Unavailable
