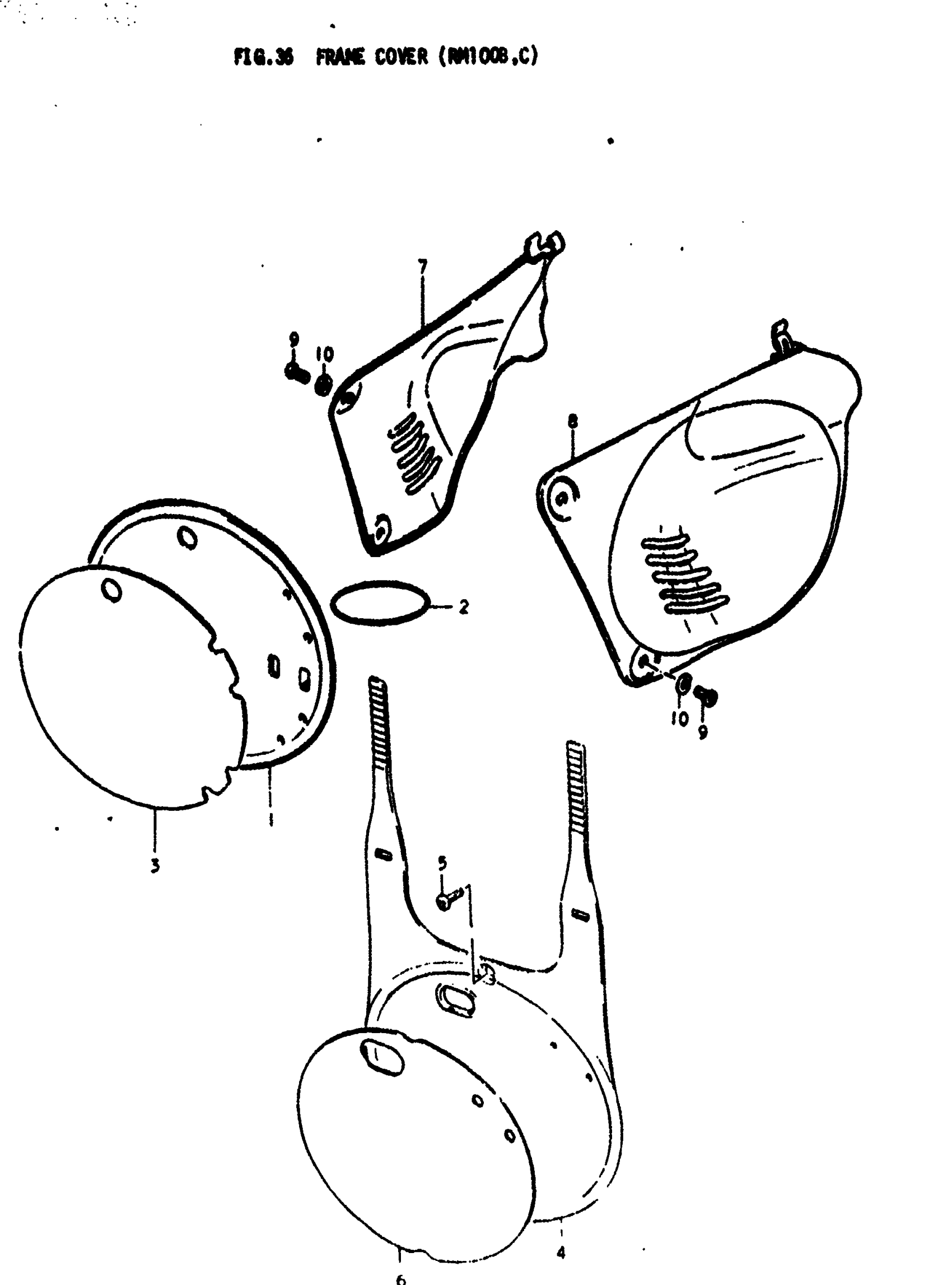

Suzuki RM100 (1978) FRAME COVER (RM100B Diagram

#

Description

Price

1

PLATE, FRONT NUMBER | B

94911-41600

Unavailable

2

O RING(D:3.5,ID | B This part replaces 09280-63003.

09280-61004

$2.60

3

EMBLEM | B

68169-41610

Unavailable

4

PLATE, FRONT NUMBER | C

94911-41300

Unavailable

5

SCREW | C This part replaces 02142-05208.

02142-05207

$1.49

6

EMBLEM | C This part replaces 68169-41300.

68169-41110

Unavailable

7

COVER, FRAME RH | B,C

47111-41300-019

Unavailable

8

COVER,FRAME LH | B,C This part replaces 47211-41300-019.

47211-41301-019

Unavailable

9

SCREW | B,C

02142-06127

$1.49

10

SPACER | B,C

09169-06010

$2.60
