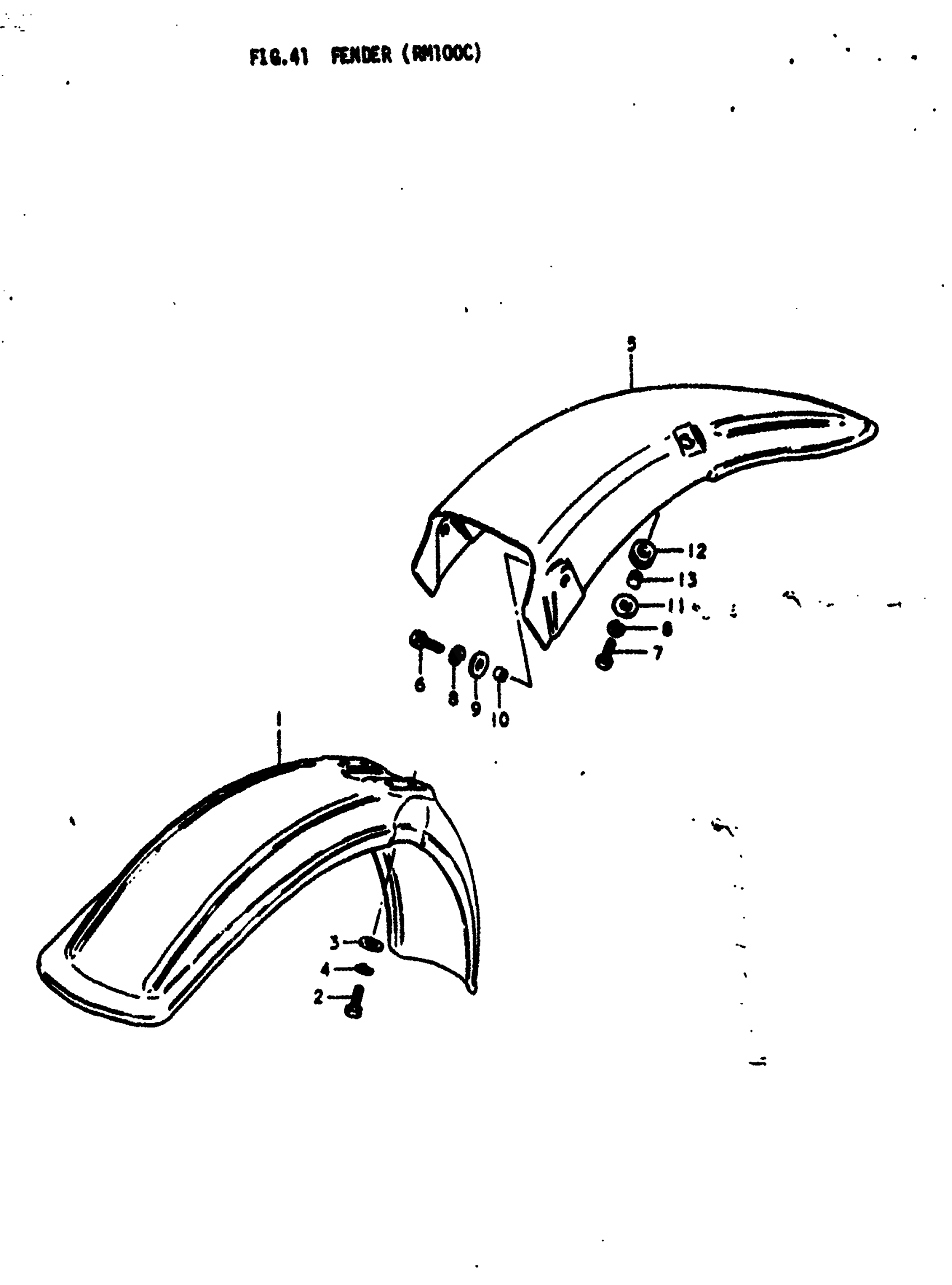

Suzuki RM100 (1978) FENDER (RM100C) Diagram

#

Description
Price

1

FENDER, FRONT

53111-41300-163

Unavailable

2

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

3

WASHER

09169-06010

$2.60

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

FENDER, REAR

63111-41300-163

Unavailable

6

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

7

BOLT This part replaces 01107-06208.

01500-06207

$2.28

8

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

9

WASHER | 6.5x18x1.6 This part replaces 09160-06007.

09160-06084

$1.78

10

SPACER | 6.1x8x5.2 This part replaces 09180-06032.

09180-06246

$2.12

11

WASHER, FRONT | 6.5x24x1.6 This part replaces 09160-06004.

09160-06134

$1.91

12

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

13

SPACER (6.5X10X7) | 6.8x10x7 This part replaces 09180-06002.

09180-06283

$1.91
