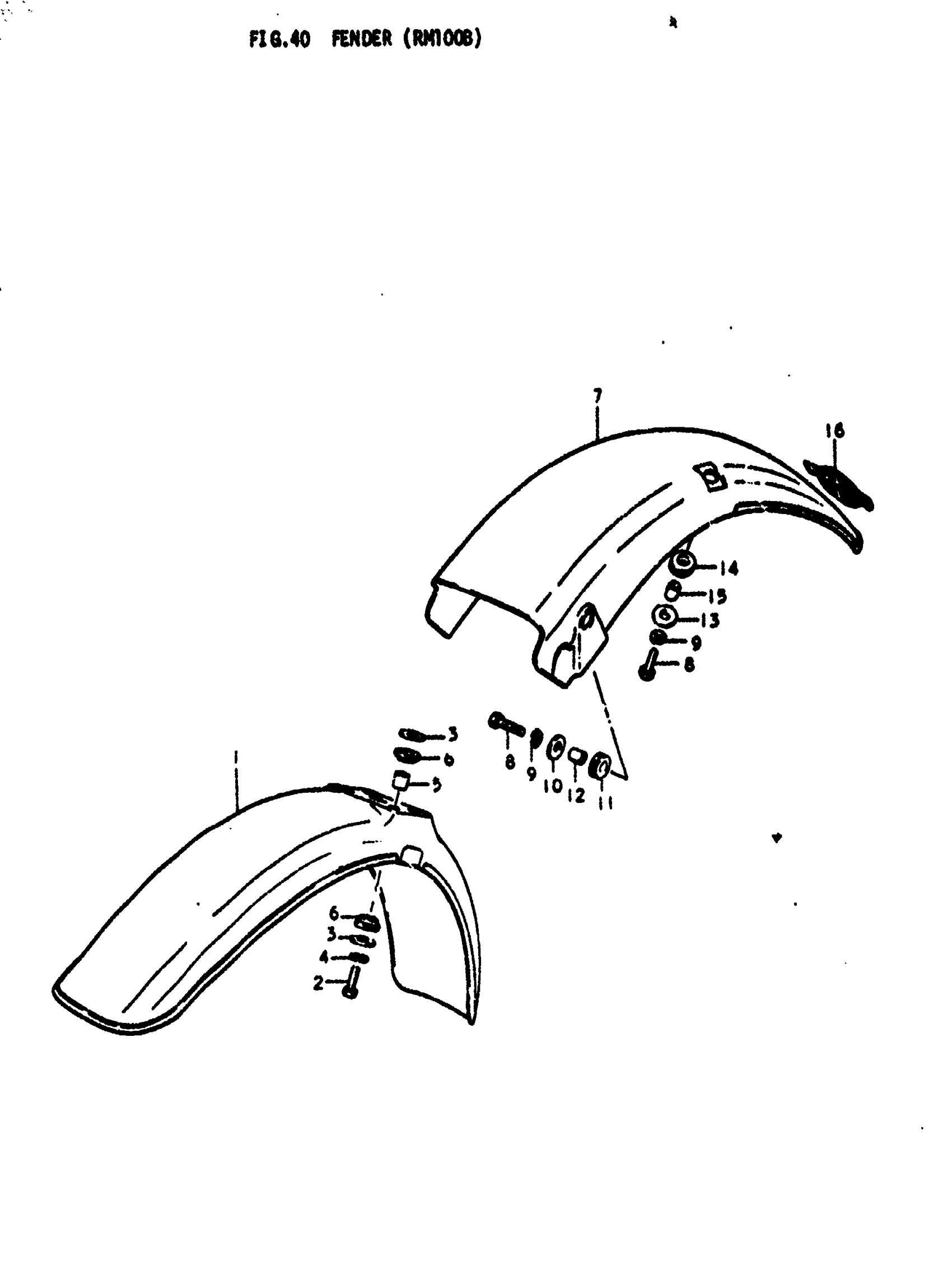

Suzuki RM100 (1978) FENDER (RM100B) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 53111-41100-163.

53111-41101-13L

Unavailable

2

BOLT This part replaces 01112-06258.

01500-06257

$1.97

3

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

SPACER (6.5X10X10) | 6.8x10x10 This part replaces 09180-06030.

09180-06310

$1.91

6

CUSHION

09320-09003

$2.23

7

FENDER, REAR

63111-41102-163

Unavailable

8

BOLT This part replaces 01112-06208.

01500-06207

$2.28

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

11

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

12

SPACER | 6.1x9x7.5

09180-06038

$1.98

13

WASHER, FRONT | 6.5x24x1.6 This part replaces 09160-06004.

09160-06134

$1.91

14

CUSHION

09320-09002

$1.98

15

SPACER (6.5X10X7) | 6.8x10x7 This part replaces 09180-06002.

09180-06283

$1.91

16

EMBLEM, SUNRISE

68149-41001

Unavailable
