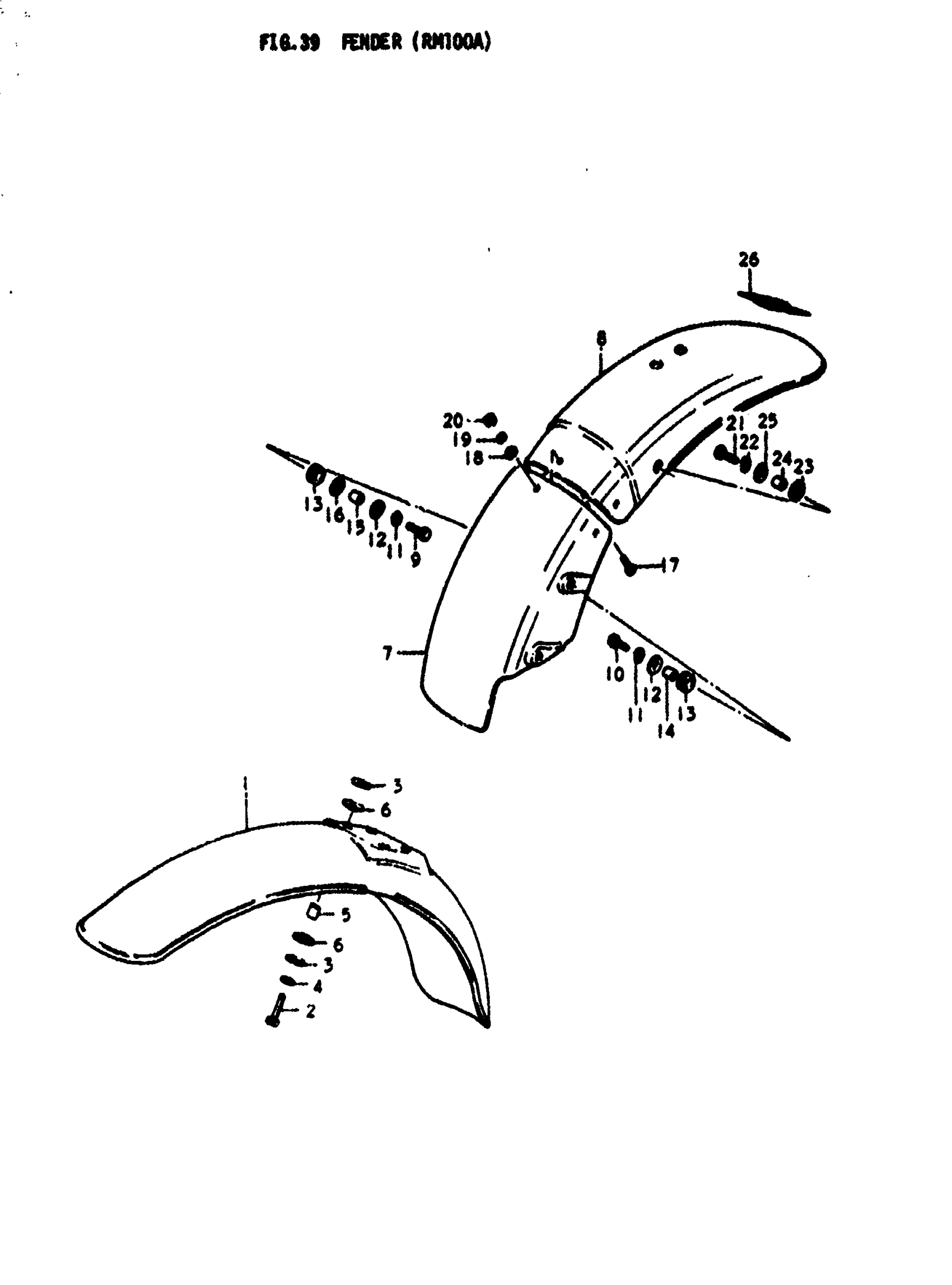

Suzuki RM100 (1978) FENDER (RM100A) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 53111-41100-163.

53111-41101-13L

Unavailable

2

BOLT This part replaces 01112-06258.

01500-06257

$1.97

3

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

SPACER (6.5X10X10) | 6.8x10x10 This part replaces 09180-06030.

09180-06310

$1.91

6

CUSHION

09320-09003

$2.23

7

BODY, REAR FENDER FRONT

63112-41000

Unavailable

8

BODY, REAR FENDER REAR This part replaces 63113-41600-163.

63113-41000-163

Unavailable

9

BOLT This part replaces 01112-06258.

01500-06257

$1.97

10

BOLT This part replaces 01112-06208.

01500-06207

$2.28

11

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

12

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

13

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

14

SPACER | 6.1x9x7.5

09180-06038

$1.98

15

SPACER (6.1X8X12) | 6.1x8x12 This part replaces 09180-06035.

09180-06249

$2.10

16

CUSHION

09320-08010

$1.99

17

SCREW This part replaces 02141-05127.

02142-05127

$1.97

18

WASHER This part replaces 08322-21058.

08322-01057

$2.13

19

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

20

NUT This part replaces 08311-11058.

08310-00057

$1.84

21

BOLT | 6x18

09100-06064

$1.61

22

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

23

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

24

SPACER | 6.1x9x7.5

09180-06038

$1.98

25

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

26

EMBLEM, SUNRISE

68149-41001

Unavailable
