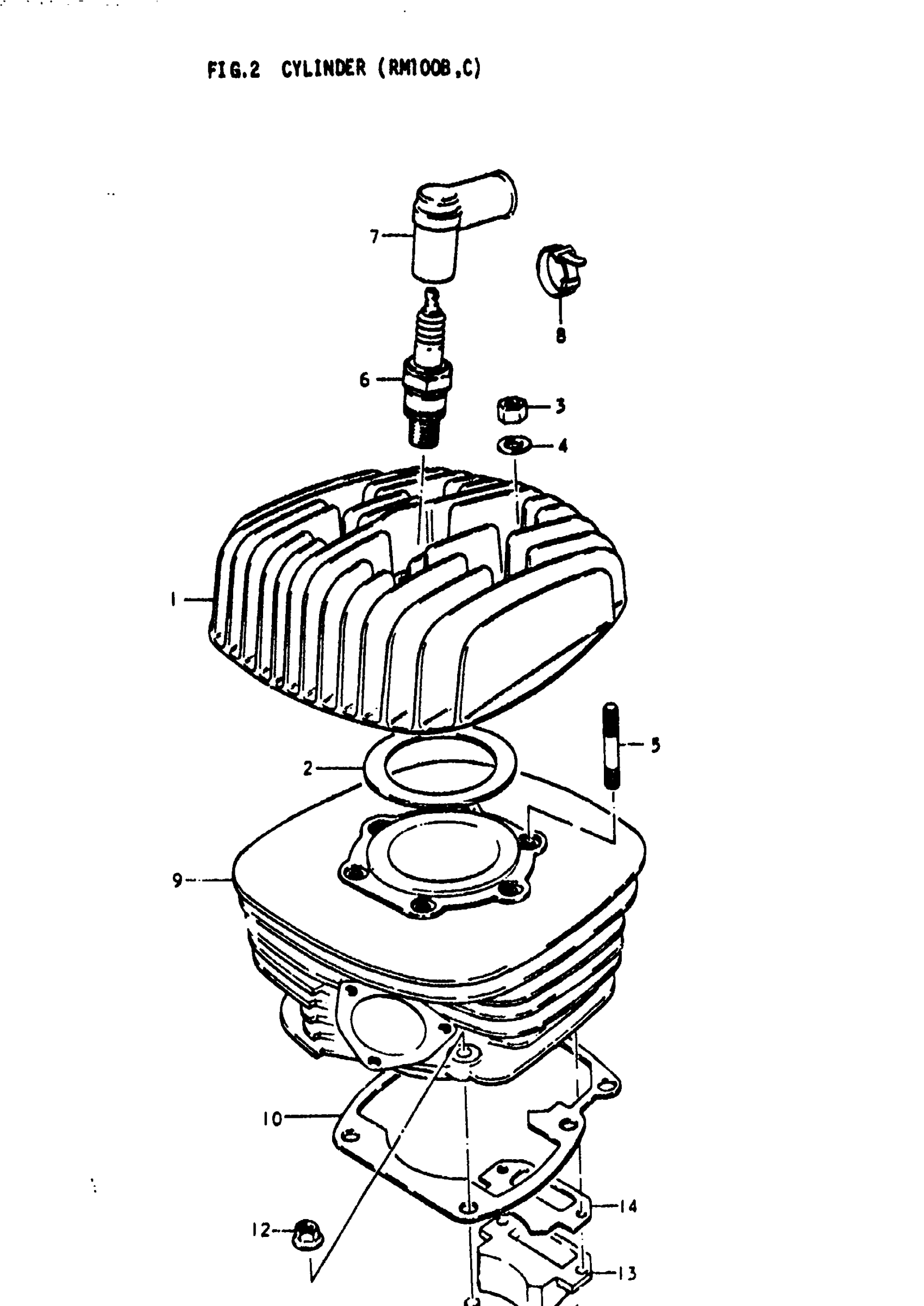

Suzuki RM100 (1978) CYLINDER (RM100B Diagram

#

Description
Price

1

CYLINDER HEAD | B; TO 11111-41621 This part replaces 11111-41620.

11111-41621

Unavailable

1

CYLINDER HEAD | C

11111-41621

Unavailable

2

GASKET, CYLINDER HEAD | B,C

11141-41620

Unavailable

3

NUT, CLUTCH RELEASE NO.1 | B,C This part replaces 09140-08005.

09140-08017

$2.27

4

WASHER | B,C This part replaces 08322-21088.

08322-01087

$2.13

5

STUD BOLT | B,C This part replaces 01421-08358.

01421-0835A

$2.29

6

SPARK PLUG BR9E | B,C; NGK, B9EV This part replaces 09482-00097.

09482-00349

$7.22

7

CAP, SPARK PLUG | B,C This part replaces 33510-41111.

33510-20A02

$24.39

8

BELT | B,C; FROM 09407-00001

09407-09402

$2.45

9

CYLINDER | B; TO 11210-41621 This part replaces 11210-41620.

11210-41621

Unavailable

9

CYLINDER | C

11210-41621

Unavailable

10

GASKET, CYLINDE | B,C This part replaces 11241-41300.

11241-41321

$7.75

11

BOLT,STUD | B,C This part replaces 01421-08258.

01421-0825A

$2.03

12

NUT (CHROME) | B,C This part replaces 09159-08019.

08316-10087

$2.26

13

REED VALVE ASSY | B This part replaces 13150-41111.

13150-41113

$143.67

13

NO DESCRIPTION AVAILABLE | C This part replaces 13150-41310.

13150-41311

Unavailable

14

GASKET,REED VAL | B,C This part replaces 13156-41100.

13156-41100-H17

$3.43

15

SCREW | B,C This part replaces 02112-06208.

02112-06207

$1.78

16

LOCK WASHER | B This part replaces 08321-21068.

08321-01067

$2.13
