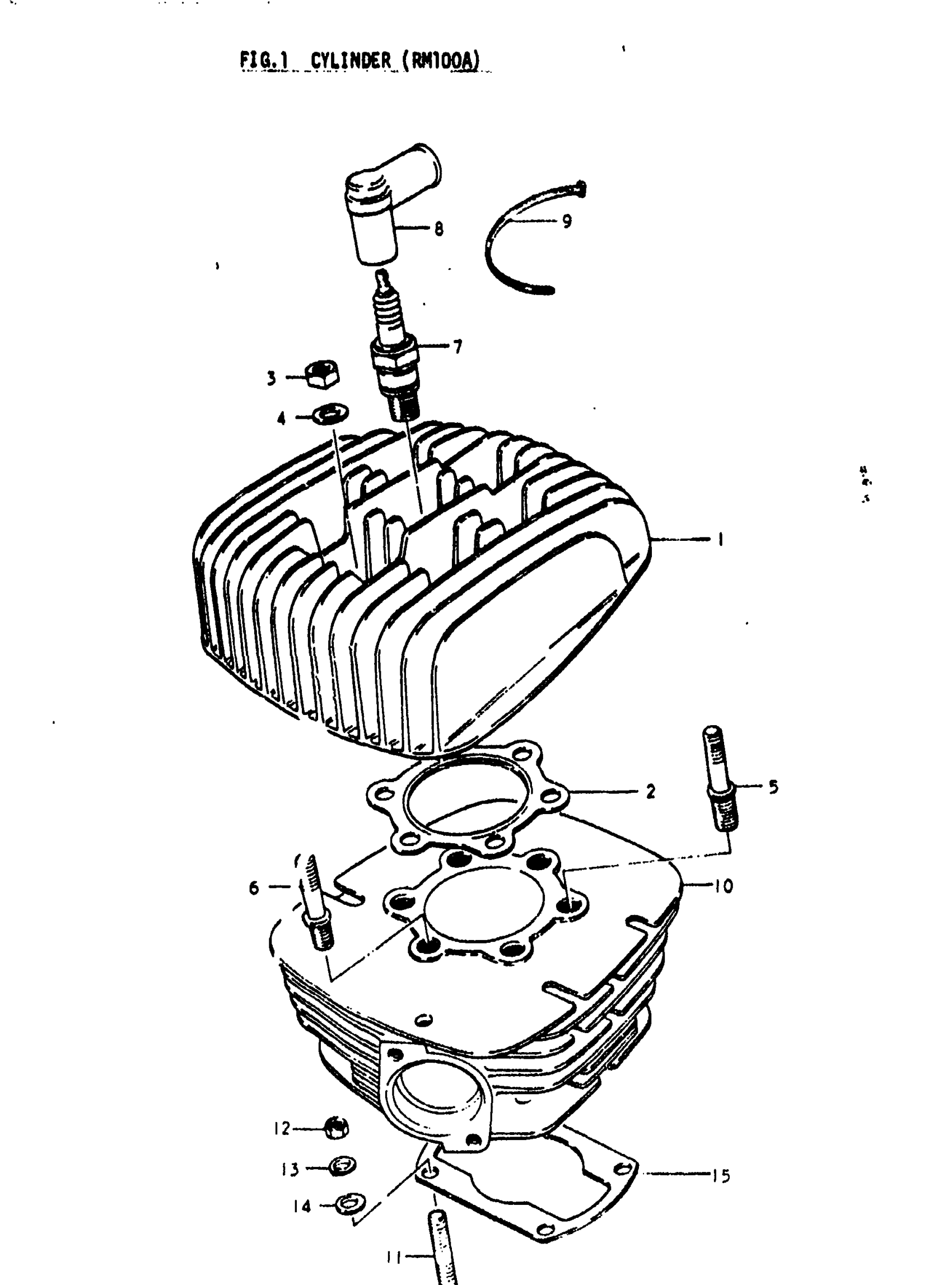

Suzuki RM100 (1978) CYLINDER (RM100A) Diagram

#

Description
Price

1

CYLINDER HEAD

11111-41600

Unavailable

2

GASKET, CYLINDER HEAD

11141-28682

Unavailable

3

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

$2.27

4

WASHER This part replaces 08322-11088.

08322-01087

$2.13

5

STUD BOLT | L:59

09108-08018

$3.18

6

STUD BOLT | L:58

09108-08034

Unavailable

7

SPARK PLUG BR9E | NGK 89EV This part replaces 09482-00097.

09482-00349

$7.22

8

CAP, SPARK PLUG | TO 33510-41111 This part replaces 33510-41110.

33510-20A02

$24.39

9

BELT | FROM 09407-00001

09407-09402

$2.45

10

CYLINDER

11210-41600

Unavailable

11

BOLT,STUD This part replaces 01421-08258.

01421-0825A

$2.03

12

NUT This part replaces 08312-12088.

08310-00087

$2.13

13

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

14

WASHER This part replaces 08322-11088.

08322-01087

$2.13

15

GASKET,CYLINDER This part replaces 11241-28600.

11241-28601

$16.30
