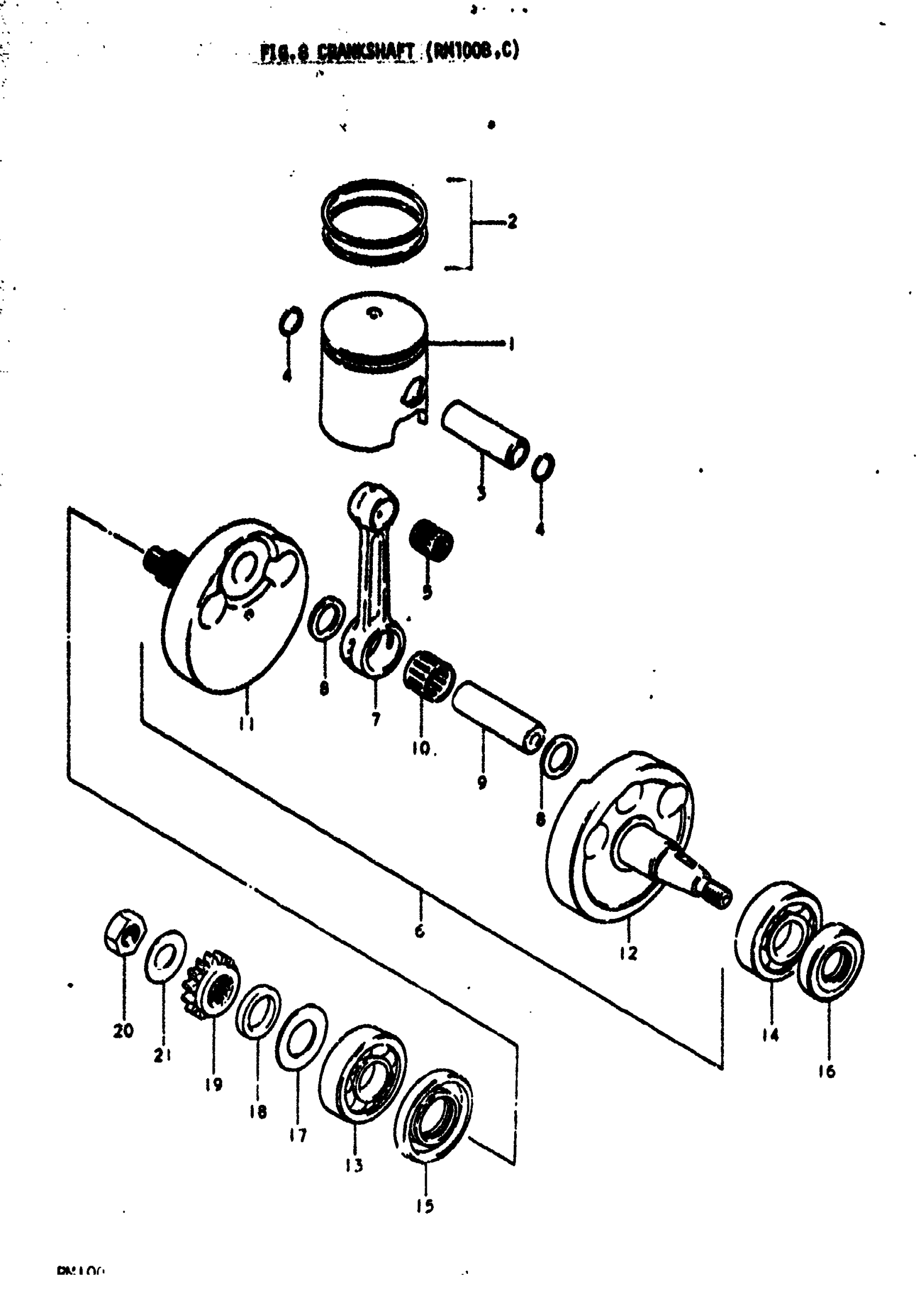

Suzuki RM100 (1978) CRANKSHAFT (RM100B Diagram

#

Description
Price

1

PISTON | B,C

12110-41610

Unavailable

1

NO DESCRIPTION AVAILABLE | B,C; OS:0.25 This part replaces 12110-41620.

12110-41610-025

Unavailable

1

NO DESCRIPTION AVAILABLE | B,C; OS:0.5 This part replaces 12110-41630.

12110-41610-050

Unavailable

2

RING SET, PISTON | B,C

12140-41610

Unavailable

2

RING SET, PISTON (OS:0.25) | B,C; OS:0.25 This part replaces 12140-41740.

12140-41610-025

Unavailable

2

RING SET, PISTON (OS:0.5) | B,C; OS:0.5 This part replaces 12140-41750.

12140-41610-050

Unavailable

3

PIN, PISTON | B,C

12151-41600

$15.98

4

CIRCLIP | B,C

09381-16001

$1.67

5

RN 16X21X19.6BR | B,C This part replaces 09263-16005.

09263-16015

$15.54

6

CRANKSHAFT ASSY | B,C; Includes Item(s) 7 - 12

12200-41301

Unavailable

7

ROD, CONNECTING | B,C

12161-41301

Unavailable

8

THRUST WASHER | B,C; 19x32x1

09160-19001

$3.27

9

PIN, CRANK | B,C This part replaces 12211-41000.

12211-48001

$38.85

10

BEARING | B,C This part replaces 09263-19007.

09263-19009

$16.75

11

CRANKSHAFT, RH | B,C

12220-41300

Unavailable

12

CRANKSHAFT, LH | B,C

12260-41301

Unavailable

13

BEARING, RH (22X56X16) | B,C; 22x56x16 This part replaces 09262-22012.

09262-22025

$57.67

14

BEARING, LH | B,C; 25x52x15 This part replaces 09262-25048.

09262-25070-0A0

$37.33

15

OIL SEAL, RH | B,C; 30x56x9

09289-30003

Unavailable

16

OIL SEAL, LH | B,C; 24.2x44x7 This part replaces 09283-25037.

09283-25066

$7.50

17

WASHER | B,C; 22x40x1

08212-22401

Unavailable

18

SPACER | B,C

09180-22013

Unavailable

19

GEAR, PRIMARY DRIVE | B; NT:17

21111-41300

Unavailable

19

GEAR, PRIMARY DRIVE | C; NT:18

21111-41301

Unavailable

20

NUT | B,C

09140-16002

$3.16

21

WASHER | B,C

09164-16002

$3.16
