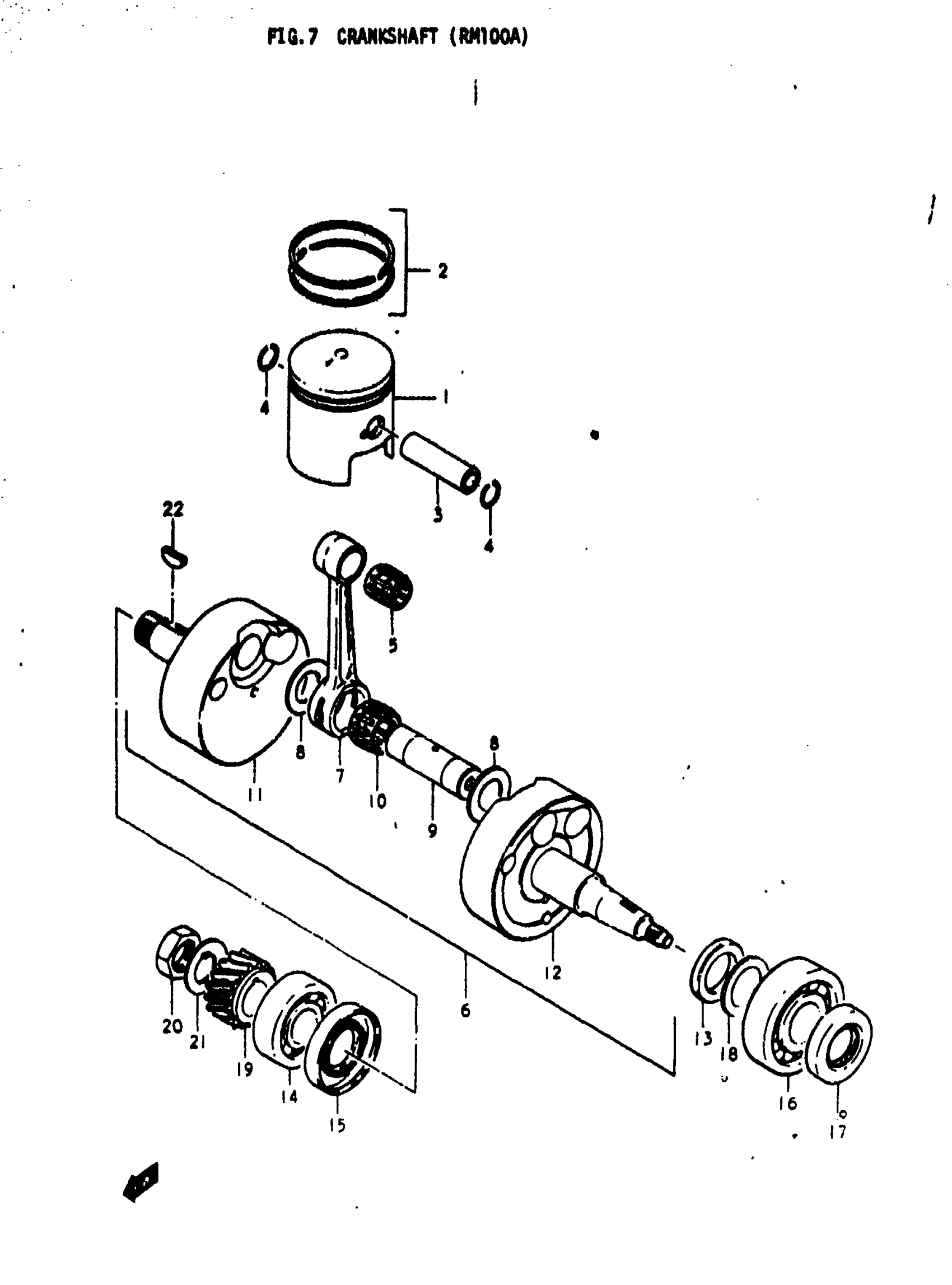

Suzuki RM100 (1978) CRANKSHAFT (RM100A) Diagram

#

Description
Price

1

PISTON

12110-28614

Unavailable

1

NO DESCRIPTION AVAILABLE | OS:0.25 This part replaces 12110-28770.

12110-28614-025

Unavailable

1

NO DESCRIPTION AVAILABLE | OS:0.5 This part replaces 12110-28623.

12110-28614-050

Unavailable

2

RING SET, PISTON

12140-28630

$40.22

2

NO DESCRIPTION AVAILABLE | OS:0.25 This part replaces 12140-28750.

12140-28630-025

Unavailable

2

RING SET, PISTON | OS:0.5 This part replaces 12140-28640.

12140-28630-050

$40.98

3

PIN,PISTON This part replaces 12151-07000.

12151-23400-0A0

$8.67

4

RING

09381-14001

$1.49

5

ROLLR BRG,14X18 This part replaces 09263-14006.

09263-14022

$11.97

6

CRANKSHAFT ASSY | Includes Item(s) 7 - 12

12200-41001

Unavailable

7

CONNECTING ROD This part replaces 12161-12000.

12161-39300

$69.47

8

THRUST WASHER | 19x32x1

09160-19001

$3.27

9

PIN, CRANK This part replaces 12211-41000.

12211-48001

$38.85

10

BEARING This part replaces 09263-19007.

09263-19009

$16.75

11

NO DESCRIPTION AVAILABLE | TO 12221-28003 This part replaces 12221-28002.

12221-28003

Unavailable

12

NO DESCRIPTION AVAILABLE | TO 12261-41001 This part replaces 12261-41000.

12261-41001

Unavailable

13

SPACER | 25x36x3

09180-25041

Unavailable

14

BEARING, COUNTER SHAFT | 20x52x15 This part replaces 09262-20009.

09262-20073

$23.28

15

OIL SEAL | 26x52x8

09283-26007

$7.37

16

BEARING

09262-25049

$38.05

17

OIL SEAL, LH | 25x44x7 This part replaces 09283-25037.

09283-25066

$7.50

18

SHIM This part replaces 08222-25366.

08221-25363

$2.53

19

GEAR, PRIMARY DRIVE | NT:18

21111-41000

Unavailable

20

NUT

09140-18002

$3.87

21

WASHER

09164-18001

$3.24

22

KEY

08341-31059

$2.48
