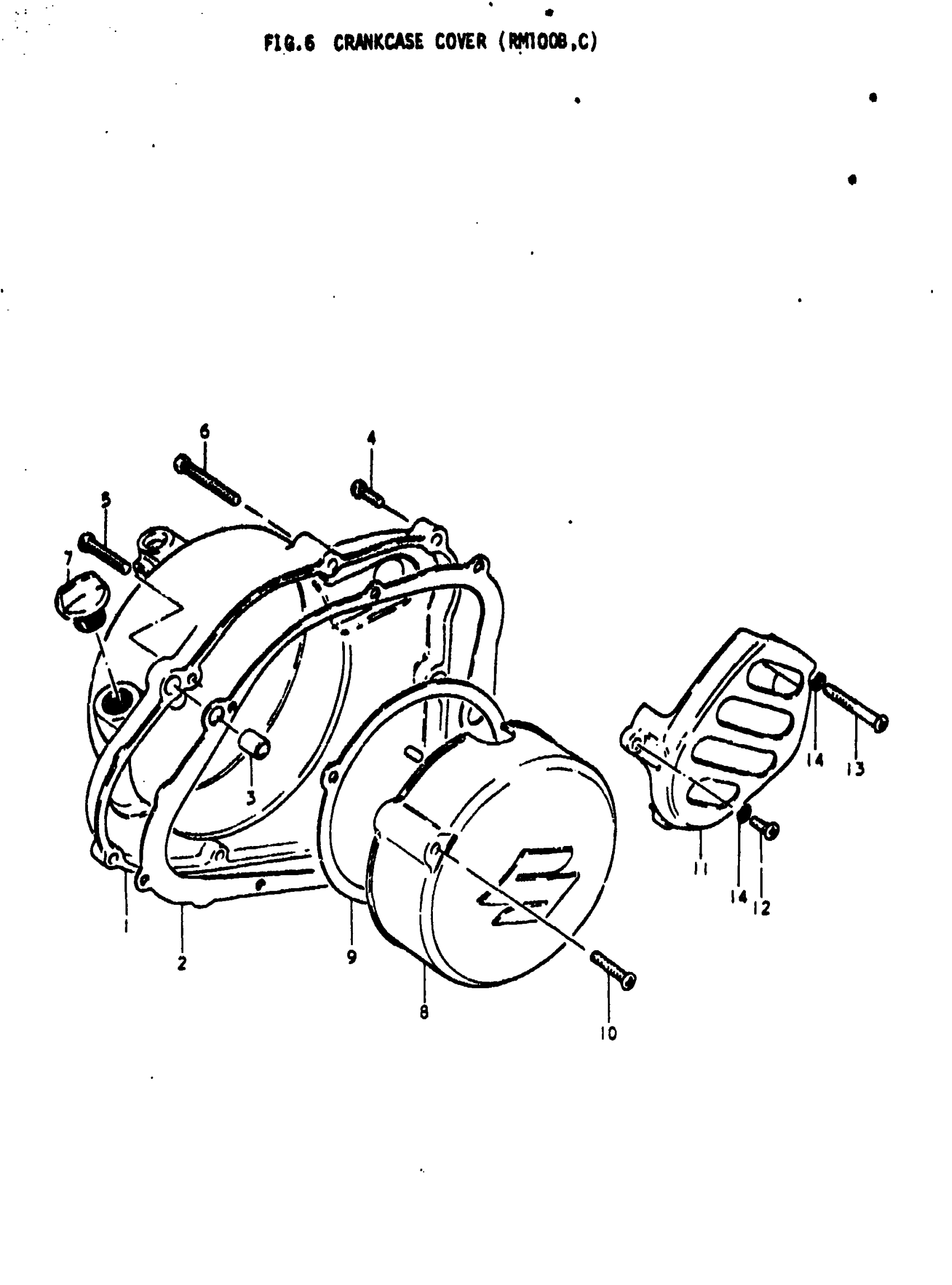

Suzuki RM100 (1978) CRANKCASE COVER (RM100B Diagram

#

Description
Price

1

COVER, CLUTCH | B,C

11341-41300

Unavailable

2

GASKET,CLUTCH C | B,C This part replaces 11482-41300.

11482-41301

Unavailable

3

PIN | B,C This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW | B,C This part replaces 02112-06258.

02112-06257

$1.78

5

SCREW | B,C

02112-06307

$1.97

6

SCREW (6X45) | B,C This part replaces 02112-06458.

02112-06457

$1.78

7

PLUG SET | B,C This part replaces 09259-20003.

09200-20811

$4.02

8

COVER, MAGNETO | B,C

11351-41300

Unavailable

9

GASKET,MAGNETO | B,C This part replaces 11483-41300.

11483-41312-H17

Unavailable

10

SCREW (6X45) | B,C This part replaces 02112-06458.

02112-06457

$1.78

11

COVER, MAGNETO SPROCKET | B,C

11361-41101

Unavailable

12

SCREW | B,C This part replaces 02112-06208.

02112-06207

$1.78

13

SCREW | B,C

02112-06307

$1.97

14

LOCK WASHER | B,C This part replaces 08321-21066.

08321-0106A

$1.84
