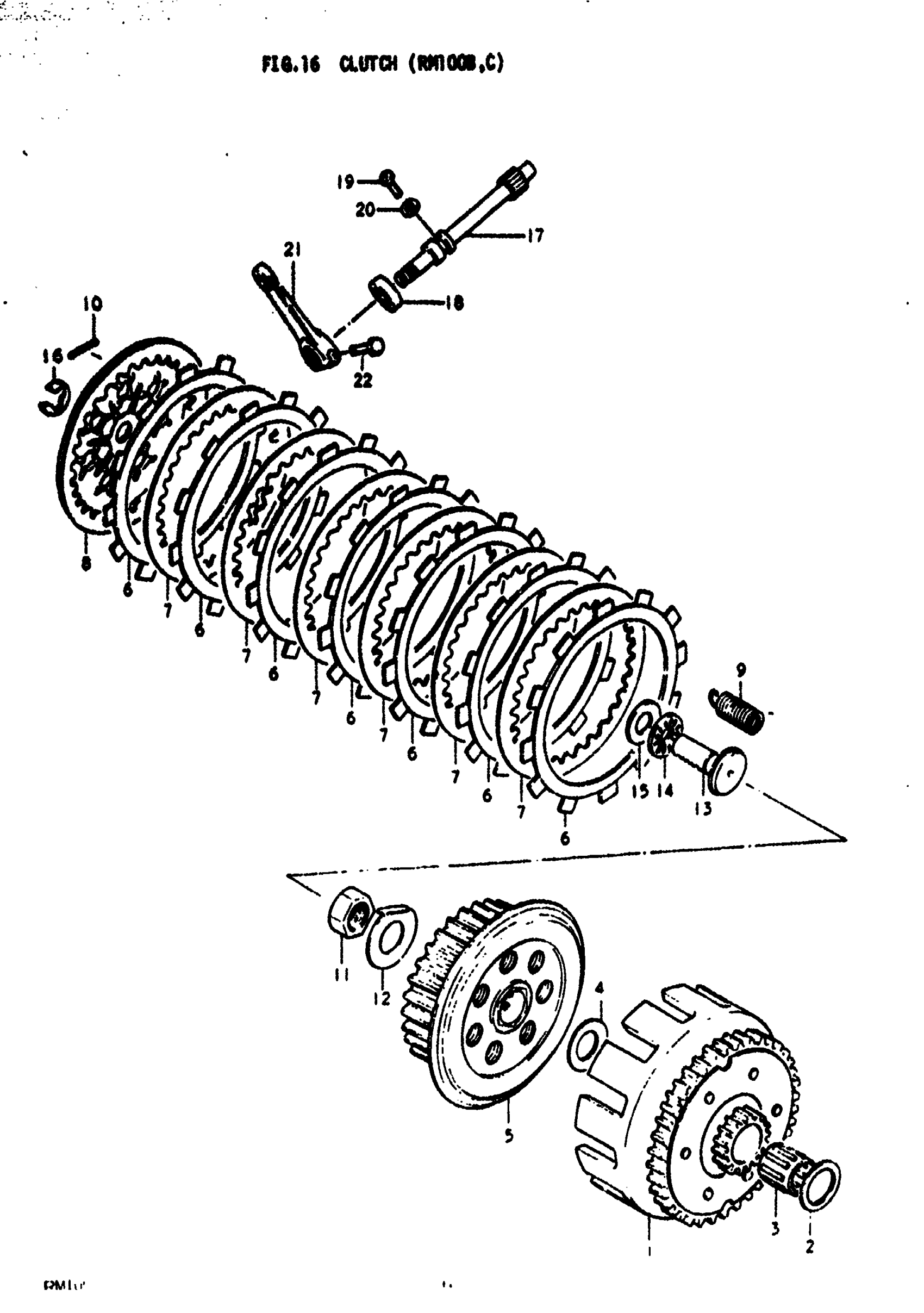

Suzuki RM100 (1978) CLUTCH (RM100B Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | B; NT:63/17

21200-41300

Unavailable

1

GEAR ASSY, PRIMARY DRIVEN | C; NT:62/17

21200-41301

Unavailable

2

THRUST WASHER | B,C

08211-20323

$3.03

3

BEARING | B,C

09263-20023

$19.98

4

THRUST WASHER | B,C; 17x34x1.3

08211-17342

$2.72

5

HUB, SLEEVE | B,C

21410-41301

Unavailable

6

PLATE, CLUTCH DRIVE | B,C This part replaces 21441-28300.

21441-13A01

$14.73

7

PLATE, CLUTCH DRIVEN (T:1.6) | B,C This part replaces 21451-28000.

21451-19A00

$7.58

7

PLATE, CLUTCH DRIVEN (T:1.6) | B,C; OPT ALUMINIUM This part replaces 21451-41700.

21451-19A00

$7.58

8

PLATE, PRESSURE | B,C

21460-28000

$25.25

9

SPRING | B,C

09443-12018

$2.92

10

PIN | B,C

09261-02001

$1.56

11

NUT | B,C

09140-14002

$3.40

12

WASHER | B,C

09169-14002

Unavailable

13

RACK | B,C This part replaces 23165-28300.

23165-46000

$22.21

14

BEARING | B,C

09263-10002

$10.19

15

WASHER | B,C

08212-10241

$2.23

16

.E-RING | B,C This part replaces 08332-11088.

08332-1108A

$1.78

17

PINION, RELEASE | B; TO 23261-41301 This part replaces 23261-41300.

23261-41301

$43.68

17

PINION, RELEASE | C

23261-41301

$43.68

18

OIL SEAL | B,C

09284-10002

$2.90

19

BOLT | B,C

09135-06009

$2.23

20

WASHER | B,C This part replaces 08322-21068.

08322-01067

$2.13

21

AHM, RELEASE | B,C

23271-41300

Unavailable

22

BOLT, CANISTER | B This part replaces 01107-06168.

01500-06167

$1.97
