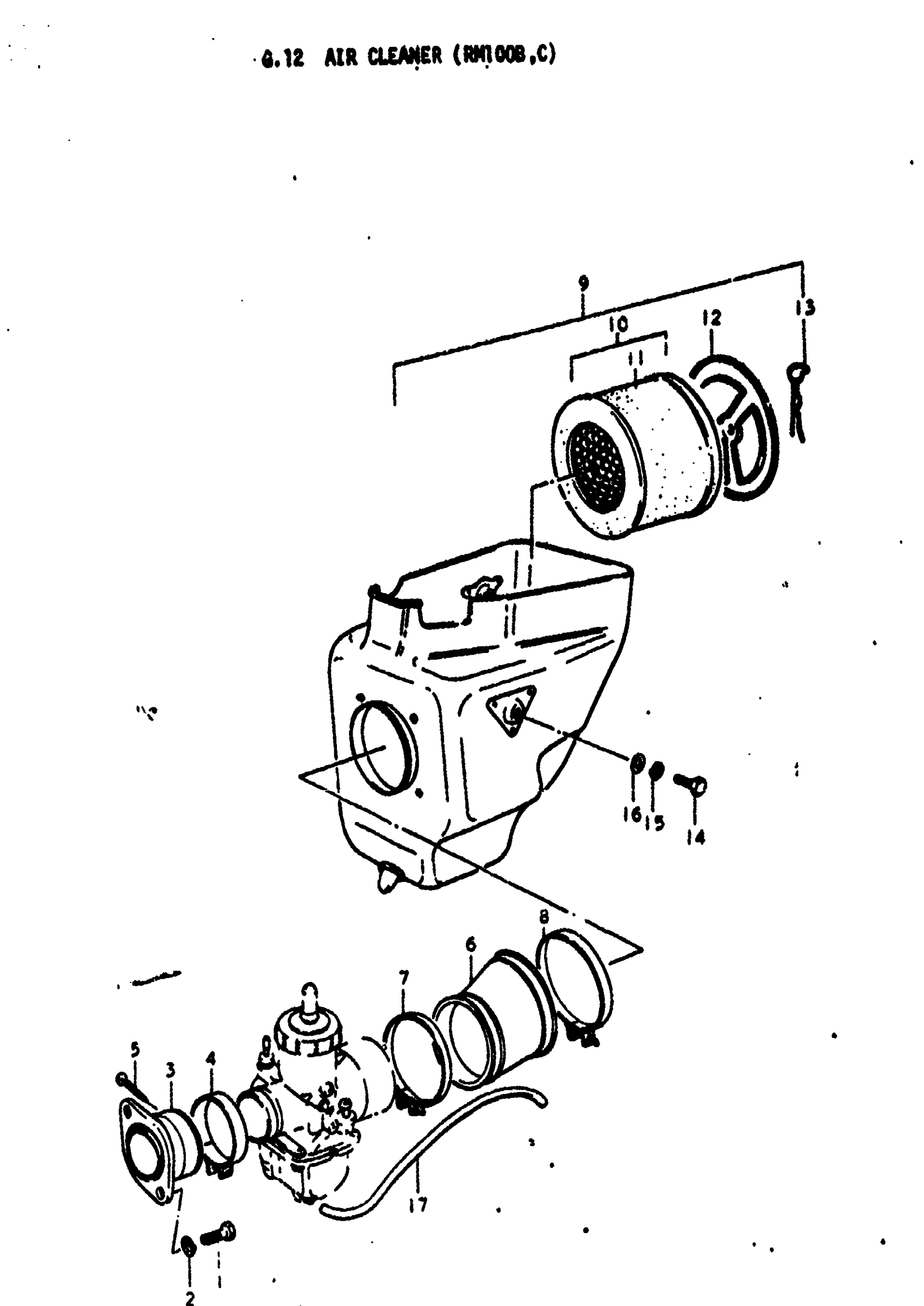

Suzuki RM100 (1978) AIR CLEANER (RM100B Diagram

#

Description
Price

1

BOLT, REAR | B,C This part replaces 01107-08208.

01500-08207

$2.53

2

.LOCK WASHER | B,C This part replaces 08321-21088.

08321-01087

$2.13

3

NO DESCRIPTION AVAILABLE | B,C This part replaces 13110-41300.

13110-41301

Unavailable

4

CLAMP | B,C

09402-50306

$4.77

5

SCREW | B,C This part replaces 02112-05208.

02112-05207

$1.97

6

HOSE, AIR INLET | B,C

13881-41301

Unavailable

7

CLAMP, NO.1 | B,C

09402-66306

$6.42

8

CLAMP | B,C This part replaces 09402-84306.

09402-84306-XC0

Unavailable

9

CLEANER ASSY, AIR | B

13700-41311

Unavailable

9

CLEANER ASSY, AIR | C; Includes Item(s) 10 - 13

13700-41313

Unavailable

10

FILTER ASSY | B,C

13780-41310

Unavailable

11

FILTER | B,C

13781-41310

Unavailable

12

CAP | B,C

13771-41310

Unavailable

13

PIN | B,C

13731-41310

Unavailable

14

BOLT | B,C This part replaces 01107-06108.

01500-06107

$2.06

15

LOCK WASHER | B,C This part replaces 08321-21068.

08321-01067

$2.13

16

WASHER | B,C This part replaces 08322-21068.

08322-01067

$2.13

17

HOSE 4X7X600 | B,C; 4x7x330 This part replaces 09343-04010.

09352-40706-600

$5.11
