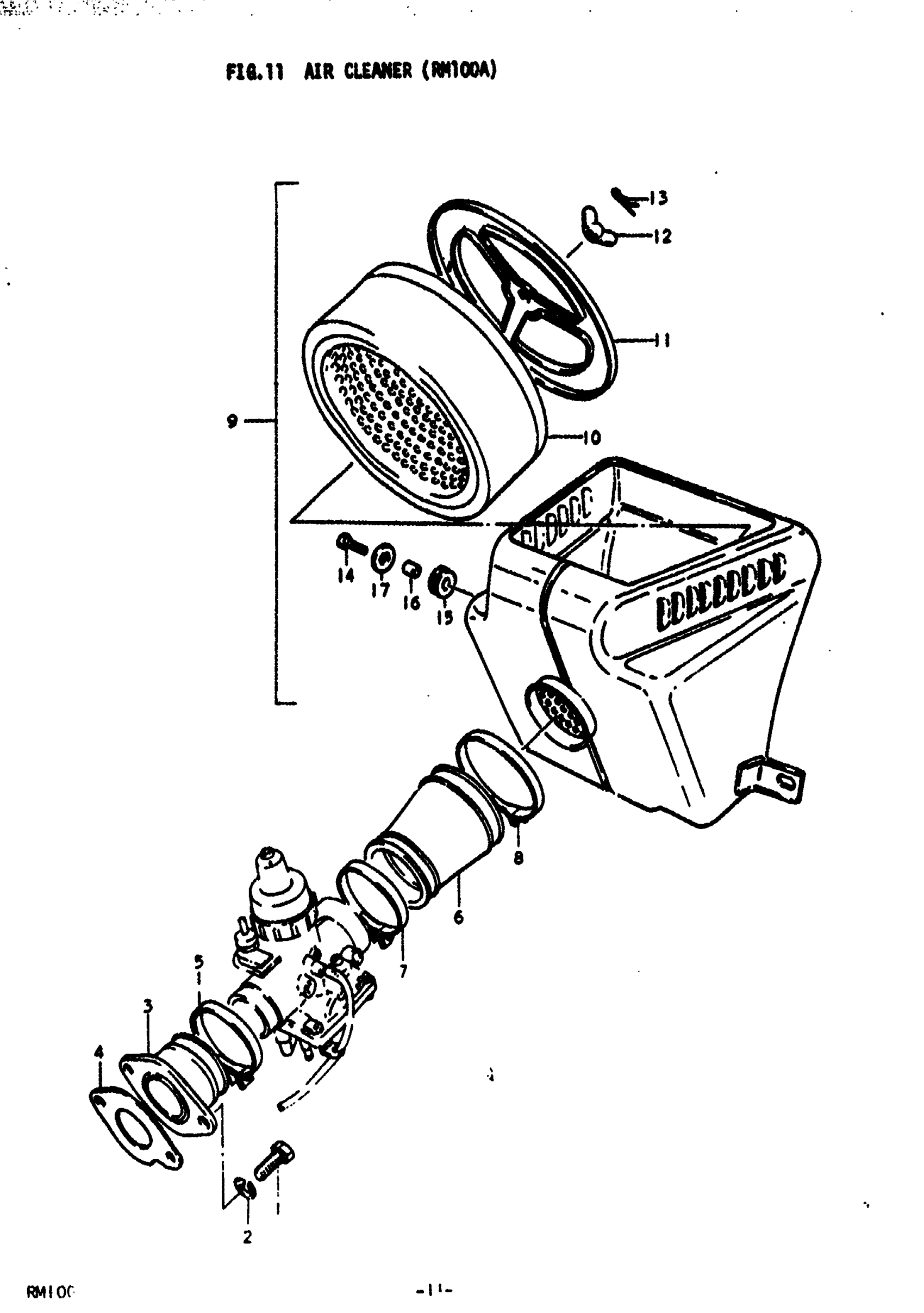

Suzuki RM100 (1978) AIR CLEANER (RM100A) Diagram

#

Description
Price

1

BOLT, REAR This part replaces 01122-08208.

01500-08207

$2.53

2

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

3

PIPE, INTAKE | FROM 13110-28701

13110-28702

Unavailable

4

GASKET, INTAKE PIPE

13125-28701

Unavailable

5

CLAMP This part replaces 09402-44306.

09402-44208

$5.80

6

HOSE, AIR INLET

13881-41000

Unavailable

7

CLAMP

09402-50306

$4.77

8

CLAMP

09402-66306

$6.42

9

CLEANER ASSY, AIR | Includes Item(s) 10 - 13

13700-41012

Unavailable

10

FILTER

13781-41010

Unavailable

11

CAP

13770-41110

Unavailable

12

NUT This part replaces 09144-06001.

08317-1206A

$2.40

13

PIN

13775-41010

Unavailable

14

BOLT, CANISTER This part replaces 01112-06168.

01500-06167

$1.97

15

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

16

SPACER (6.5X9X7) | 7x9x7 This part replaces 09180-07005.

09180-06259

$2.48

17

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91
