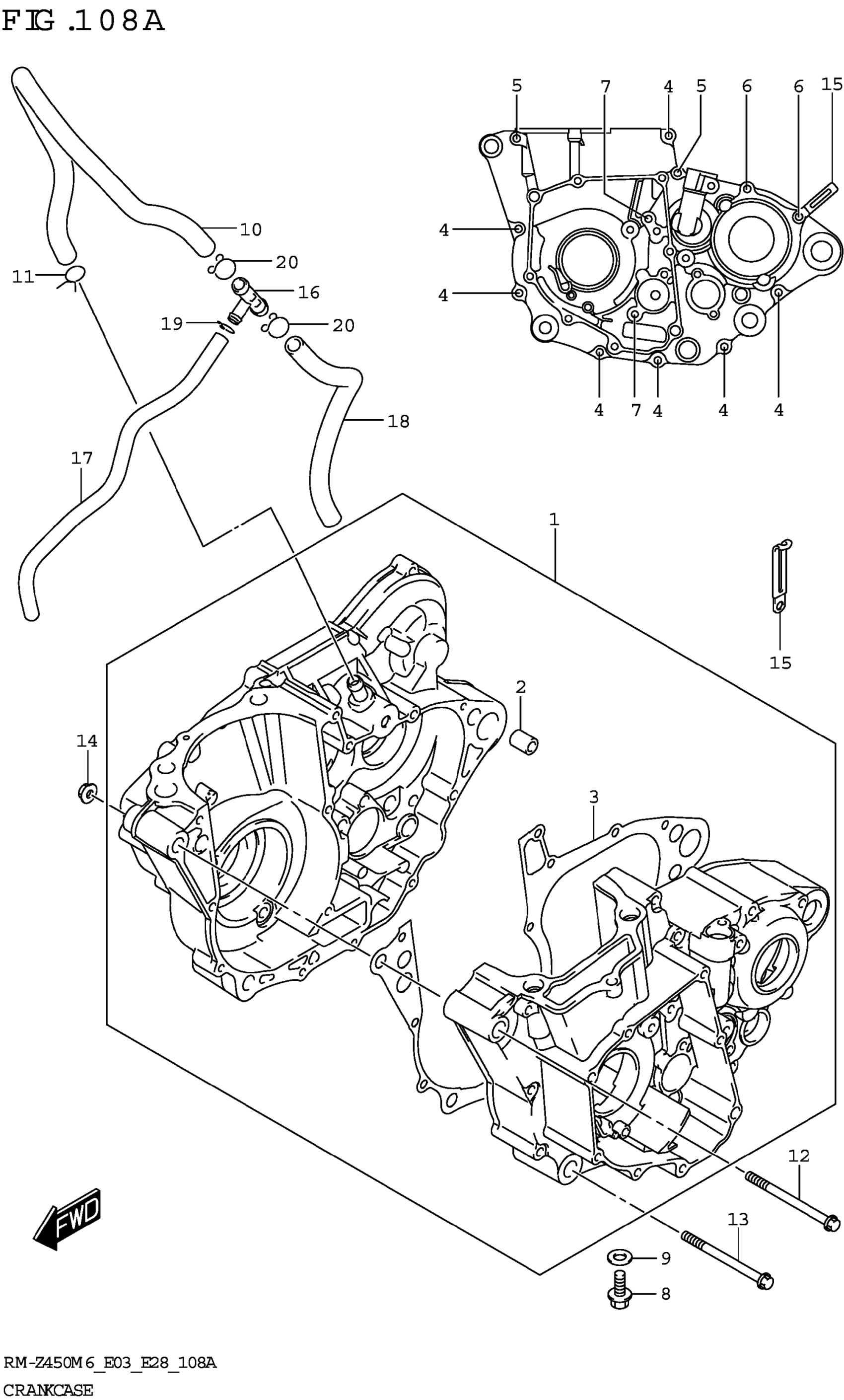

Suzuki RM-Z450M6 (2026) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11301-28890

$781.70

2

PIN (10.4X13X18)

04211-13189

$2.19

3

.GASKET,CRANKCASE

11481-28H00

$21.60

4

.BOLT

01547-0655A

$2.42

5

BOLT

01547-0665A

$2.32

6

BOLT

01547-0675A

$3.28

7

.BOLT

01547-0680A

$3.30

8

BOLT (8X20)

09103-08393

$2.50

9

GASKET (8.2X14X1)

09168-08016

$1.65

10

HOSE,BREATHER NO.1

11332-49H41

Unavailable

11

CLIP

09401-13301

$2.70

12

BOLT (10X130)

09103-10464

$9.92

13

BOLT (10X125)

09103-10446

$11.25

14

NUT

09159-10122

$7.63

15

CLAMP (L:45)

09404-06429

$1.83

16

JOINT,BREATHER HOSE

11331-28H00

$6.52

17

HOSE,BREATHER NO.3

11334-49H01

Unavailable

18

HOSE

09352-90134-260

Unavailable

19

CLIP This part replaces 09401-10410.

09401-10401

$1.49

20

CLIP

09401-13102

$3.15
