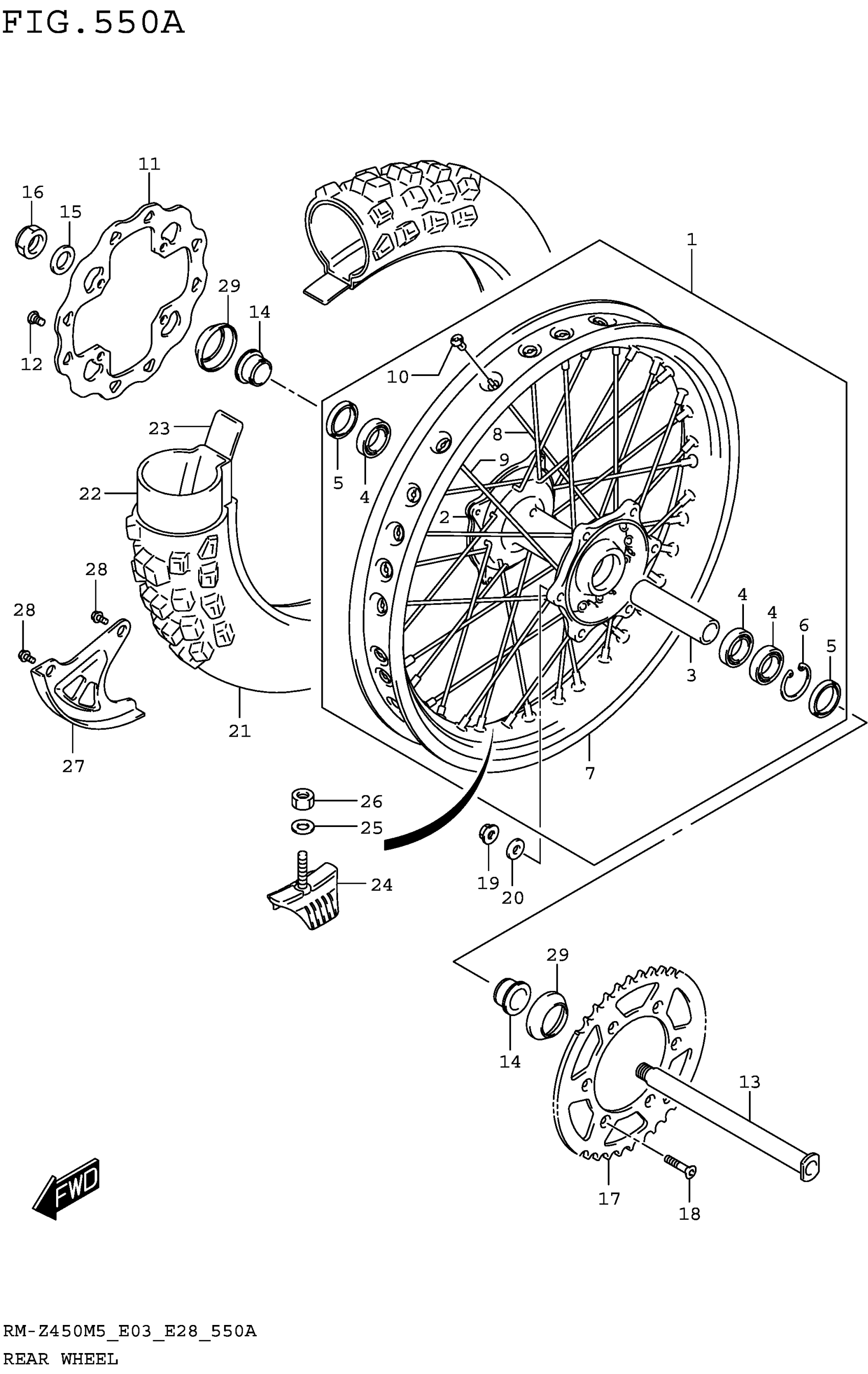

Suzuki RM-Z450M5 (2025) REAR WHEEL Diagram

#

Description
Price

1

WHEEL ASSY,REAR

64100-37K01

$897.65

2

.HUB,REAR

64111-35G30

$304.90

3

.SPACER,RR HUB BEARING

64731-35G01

$31.65

4

.BEARING (25X42X9)

09262-25192

$50.30

5

.SEAL,OIL (32X43X7)

09283-32049

$11.29

6

.CIRCLIP

08331-41429

$2.51

7

.RIM,RR WHEEL (19X2.15)

65311-37K00

$419.72

8

.SPOKE,RR WHEEL INNER

65321-35G10

$4.51

9

.SPOKE,RR WHEEL OUTER

65322-35G10

$4.68

10

.NIPPLE,RR WHEEL

65325-35G10

$4.51

11

DISC,RR BRAKE

69211-28H10

$234.97

12

SCREW (8X15)

09139-08022

$4.83

13

AXLE,RR

64711-35G10

$131.97

14

SPACER,RR AXLE

64751-28H10

$36.82

15

WASHER (22X35X2)

09160-22081

$2.80

16

NUT

64721-13K00

$11.54

17-1

SPROCKET,RR (NT:50)

64511-36E00

$140.88

17-2

SPROCKET,RR (NT:48) | OPT

64511-37E00

$194.80

17-3

SPROCKET,RR (NT:51) | OPT

64511-40261

$172.72

17-4

SPROCKET,RR (NT:49) | OPT

64511-28E00

$134.48

18

BOLT (8X28)

09120-08017

$2.80

19

NUT

09159-08133

$5.00

20

WASHER (8.5X16X1.2)

09160-08082

$1.64

21

TIRE,RR (110/90-19) | BATTLECROSS X30R,BS

65110-37K00

$414.17

22

TUBE ASSY,WHEEL INNER

65200-35G01

$85.10

23

PROTECTOR,WHL INR TUBE

65261-35G01

$8.52

24

STOPPER,BEAD (2.15)

65270-29F00

$61.78

25

WASHER

08322-0108A

$2.18

26

NUT

08310-0008A

$1.86

27

COVER,REAR DISC

69231-37F20

$18.43

28

BOLT (6X12)

09116-06197

$2.80

29

COVER,RR AXLE SPACER

64752-28H00

$8.95
