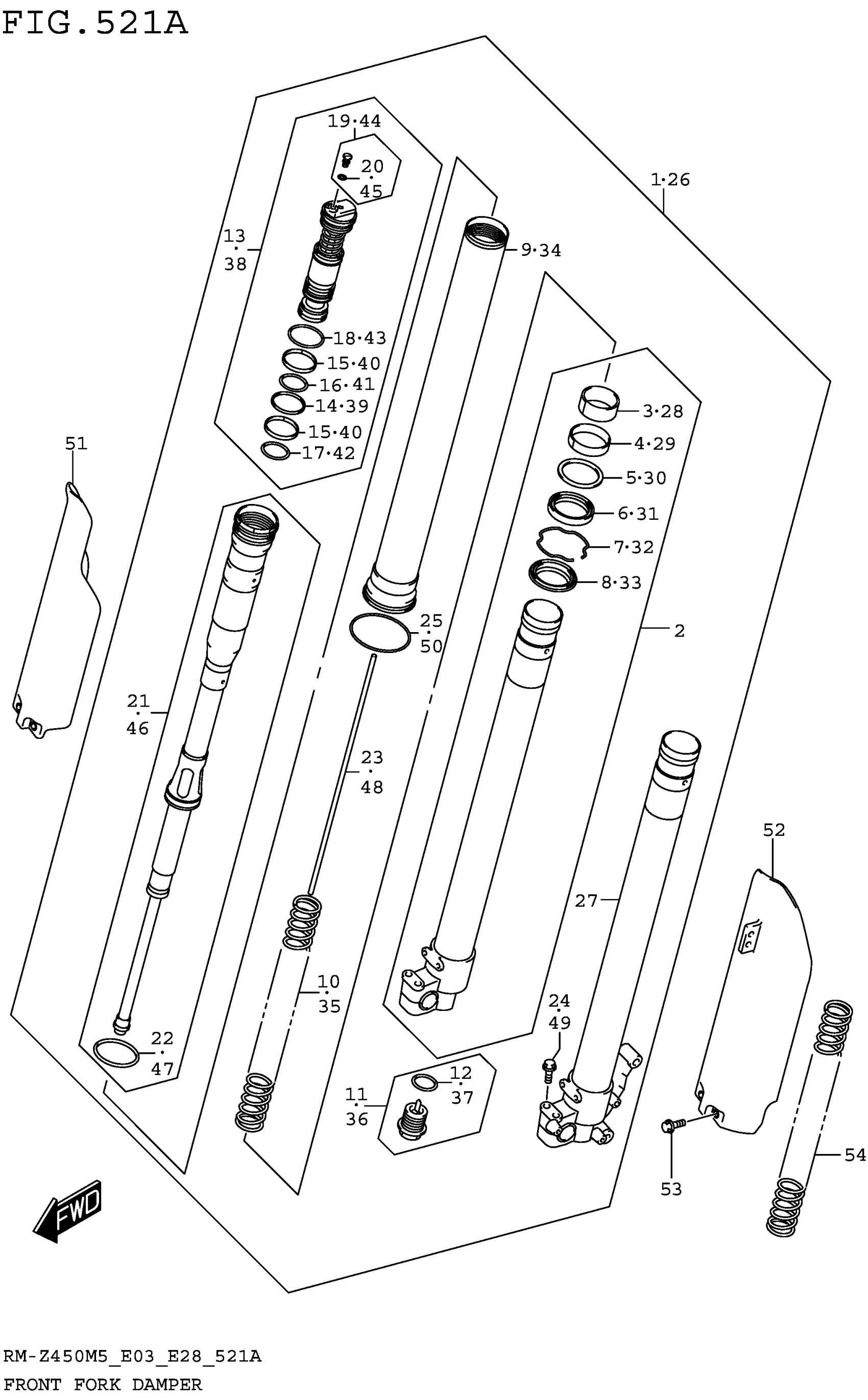

Suzuki RM-Z450M5 (2025) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY,FRONT FORK,R

51103-37K10

$1,371.55

2

.TUBE,INNER,R

51110-37K00

$349.83

3

..BUSH,SLIDE

51127-28H40

$28.48

4

..BUSH,GUIDE

51167-28H40

$27.87

5

..SPACER,SEAL

51158-36E00

$9.37

6

..SEAL,OIL

51153-36E00

$37.22

7

..RING,STOPPER

51156-36E00

$8.43

8

..SEAL,DUST

51173-37K00

$24.36

9

.TUBE,OUTER

51140-37K00

$562.78

10

.SPRING,FRONT (K=5.0N/MM)

51171-37K00

$129.25

11

.BOLT,CENTER

51170-37K00

$104.73

12

..O-RING

51122-28H40

$3.90

13

.BOLT,FORK

51350-37K00

$496.20

14

..PISTON-RING

51124-28H40

$5.05

15

..BUSH C,SLIDE

51123-28H40

$13.60

16

..O-RING

51174-28H40

$4.72

17

..O-RING

51175-28H40

$5.02

18

..O-RING

51187-47H00

$6.93

19

..BOLT,PLUG

51357-36F20

$14.37

20

...O-RING

51358-28E30

$4.28

21

.DAMPER

51190-37K00

$827.38

22

..O-RING

51118-28H30

$4.85

23

.ROD,PUSH

51191-37K00

$13.60

24

BOLT

51328-37F80

$7.25

25

.RING,STOPPER

51211-28H40

$14.08

26

DAMPER ASSY,FRONT FORK,L

51104-37K10

$1,371.55

27

.TUBE,INNER,L

51120-37K00

$343.35

28

..BUSH,SLIDE

51127-28H40

$28.48

29

..BUSH,GUIDE

51167-28H40

$27.87

30

..SPACER,SEAL

51158-36E00

$9.37

31

..SEAL,OIL

51153-36E00

$37.22

32

..RING,STOPPER

51156-36E00

$8.43

33

..SEAL,DUST

51173-37K00

$24.36

34

.TUBE,OUTER

51140-37K00

$562.78

35

.SPRING,FRONT (K=5.0N/MM)

51171-37K00

$129.25

36

.BOLT,CENTER

51170-37K00

$104.73

37

..O-RING

51122-28H40

$3.90

38

.BOLT,FORK

51350-37K00

$496.20

39

..PISTON-RING

51124-28H40

$5.05

40

..BUSH C,SLIDE

51123-28H40

$13.60

41

..O-RING

51174-28H40

$4.72

42

..O-RING

51175-28H40

$5.02

43

..O-RING

51187-47H00

$6.93

44

..BOLT,PLUG

51357-36F20

$14.37

45

...O-RING

51358-28E30

$4.28

46

.DAMPER

51190-37K00

$827.38

47

..O-RING

51118-28H30

$4.85

48

.ROD,PUSH

51191-37K00

$13.60

49

BOLT

51328-37F80

$7.25

50

.RING,STOPPER

51211-28H40

$14.08

51

PROTECTOR,FRONT FORK,R

51501-28H60

$58.07

52

PROTECTOR,FRONT FORK,L

51510-28H70

$103.73

53

BOLT (6X10)

09111-06098

$2.92

54-1

.SPRING,FRONT (K=5.0N/MM) | OPT

51171-37K00

$129.25

54-2

SPRING,FRONT (K=4.8N/MM) | OPT

51171-37K10

$129.25

54-3

SPRING,FRONT (K=5.2N/MM) | OPT

51171-37K20

$129.25
