Description

Price

1

CYLINDER ASSY,REAR MASTER

69600-37K00

$118.52

2

.PISTON/CUP SET

69600-35812

$35.35

3

.BOOT

69691-00A00

$5.30

4

.YOKE

69692-37K00

$12.80

5

.ROD,PUSH

69670-37K00

$21.20

6

.NUT

51212-77500

$7.05

7

.CAP

69669-28H00

$15.33

8

.DIAPHRAGM

69667-37F20

$16.18

9

.SCREW

69689-37F30

$3.65

10

.SEPARATOR

59748-36E00

$9.37

11

.RING

69744-36E00

$4.02

12

SCREW (6X16)

09139-06139

$3.23

13

HOSE,REAR BRAKE

69480-37K01

$62.03

14

UNION (10X1.25X22)

09360-10065

$8.92

15

WASHER (10X15X1.5)

09161-10009

$1.84

16

GUIDE,RR BRAKE HOSE

61196-37K00

$3.65

17

SCREW This part replaces 02142-0510A.

02142-0510B

$1.78

18

CLAMP,REAR BRAKE HOSE

69268-37K00

$4.60

19

BOLT

01550-0510A

$2.43

20

PIN (8X20)

09200-08048

$2.92

21

WASHER (8.5X14X1.6)

09160-08090

$2.39

22

PIN

04111-2015A

$1.49

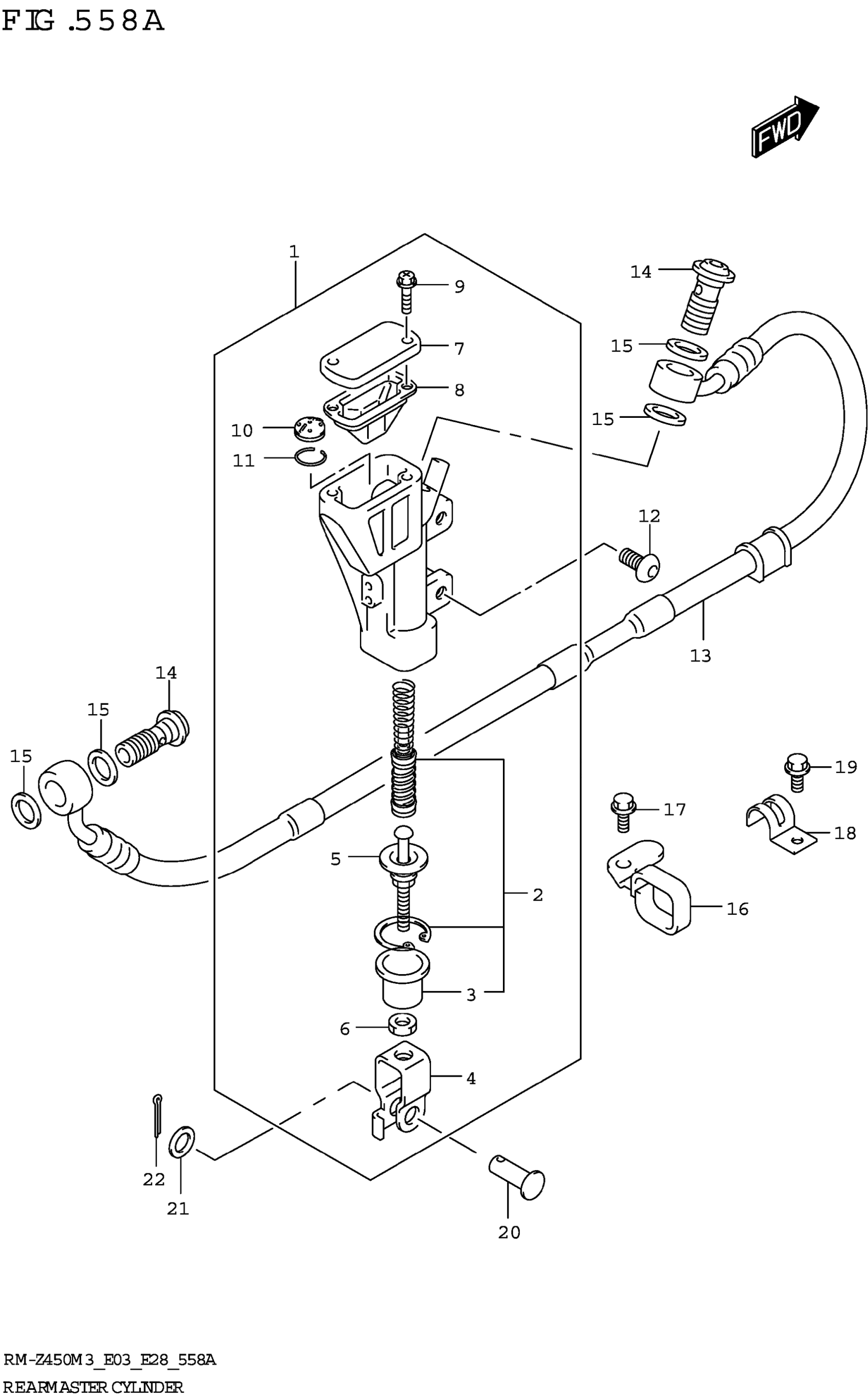

Suzuki RM-Z450M3 (2023) REAR MASTER CYLINDER Diagram
