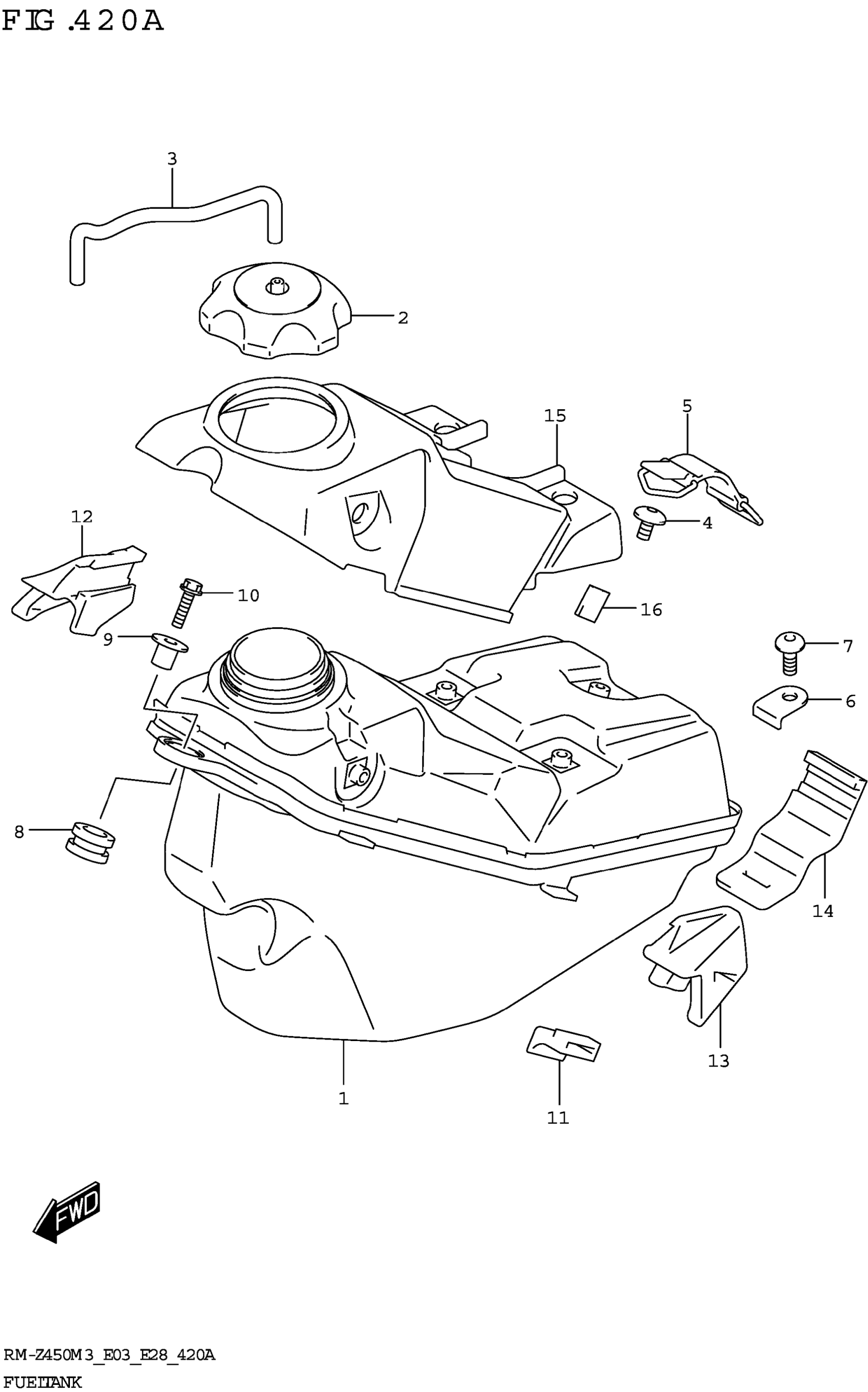

Suzuki RM-Z450M3 (2023) FUEL TANK Diagram

#

Description
Price

1

TANK,FUEL

44110-37K00

$1,236.77

2

CAP ASSY,FUEL TANK FILLER

44200-37K00

$38.70

3

HOSE (5X8.2X350)

09352-50005-350

$7.35

4

BOLT (6X12)

09106-06117

$5.10

5

BAND,FUEL TANK REAR

44560-37K00

$15.23

6

PLATE,FUEL TANK BAND

41433-37K00

Unavailable

7

SCREW (6X16)

09139-06139

$3.23

8

CUSHION,FUEL TANK FRONT

44541-37K00

$8.27

9

SPACER,FUEL TANK FRONT

44134-37K00

$6.75

10

BOLT

01547-0630A

$2.32

11

CUSHION,TANK SIDE FR

44545-37K00

$7.75

12

CUSHION,FUEL TANK SIDE,R

44543-37K00

$15.37

13

CUSHION,FUEL TANK SIDE,L

44544-37K00

$15.37

14

CUSHION,FUEL TANK REAR

44542-37K00

$15.37

15

COVER,FUEL TANK (BLUE)

44291-37K00-QLD

$46.08

16

CUSHION (20X30X8)

94422-06G00

$5.82
