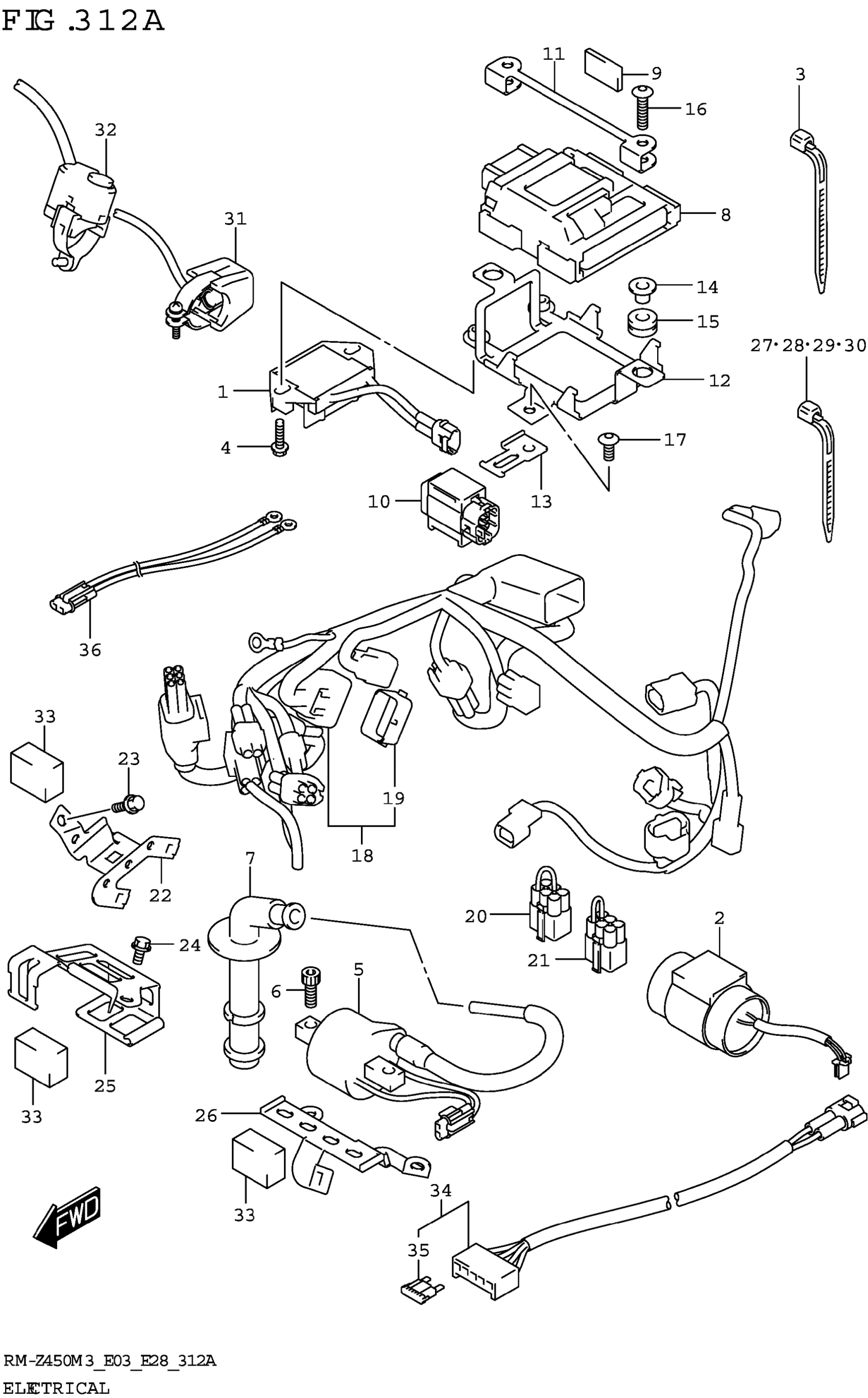

Suzuki RM-Z450M3 (2023) ELECTRICAL (E28) Diagram

#

Description
Price

1

RECTIFIER ASSY

32800-28H00

$235.75

2

CONDENSER ASSY

33640-28H00

$157.50

3

CLAMP (L:190)

09407-19401

$3.05

4

BOLT

01547-0620A

$2.03

5

COIL ASSY,IGNITION

33410-28H00

$98.96

6

BOLT

09106-06141

$2.97

7

CAP ASSY,SPARK PLUG

33510-28H00

$59.80

8

CONTROL UNIT,FI

32920-37K20

$441.35

9

CUSHION

32980-37K00

$3.85

10

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

11

BRACKET,FI CONTROL UNIT UPPER

32931-37K00

$38.22

12

BRACKET,FI CONTROL UNIT LOWER

32932-37K00

$62.30

13

BRACKET,FUEL CUT SENSOR

33961-37K00

$15.18

14

SPACER (6.2X8.4X10.9)

09180-06331

$4.77

15

CUSHION (8X18X10)

09320-08501

$3.23

16

BOLT (6X25)

09139-06196

$2.28

17

SCREW (6X12)

09139-06215

$2.72

18

HARNESS,WIRING

36610-37K10

$295.48

19

.CAP,TS

36852-46K00

Unavailable

20

WIRE,SHORT

36852-28H01

$13.57

21

WIRE,SHORT

36852-49H01

$11.48

22

BRACKET,COUPLER

36670-37K10

$19.55

23

BOLT

01547-0610A

$2.45

24

BOLT

01547-0612A

$2.03

25

BRACKET,COUPLER

36672-37K00

$13.87

26

BRACKET,COUPLER

36672-37K30

$13.02

27

CLAMP (L:95)

09407-11401

$2.63

28

CLAMP (L:100)

09407-10404

$2.90

29

CLAMP (L:125)

09407-14403

$2.26

30

CLAMP (L:170)

09407-17403

$4.91

31

SWITCH ASSY,ENGINE STOP

37820-36E00

$25.46

32

SWITCH ASSY,LAUNCH CONTROL

37820-37K00

$133.07

33

CUSHION,HARNESS WIRING

36652-37K00

$2.42

34

WIRE,BATTERY

36890-28H00

$47.33

35

.FUSE (10A)

09481-10101

$2.07

36

WIRE,INJECTOR LEAD | OPT

15718-21H00

$43.73
