2022 Suzuki RM-Z450M2 Transmission Diagram

← All diagrams

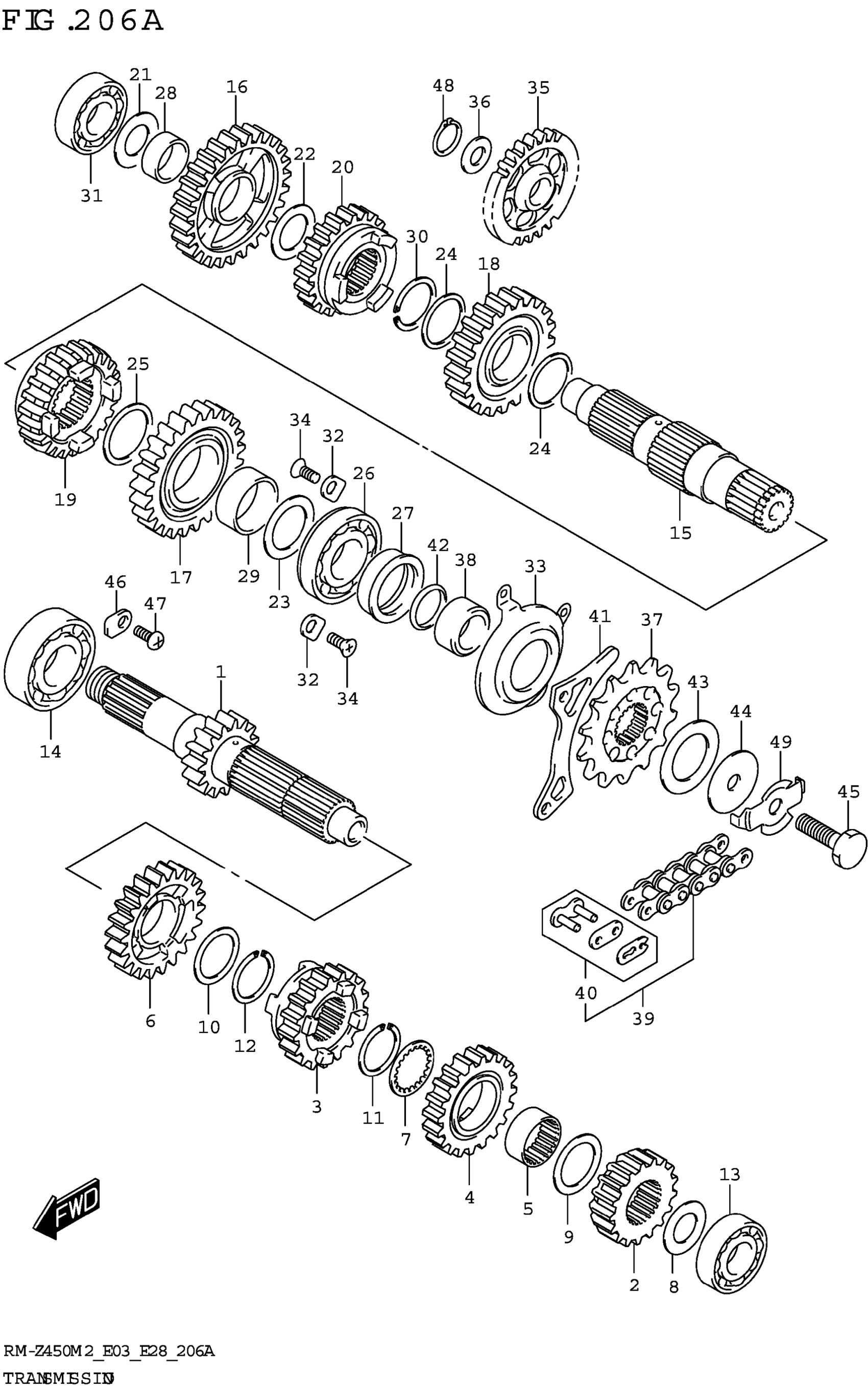

Find the part on the Transmission diagram for your 2022 Suzuki RM-Z450M2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki RM-Z450M2 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT,COUNTER (NT:15)

24120-28H21

1
Out of stock

2

GEAR,2ND DRIVE (NT:17)

24221-28H20

1
Out of stock

3

GEAR,3RD DRIVE (NT:17)

24231-28H30

1
Out of stock

4

GEAR,4TH DRIVE (NT:20)

24241-28H20

1
Out of stock

5

BUSH,4TH DRIVE GEAR

24242-28H00

1
Out of stock

6

GEAR,5TH DRIVE (NT:22)

24251-28H10

1
Out of stock

7

WASHER (25X31X1.0)

09167-25026

1
Out of stock

8

SHIM (17X30X1)

09181-17223

1
Out of stock

9

WASHER, 5TH DRIVE This part replaces 09181-25059.

09181-25167

1
Out of stock

10

SHIM (25X32X1)

09181-25139

1
Out of stock

11

CIRCLIP

09380-25010

1
Out of stock

12

CIRCLIP

09380-25010

1
Out of stock

13

BEARING

08123-6203A

1

$27.67

In stock

14

BEARING (25X52X15)

08143-62057

1
Out of stock

15

SHAFT,DRIVE

24131-28H20

1
Out of stock

16

GEAR,1ST DRIVEN (NT:27)

24311-28H10

1
Out of stock

17

GEAR,2ND DRIVEN (NT:25)

24321-28H10

1
Out of stock

18

GEAR,3RD DRIVEN (NT:21)

24331-28H30

1
Out of stock

19

GEAR,4TH DRIVEN (NT:21)

24341-28H20

1
Out of stock

20

GEAR,5TH DRIVEN (NT:20)

24351-28H30

1
Out of stock

21

SHIM (17X30X1)

09181-17223

1
Out of stock

22

SHIM (20X30X1)

09181-20195

1
Out of stock

23

SHIM (24X34X1)

09181-24005

1
Out of stock

24

SHIM (25X30X1)

09181-25111

2
Out of stock

25

SHIM (27X33X1)

09181-27015

1
Out of stock

26

BEARING (24X56X14)

09262-24001

1
Out of stock

27

SEAL,OIL (31X40X8.5)

09289-31003

1
Out of stock

28

BUSH (20X24X10)

09300-20037

1
Out of stock

29

BUSH,2ND DRIVEN GEAR

24322-28H00

1
Out of stock

30

CIRCLIP

09380-25010

1
Out of stock

31

BEARING

08123-6203A

1

$27.67

In stock

32

RETAINER

24741-20A00

2
Out of stock

33

RETAINER,DRIVE SHAFT OIL SEAL

24751-28H00

1
Out of stock

34

SCREW (6X12)

09126-06011

2
Out of stock

35

GEAR,KICK STARTER IDLE (NT:27

26260-28H00

1
Out of stock

36

SHIM (17X24X0.5)

09181-17130

1
Out of stock

37

SPROCKET,ENGINE (NT:13)

27511-28H20

1
Out of stock

38

SPACER,ENGINE SPROCKET

27531-35G01

1
Out of stock

39

CHAIN ASSY,DRIVE (DID520DMA2K

27600-28H00-114

1
Out of stock

40

.JOINT SET,CHAIN (DID)

27620-28H00

1
Out of stock

41

PLATE,FRONT CHAIN GUIDE

27641-28H00

1
Out of stock

42

D-RING

27515-28H00

1
Out of stock

43

WASHER,ENGINE SPROCKET WAVE

27514-49H00

1
Out of stock

44

WASHER,ENGINE SPROCKET

27513-49H00

1
Out of stock

45

BOLT,ENGINE SPROCKET

27517-28H00

1
Out of stock

46

RETAINER

24741-21A00

1
Out of stock

47

SCREW (6X12)

09125-06122

1
Out of stock

48

CIRCLIP

08331-31179

1
Out of stock

49

WASHER,ENG SPROCKET BOLT LOCK

27516-28H00

1
Out of stock
