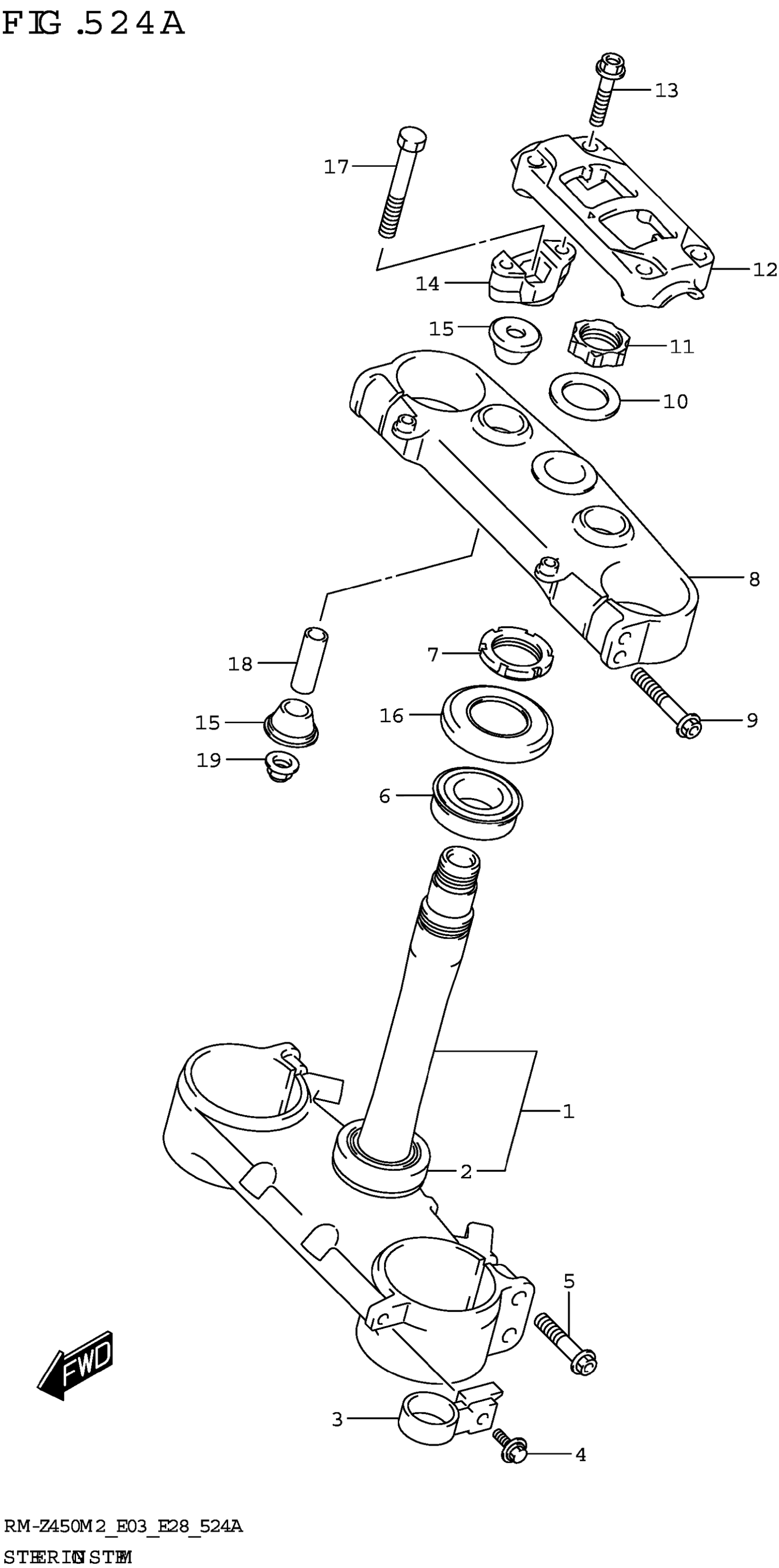

Suzuki RM-Z450M2 (2022) STEERING STEM Diagram

#

Description
Price

1

STEM,STEERING

51410-37K21

$543.67

2

.BEARING (30X52X16)

09265-30035

$42.15

3

CLIP

58621-49H40

$8.87

4

BOLT (6X16)

09116-06200

$4.03

5

BOLT

51328-37F80

$6.64

6

.BEARING (30X52X16)

09265-30035

$42.15

7

NUT,STEERING This part replaces 51631-37K00.

51631-37K10

$33.22

8

BRACKET,UPPER

51311-37K20

$400.53

9

BOLT

51328-37F80

$6.64

10

WASHER,STEM HEAD

51356-29E00

$20.30

11

NUT,STEM HEAD

51353-37F70

$45.53

12

HOLDER,HANDLE

56211-10H10

$96.27

13

BOLT

51321-37F90

$8.21

14

HOLDER,HANDLE,LOWER

56221-28H01

$130.52

15

CUSHION,RUBBER

56241-10H11

$49.52

16

COVER,STEERING UPPER

51643-37K00

$27.28

17

BOLT,HANDLE HOLDER

56321-28H00

$14.75

18

SPACER

56243-10H11

$13.37

19

NUT This part replaces 08319-31108.

08319-31107

$2.73
