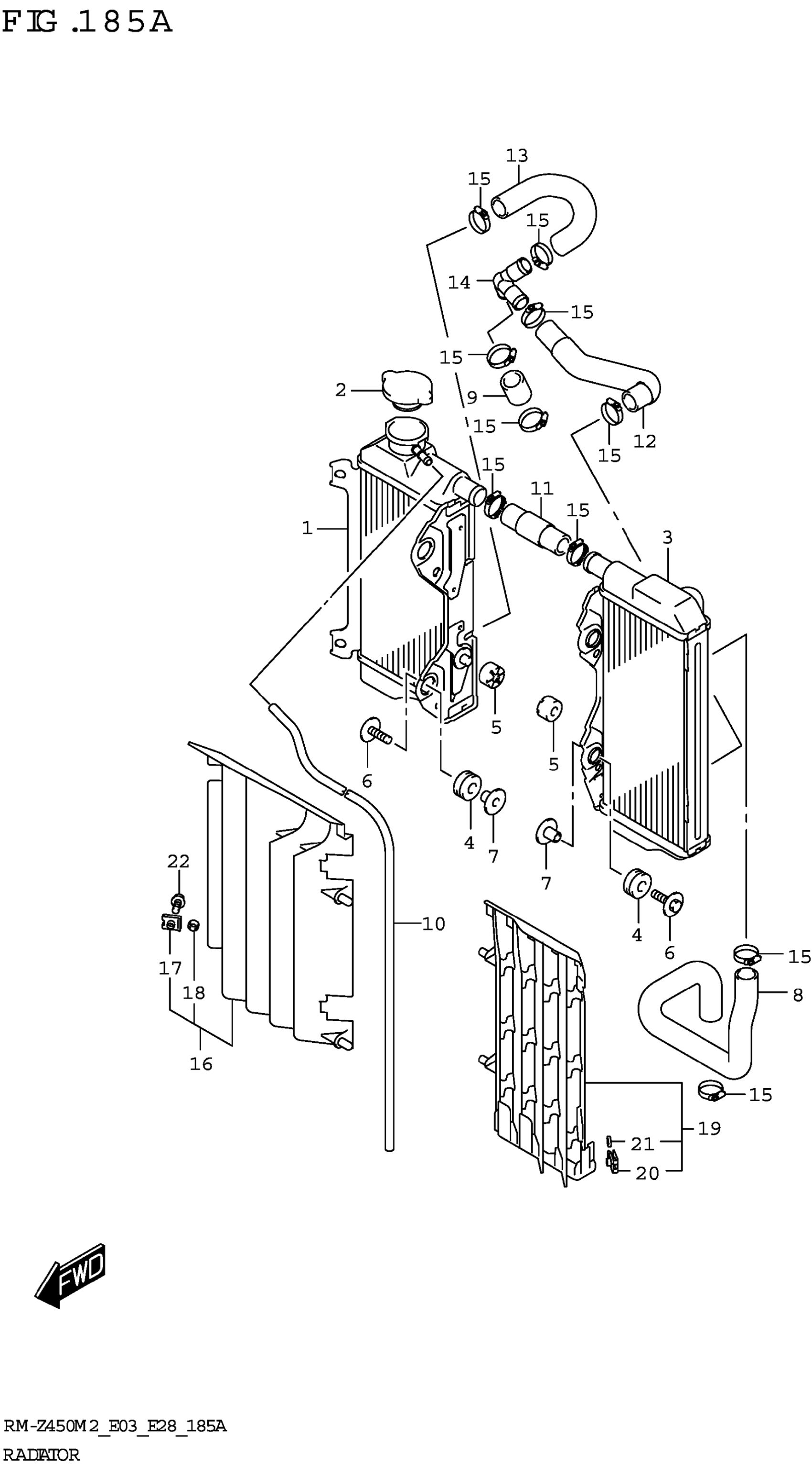

Suzuki RM-Z450M2 (2022) RADIATOR Diagram

#

Description
Price

1

RADIATOR,WATER,R

17710-37K01

$442.77

2

CAP,RADIATOR (1.1)

17730-14G00

$39.21

3

RADIATOR,WATER,L

17720-37K01

$504.17

4

CUSHION,RADIATOR SUPPORT

17787-19A10

$5.62

5

CUSHION,RDTR

17787-37K00

$7.88

6

BOLT (6X25)

09116-06186

$2.66

7

SPACER (6.5X10.5X14.1)

09180-06243

$4.92

8

HOSE,RADIATOR INLET

17851-37K01

$31.73

9

HOSE,RADIATOR OUTLET

17852-37K00

$9.77

10

HOSE (5X8X2000) This part replaces 09351-50801-00A.

09351-50803-00B

$8.21

11

HOSE,RADIATOR JOINT UPPER

17853-37K00

$16.87

12

HOSE,RADIATOR JOINT LOWER NO.

17854-37K00

$34.88

13

HOSE,RADIATOR JOINT LOWER NO.

17855-37K00

$20.10

14

JOINT,RDTR OUTLET HOSE

17857-37K00

$74.23

15

CLAMP

09402-28513

$6.31

16

LOUVER,RADIATOR,R

17801-37K00

$39.72

17

.NUT

09148-06017

$2.93

18

.SPACER (6.2X10X2.2)

09180-06129

$1.47

19

LOUVER,RADIATOR,L

17802-37K00

$44.50

20

.NUT

09148-06017

$2.93

21

.SPACER (6.2X10X2.2)

09180-06129

$1.47

22

BOLT

01547-0610A

$1.47
